Tractor · 2010Unverified

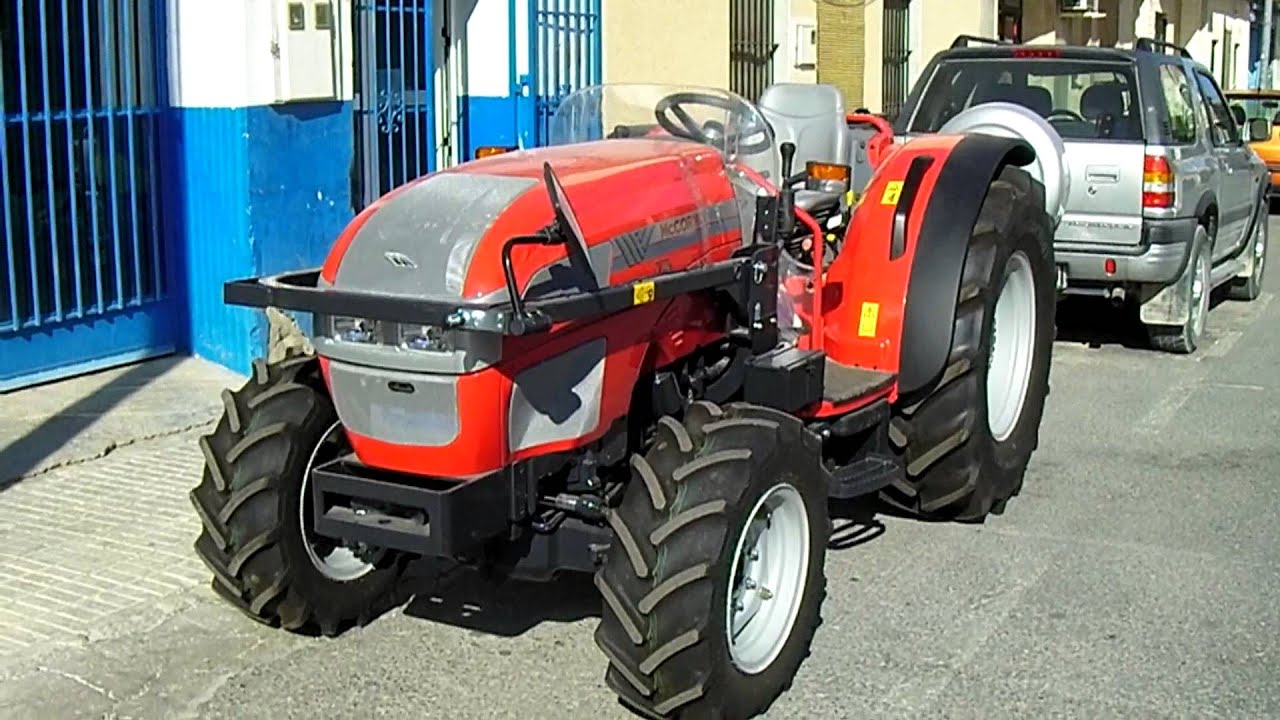

McCormick Intl F90V
McCormick Intl F90V — F Series · 70 hp. Reference specifications; pending source verification.
The McCormick Intl F90V is a tractor with a rated output of 70 hp, placing it in the middle of its class in terms of power. Introduced in 2010, it features a 4-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive through a 24-speed gearbox. The tractor's weight is listed as 2664 kg. It is designed for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
2664 kg
Catalogue coverage
Variants represented
2
Richest spec table
50 rows
Recorded power
70 hp
Recorded weight
2664 kg
Transmissions
24-speed synchro shuttle
Production years
2010-2010
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
F90FnarrowReference
F90GElow-profileReference
F90XLfull sizeReference
F90Nultra-narrowReference
F90VvineyardReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank45.0 LReference
Engine61.9 kWReference
Perkins 1104D-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power61.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque352.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed synchro shuttleReference
TransmissionSpeed FourReference
Typesynchro shuttleReference
Gears24 forward and 12 reverseReference
Clutch279.4mm mechanical dry discReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Valves3 or 4Reference
Pump flow82.1 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
Rear PTO Type540/750/groundReference
Dimensions
Wheelbase213 cmReference
Weight2664 kgReference
Length393 cmReference
Width121 cmReference
Width131 cmReference
Height (ROPS)228 cmReference
Height (cab)234 cmReference
Ground clearance25 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
