Tractor · 2011Unverified

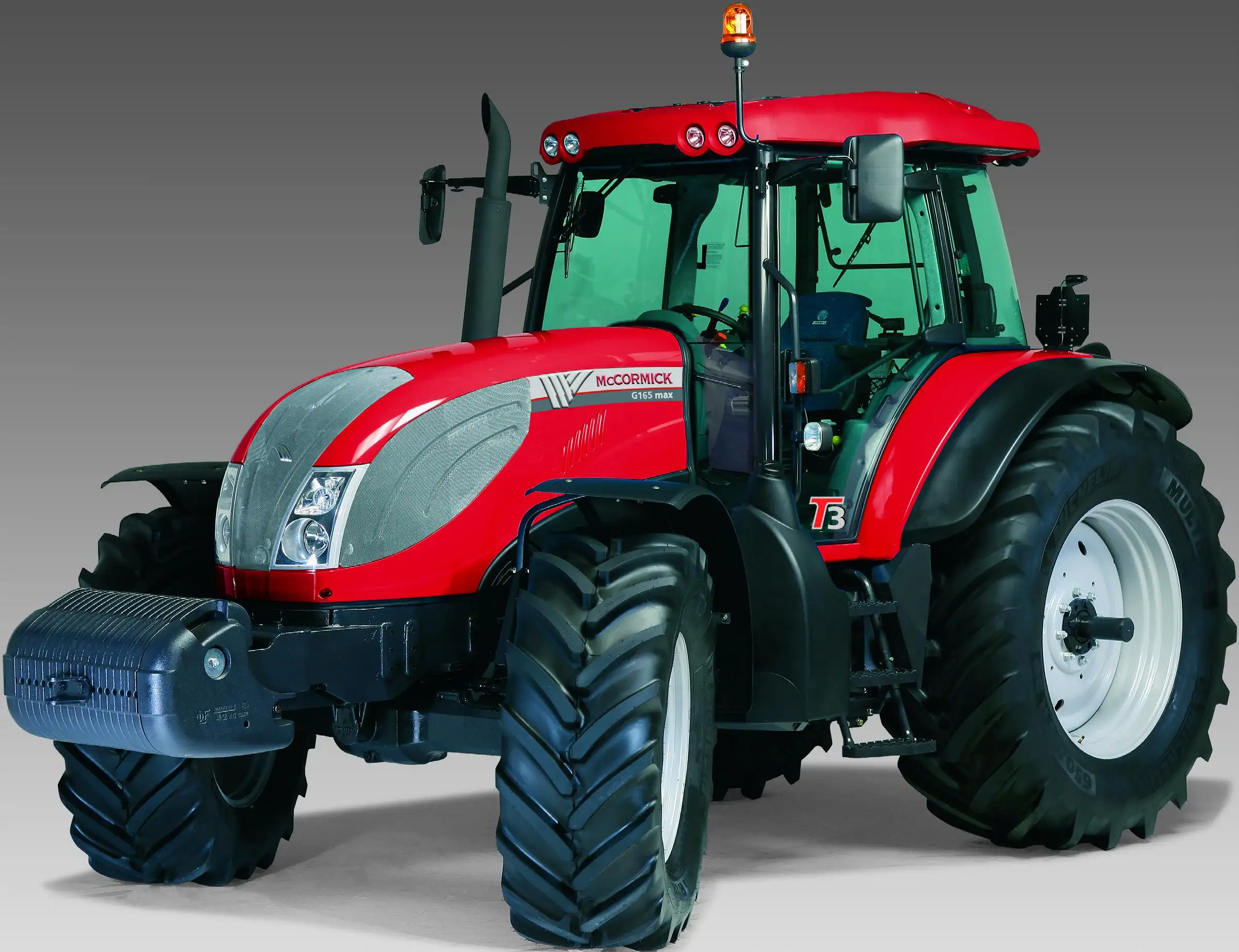

McCormick Intl G145 Max
McCormick Intl G145 Max — G Max Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
5937 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Row-Crop tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
BetaPower 6.7L 6-cyl dieselReference
Fuel tank260.0 LReference
BetaPowerReference
turbocharged air-to-air intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Maximum Power105.1 kWReference
Compression17.5:1Reference
Rated RPM2200Reference
Torque625.1 NmReference
Torque RPM1250Reference
StarterelectricReference
Starter volts12Reference
Transmission
36-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears36 forward and reverseReference
Clutch355mm dry discReference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
Valves3 to 5Reference
Pump flow68.1 lpmReference
Total flow106.0 lpmReference
Rear TypeIII/IIReference
Controlposition controlReference
Rear lift6985 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase279 cmReference
Weight5937 kgReference
Front tire480/65R28Reference
Rear tire600/65R38Reference
Standard tires (ag)Front: 480/65R28. Rear: 600/65R38Reference
Length544 cmReference
Width238 cmReference
Height (ROPS)280 cmReference
Ground clearance54 cmReference
Rear tread165 to 226 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
