Tractor · 2002Unverified

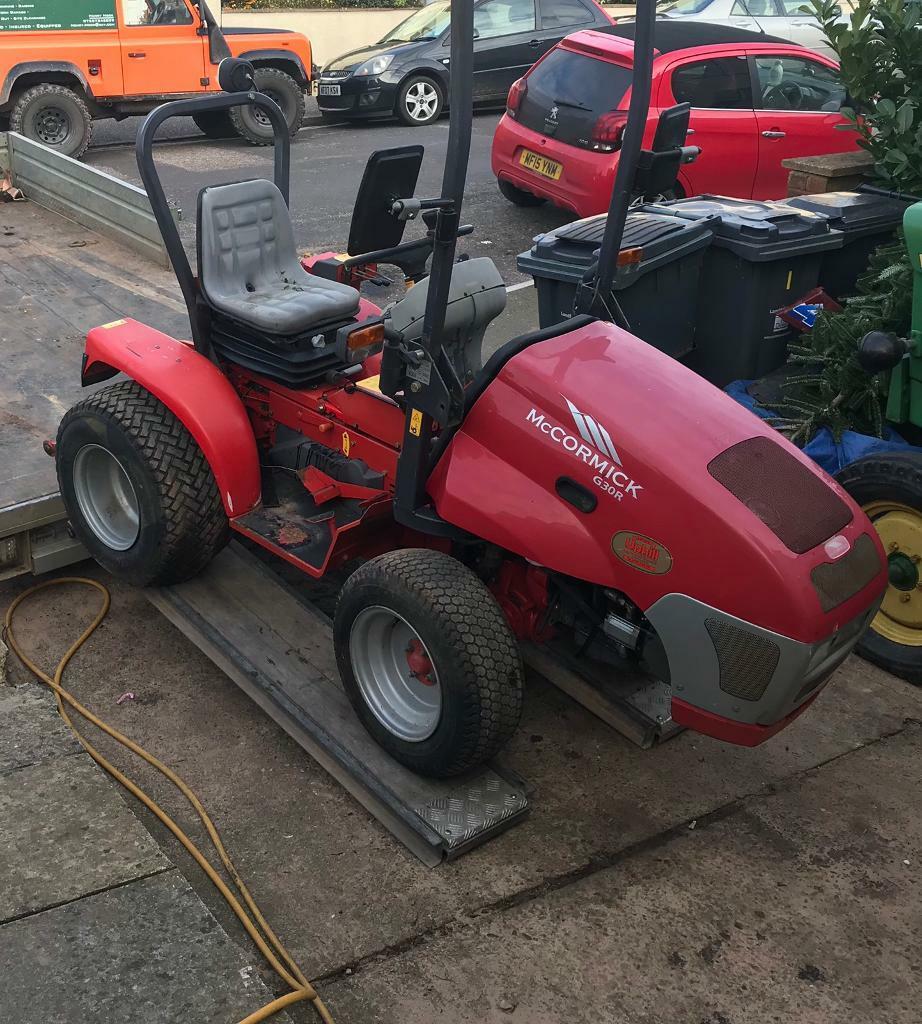

McCormick Intl G30R
McCormick Intl G30R — Valpadana built · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
699 kg
Hover a source tag to verify
Overview
DistributorMcCormick IntlReference
ManufacturerValpadanaReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
SteeringpowerReference
Mechanical drum brakesReference
Two-post mid-mount ROPS. Cab optional.Reference
Engine
Perkins 1.0L 3-cyl dieselReference
Fuel tank26.1 LReference
Engine (net)16.0 kWReference
PerkinsReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke75 x 72 mmReference
Rated Power (net)16.0 kWReference
Air cleanerdryReference
Pre-heatingthermostartReference
Compression23:1Reference
Rated RPM3000Reference
Torque53.0 NmReference
Torque RPM2460Reference
Firing order1-3-2Reference
Starter volts12Reference
Starter power1.2 kWReference
Oil capacity2.2 LReference
Oil change125 hReference
Coolant capacity3.5 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity9.5 LReference
PTO & Hydraulics
Pressure120.0 barReference
Rear valves2Reference
Pump flow11.0 lpmReference
Rear TypeIReference
Rear lift600 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2790Reference
Engine RPM1000@2947Reference
Dimensions
Wheelbase114 cmReference
Weight699 kgReference
Front tire6.5/80-12Reference
Rear tire7.00-12Reference
Ag front6.5/80-12Reference
Ag rear7.00-12Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear26x12.00-12Reference
Length263 cmReference
Width95 cmReference
Height (steering wheel)121 cmReference
Height (ROPS)200 cmReference
Ballasted weight767 kgReference
Clearance (front axle)19 cmReference
Front tread75 to 87 cmReference
Rear tread76 to 92 cmReference
G30R Serial Numbers
Location:Serial number plate on the rear of the tractor, near the hydraulic ports.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
