Tractor · 2011Unverified

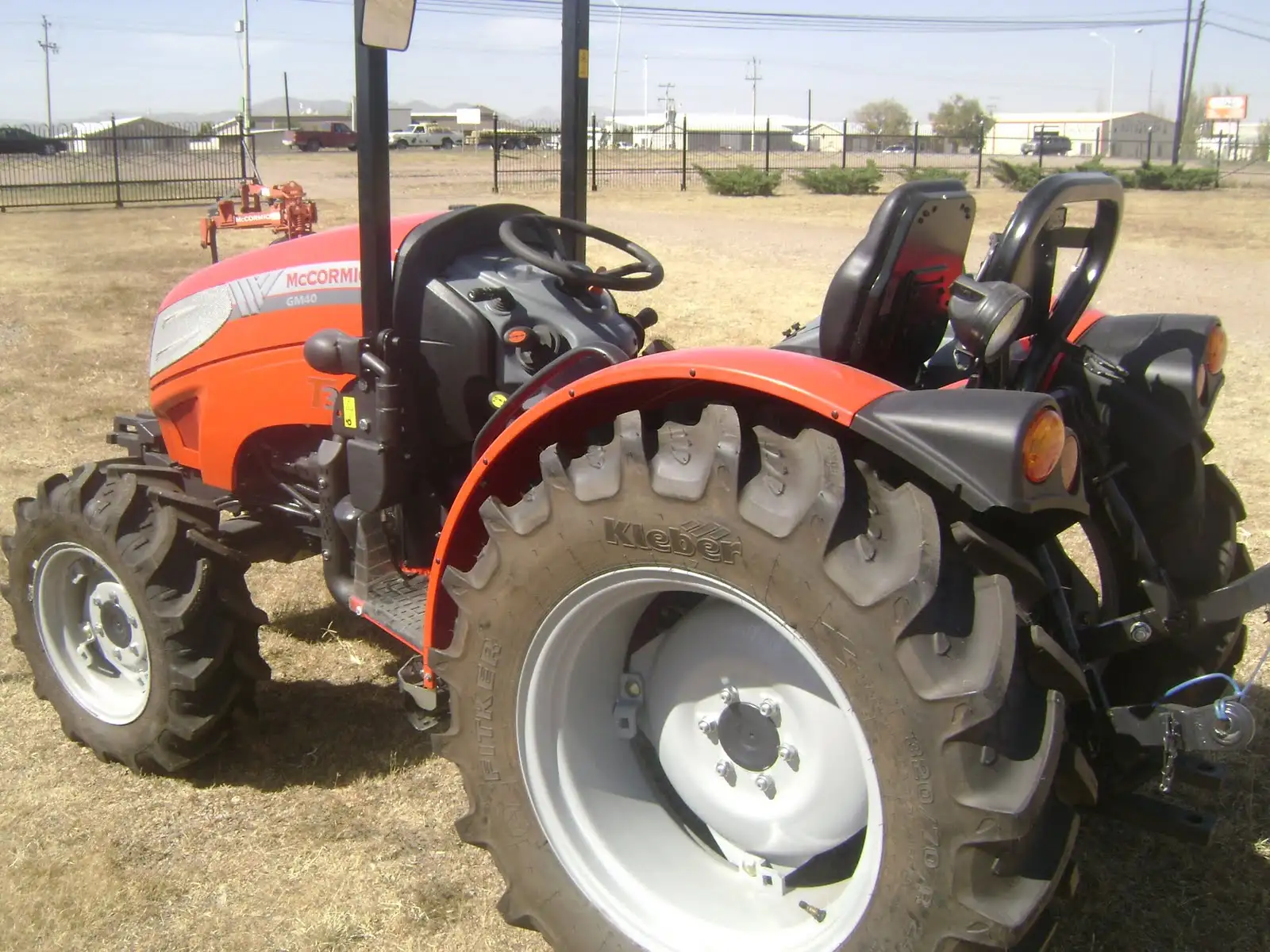

McCormick Intl GM40
McCormick Intl GM40 — GM Series · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
1450 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Compact Utility tractorReference
Four-wheel driveReference
Mechanical wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
Yanmar 1.6L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine26.5 kWReference
Yanmar 3TNV88Reference
dieselReference
3-cylinder 6-valveReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
EmissionsTier IIIReference
Power26.5 kWReference
Fuel systemdirect injectionReference
Compression19:1Reference
Rated RPM2800Reference
Torque108.5 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
16-speed creeperReference
Gears12 forward and reverseReference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)23.9 kWReference
Pressure180.0 barReference
Valves2Reference
SCV flow28.0 lpmReference
Total flow47.7 lpmReference
Rear TypeIReference
Rear lift1200 kgReference
Front HitchINReference
Front lift400 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
Rear PTO Type540/750/groundReference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Dimensions
Wheelbase169 cmReference
Weight1450 kgReference
Front tire200/70R16Reference
Rear tire320/70R20Reference
Ag front200/70R16Reference
Ag rear320/70R20Reference
Length329 cmReference
Width129 cmReference
Ground clearance34 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
McCormick Intl GM40 Height
Hood125 cmReference
ROPS189 cmReference
Cab211 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
