Tractor · 2011Unverified

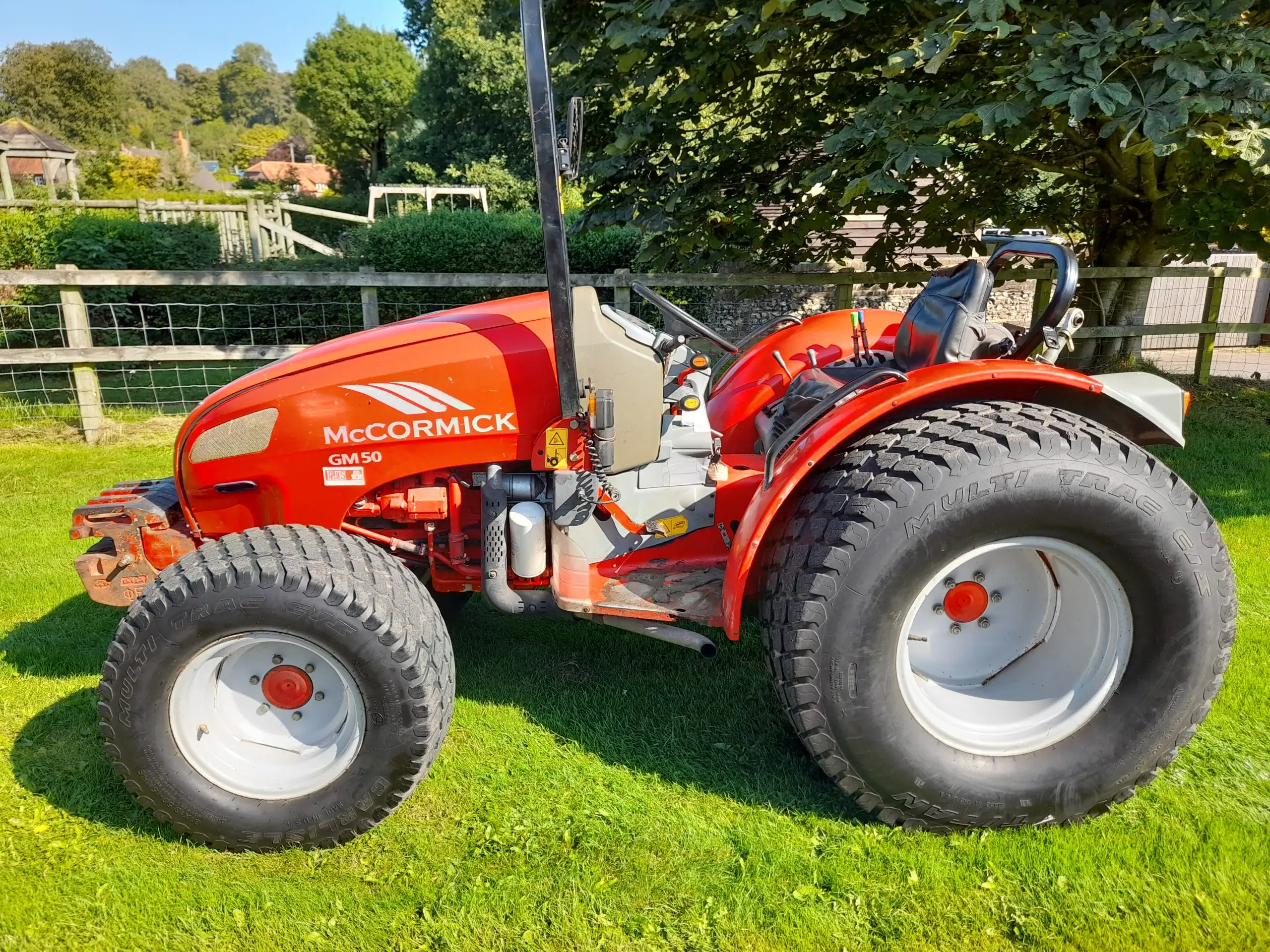

McCormick Intl GM50
McCormick Intl GM50 — GM Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
1450 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Compact Utility tractorReference
Four-wheel driveReference
Mechanical wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
Yanmar 2.2L 4-cyl dieselReference
Engine35.4 kWReference
Yanmar 4TNV88Reference
dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
EmissionsTier IIIReference
Power35.4 kWReference
Fuel systemdirect injectionReference
Compression19:1Reference
Rated RPM2800Reference
Torque141.0 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
16-speed creeperReference
Gears12 forward and reverseReference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)32.1 kWReference
Pressure180.0 barReference
Valves2Reference
SCV flow28.0 lpmReference
Total flow47.7 lpmReference
Rear TypeIReference
Rear lift1200 kgReference
Front HitchINReference
Front lift400 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
Rear PTO Type540/750/groundReference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Dimensions
Wheelbase169 cmReference
Weight1450 kgReference
Front tire280/70R16Reference
Rear tire360/70R24Reference
Ag front280/70R16Reference
Ag rear360/70R24Reference
Length329 cmReference
Width139 cmReference
Ground clearance40 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
McCormick Intl GM50 Height
Hood132 cmReference
ROPS196 cmReference
Cab216 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
