Tractor · 2002Unverified
McCormick Intl GX40
McCormick Intl GX40 — GX Series · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
3175 to 3461 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Variants

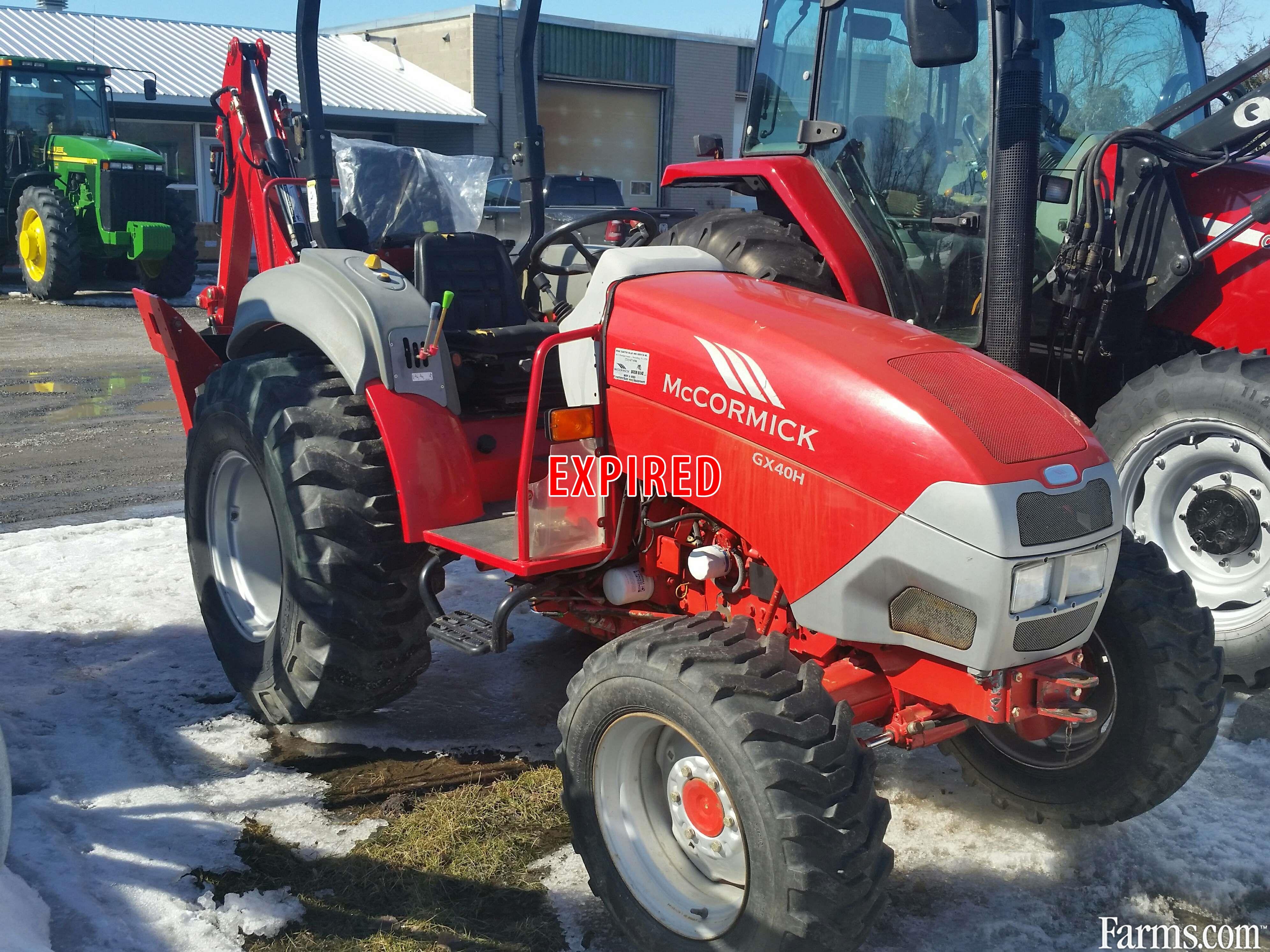

GX40Hhydrostatic transmissionReference
Engine
Yanmar 1.6L 3-cyl dieselReference
Fuel tank50.0 LReference
Engine (gross)28.0 kWReference
Engine (net)25.4 kWReference
YanmarReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
Power (net)25.4 kWReference
Power (gross)28.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdry elementReference
Compression18:1Reference
Rated RPM2800Reference
Torque102.9 NmReference
Torque RPM1800Reference
Starter volts12Reference
Transmission
hydrostaticReference
12-speed synchronized shuttleReference
16-speed synchronized shuttle with creeperReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Clutch225mm mechanical dry discReference
Typesynchronized shuttle with creeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves2 or 3Reference
Pump flow28.0 lpmReference
Total flow39.0 lpmReference
Steering flow11.0 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1200 kgReference
Front HitchINReference
Front lift400 kgReference
Rear PTOliveReference
Shuttle Clutchmechanical dry discReference
Hydro Clutchelectro-hydraulic wet discReference
Rear PTO Type540/750 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type1000Reference
Front PTOoptionalReference
Front PTO Type1000 (1.375)Reference
Dimensions
2WD Wheelbase180 cmReference
4WD Wheelbase182 cmReference
Weight3175 to 3461 poundsReference
Front tire200/70R16Reference
Rear tire320/70R20Reference
Standard tires (ag)Front: 200/70R16. Rear: 320/70R20Reference
Optional tires (ag)Front: 270/70R16. Rear: 340/65R28 (4WD)Reference
Optional tires (ag)Front: 200/70R16. Rear: 360/70R20 (4WD)Reference
Optional tires (ag)Front: 280/70R16. Rear: 360/70R24 (4WD)Reference
Optional tires (ag)Front: 27x8.50-16. Rear: 38x14-20 (4WD)Reference
Optional tires (ag)Front: 8.00-12. Rear: 360/70R20 (2WD)Reference
Optional tires (ag)Front: 5.00-15. Rear: 320/70R20 (2WD)Reference
Optional tires (ag)Front: 7.50-10. Rear: 320/70R20 (2WD)Reference
Optional tires (ag)Front: 6.50-16. Rear: 360/70R24 (2WD)Reference
Length342 cmReference
Width132 cmReference
Height (steering wheel)141 cmReference
Height (ROPS)230 cmReference
Ground clearance34 cmReference
Front tread101 to 130 cmReference
Rear tread100 to 119 cmReference
2WD Shuttle1440 kgReference
4WD Shuttle1520 kgReference
2WD Hydro1490 kgReference
4WD Hydro1569 kgReference
McCormick Intl GX40 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
