Tractor · 2003Unverified

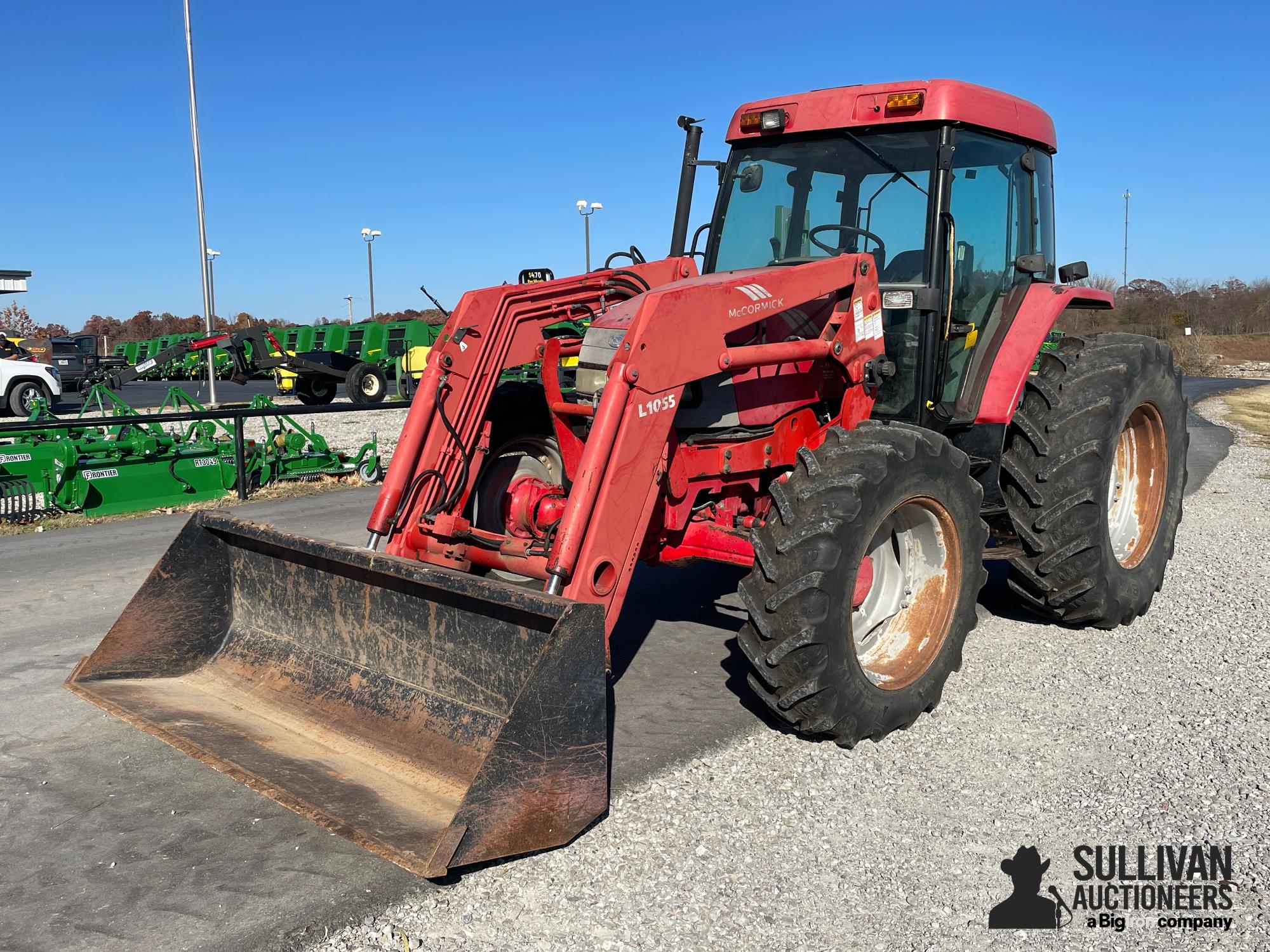

McCormick Intl MC105
McCormick Intl MC105 — MC Series · 83 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
83 hp
Weight
9610 to 11905 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick IntlReference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
ROPS. Cab optionalReference
Engine
Perkins 4.4L 4-cyl dieselReference
Engine76.1 kWReference
Perkins 1104C-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier 2Reference
Power76.1 kWReference
Rated RPM2200Reference
Torque414.9 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
16-speed partial power shiftReference
32-speed partial power shiftReference
Typepartial power shiftReference
Gears16 forward and 12 reverseReference
Four ranges with four power shift gears in each range.Reference
Gears32 forward and 24 reverseReference
Four ranges with four power shift gears in each range plus creeper.Reference
TransmissionAutoSpeedReference
PTO & Hydraulics
PTO (claimed)61.9 kWReference
Hydraulic system74.9 LReference
Typepressure flow compensatedReference
Capacity74.9 LReference
Valves2 to 4Reference
Pump flow109.0 lpmReference
Rear TypeIINReference
Rear lift (at ends)5870 kgReference
Rear lift (at 24"/610mm)3719 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2163Reference
Engine RPM1000@2200Reference
Capacities
Fuel196.8 LReference
Dimensions
Wheelbase240 cmReference
Weight9610 to 11905 poundsReference
Front tire10.0/16Reference
Rear tire18.4/34Reference
2WD Ag front10.0/16Reference
4WD Ag front13.6/28Reference
Ag rear18.4/34Reference
Length429 cmReference
Width195 cmReference
Ground clearance35 cmReference
4359 kgReference
4625 kgReference
4826 kgReference
5400 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Speeds
With 18.4-38 rear tires and 40KPH transmission option.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
