Tractor · 2003Unverified

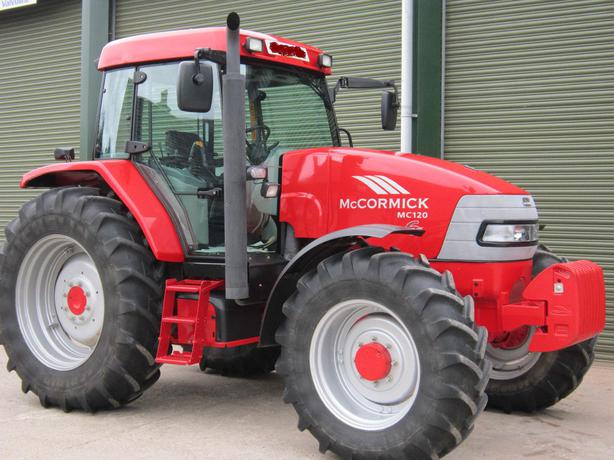

McCormick Intl MC120 Power6

Name: McCormick Intl MC120 Power6
Brand: McCormick Intl

McCormick Intl MC120 Power6 — MC Series · 98 hp. Reference specifications; pending source verification.

The McCormick Intl MC120 Power6 is a tractor with a rated power output of 98 hp, a mid-range figure for its class. It was manufactured between 2003 and 2007, utilising a 6-cylinder turbocharged diesel liquid-cooled engine. This engine is paired with a four-wheel drive system and a powershift transmission. The tractor has an operating weight of 11124 to 12742 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

98 hp

Weight

11124 to 12742 pounds

Catalogue coverage

Variants represented

Richest spec table

81 rows

Recorded power

98 hp

Transmissions

16-speed partial power shift

Production years

2003-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick IntlReference

Utility tractorReference

Built in Doncaster, EnglandReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic wet clutchReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional.Reference

Engine

Perkins 6.0L 6-cyl dieselReference

Engine85.8 kWReference

Perkins 1106Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

EmissionsTier 2Reference

Power85.8 kWReference

Rated RPM2200Reference

Torque485.4 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil capacity30.3 LReference

Oil change500 hReference

Transmission

16-speed partial power shiftReference

32-speed partial power shift with creeperReference

Typepartial power shiftReference

Gears16 forward and 12 reverseReference

Clutchwet discReference

Oil capacity75.0 LReference

Four power shift speeds in four ranges with power shuttle. Available AutoSpeed transmission option with push-button range and power shifting. Available in 30 KPH and 40 KPH gearing.Reference

Typepartial power shift with creeperReference

Gears32 forward and 24 reverseReference

Creeper range option doubles the available speeds in the transmission.Reference

PTO & Hydraulics

PTO (claimed)73.1 kWReference

Hydraulic system74.9 LReference

Typepressure flow compensated (PFC)Reference

Capacity74.9 LReference

Valves2 to 4Reference

Pump flow109.0 lpmReference

SCV flow95.0 lpmReference

Rear TypeIINReference

Controlelectronic lower link draft sensingReference

Rear lift (at ends)5095 kgReference

Rear lift (at ends)5958 kgReference

Rear lift (at 24"/610mm)3719 kgReference

Rear lift (at 24"/610mm)4617 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2163Reference

Engine RPM1000@2200Reference

Capacities

Fuel264.9 LReference

Dimensions

Wheelbase264 cmReference

Weight11124 to 12742 poundsReference

Front tire11.00x16Reference

2WD Rear tire18.4R38Reference

2WD Standard tires (ag)Front: 11.00x16. Rear: 18.4R38Reference

4WD Standard tires (ag)Front: 14.9x28. Rear: 18.4R38Reference

Length477 cmReference

Width195 cmReference

Height280 cmReference

Ground clearance40 cmReference

Front axle2WDReference

Front axleCarraro 4WDReference

Front axleIndependent front suspensionReference

2WD ROPS5045 kgReference

4WD ROPS5285 kgReference

2WD Cab5779 kgReference

4WD Cab5779 kgReference

McCormick Intl MC120 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps95Reference

Battery volts12Reference

Attachment overview

McCormick L150 loaderReference

McCormick L160 loaderReference

McCormick L155 (self-leveling) loaderReference

McCormick L165 (self-leveling) loaderReference

Speeds

With 18.4R34 rear tires and 40 KPH transmission. Reverse speeds are 15% faster than forward in the same gear.Reference

With 18.4R34 rear tires. Reverse speeds are 15% faster than forward in the same gear.Reference
