Tractor · 2003Unverified

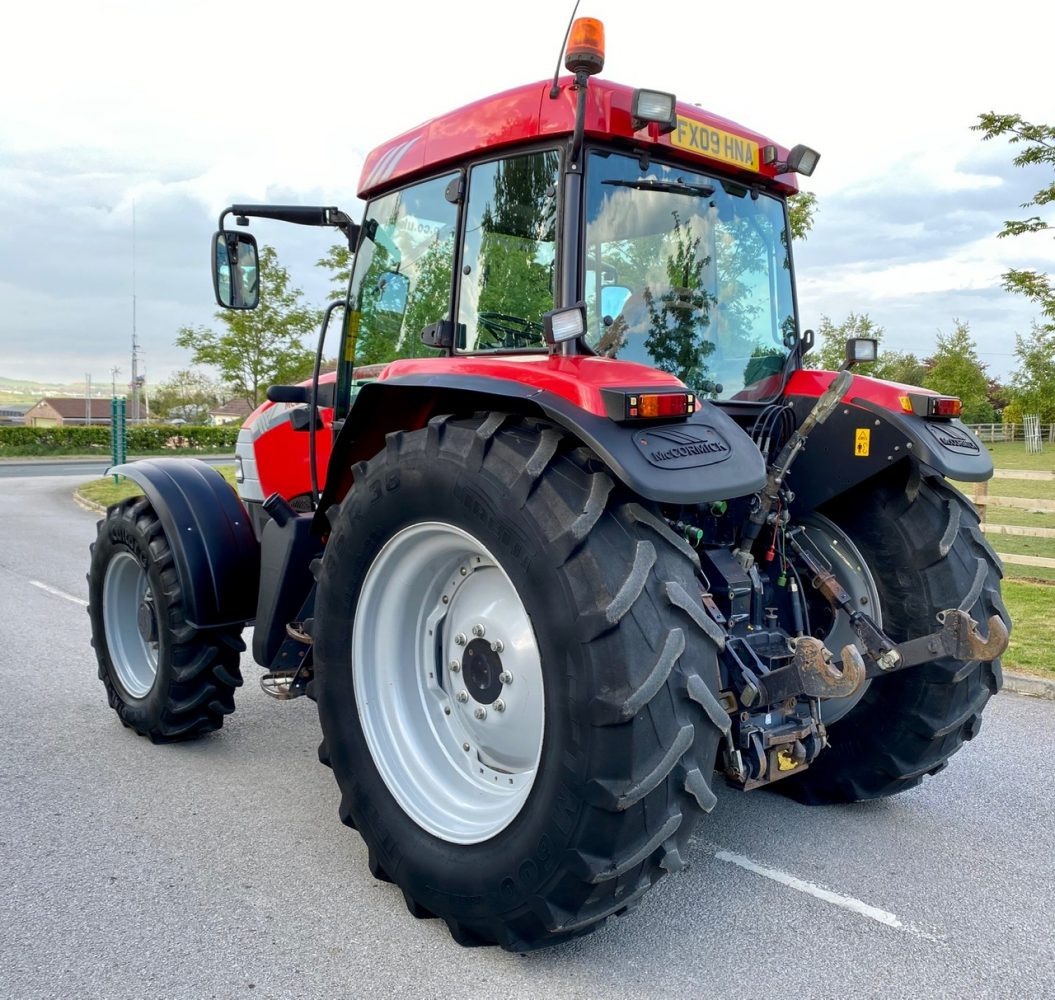

McCormick Intl MC135 Power6
McCormick Intl MC135 Power6 — MC Series · 113 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
113 hp
Weight
11124 to 12742 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick IntlReference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic wet clutchReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine98.4 kWReference
Perkins 1106Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsTier 2Reference
Power98.4 kWReference
Rated RPM2200Reference
Torque553.2 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity30.3 LReference
Oil change500 hReference
Transmission
16-speed partial power shiftReference
32-speed partial power shift with creeperReference
Typepartial power shiftReference
Gears16 forward and 12 reverseReference
Clutchwet discReference
Oil capacity75.0 LReference
Four power shift speeds in four ranges with power shuttle. Available AutoSpeed transmission option with push-button range and power shifting. Available in 30 KPH and 40 KPH gearing.Reference
Typepartial power shift with creeperReference
Gears32 forward and 24 reverseReference
Creeper range option doubles the available speeds in the transmission.Reference
PTO & Hydraulics
PTO (claimed)84.3 kWReference
Hydraulic system74.9 LReference
Typepressure flow compensated (PFC)Reference
Capacity74.9 LReference
Valves2 to 4Reference
Pump flow109.0 lpmReference
SCV flow95.0 lpmReference
Rear TypeIINReference
Controlelectronic lower link draft sensingReference
Rear lift (at ends)5095 kgReference
Rear lift (at ends)5958 kgReference
Rear lift (at 24"/610mm)3719 kgReference
Rear lift (at 24"/610mm)4617 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2163Reference
Engine RPM1000@2200Reference
Capacities
Fuel264.9 LReference
Dimensions
Wheelbase264 cmReference
Weight11124 to 12742 poundsReference
Front tire11.00x16Reference
Rear tire18.4R38 (2WD)Reference
Standard tires (ag)Front: 11.00x16. Rear: 18.4R38 (2WD)Reference
Standard tires (ag)Front: 14.9x28. Rear: 18.4R38 (4WD)Reference
Length477 cmReference
Width195 cmReference
Height280 cmReference
Ground clearance40 cmReference
Front axle2WDReference
Front axleCarraro 4WDReference
Front axleIndependent front suspensionReference
2WD ROPS5045 kgReference
4WD ROPS5285 kgReference
2WD Cab5779 kgReference
4WD Cab5779 kgReference
McCormick Intl MC135 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Attachment overview
McCormick L150 loaderReference
McCormick L160 loaderReference
McCormick L155 (self-leveling) loaderReference
McCormick L165 (self-leveling) loaderReference
Speeds
With 18.4R34 rear tires and 40 KPH transmission. Reverse speeds are 15% faster than forward in the same gear.Reference
With 18.4R34 rear tires. Reverse speeds are 15% faster than forward in the same gear.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
