Tractor · 2009Unverified

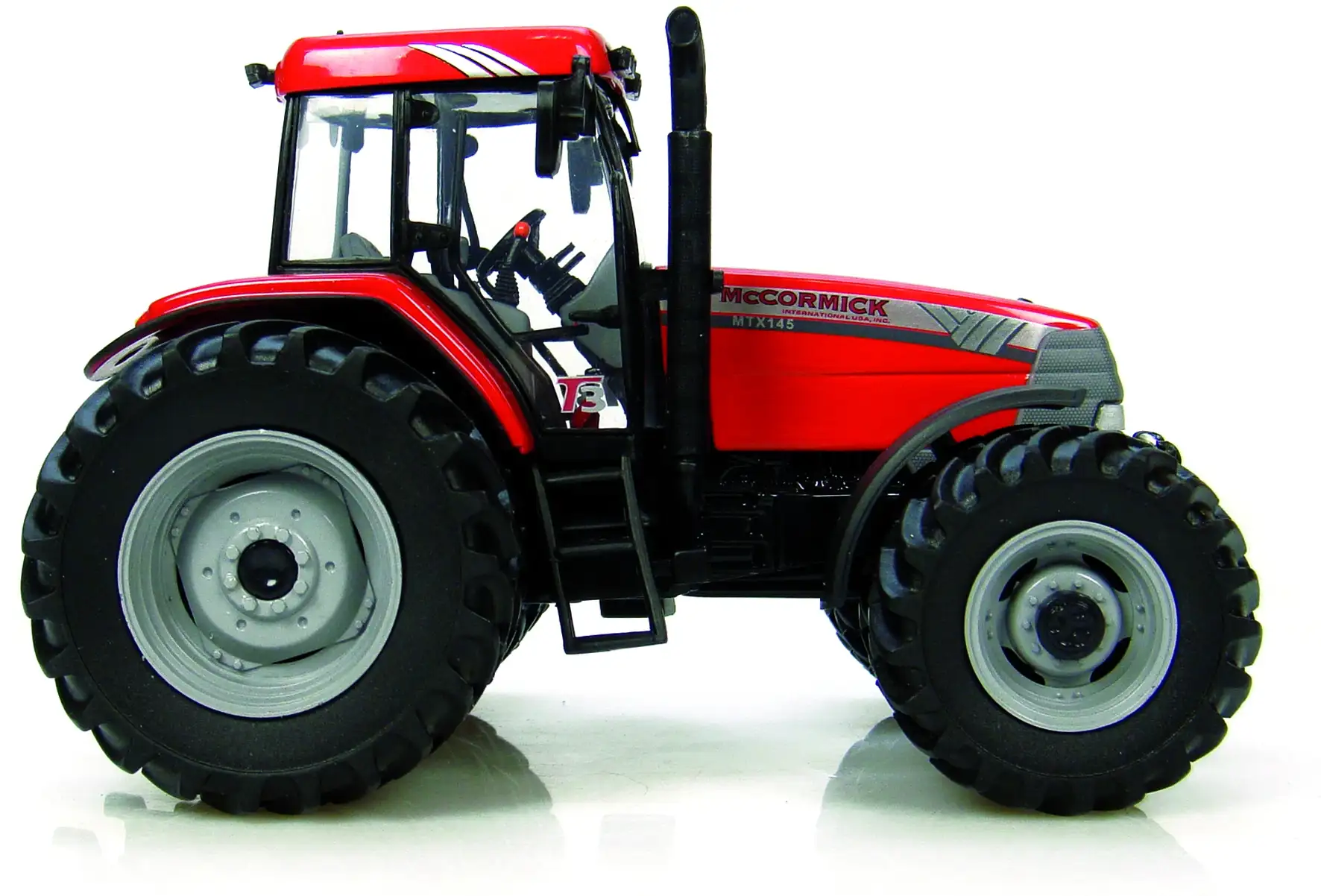

McCormick Intl MTX145
McCormick Intl MTX145 · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
5400 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Four-wheel driveReference
Wet disc brakesReference
Cab standard with heat and air-conditioning.Reference
Engine
6.7L 6-cyl dieselReference
Fuel tank264.9 LReference
Engine99.2 kWReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Power99.2 kWReference
Rated RPM2200Reference
Torque589.9 NmReference
Torque RPM1250Reference
Transmission
16-speed partial power shiftReference
32-speed partial power shiftReference
Typepartial power shiftReference
Gears16 forward and 12 reverseReference
Four ranges with four power shift gears in each range.Reference
Gears32 forward and 24 reverseReference
Four ranges with four power shift gears in each range plus creeper.Reference
Gears16 forward and 13 reverseReference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
Total flow109.8 lpmReference
Rear TypeIIINReference
Rear lift5870 kgReference
Rear lift6602 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase271 cmReference
Weight5400 kgReference
Front tire420/85R28Reference
Rear tire520/85R38Reference
Ag front420/85R28Reference
Ag rear520/85R38Reference
Length515 cmReference
Width228 cmReference
Height (cab)289 cmReference
Shipping weight5400 kgReference
Ground clearance50 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
