Tractor · 2000Unverified

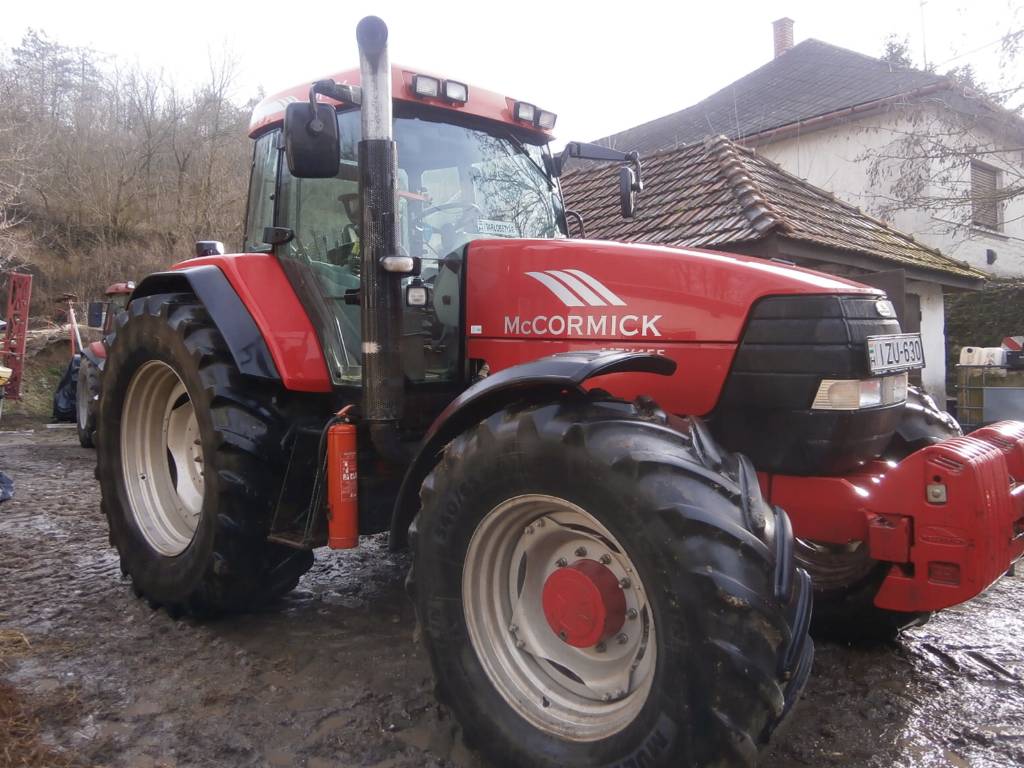

McCormick Intl MTX155
McCormick Intl MTX155 — MTX Series · 141 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
141 hp
Max power
107.4 kW
Weight
14440 to 16285 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Row-Crop tractorReference
Built in Doncaster, EnglandReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank347.1 LReference
Engine119.3 kWReference
Drawbar (claimed)93.2 kWReference
Drawbar (tested)93.5 kWReference
Perkins 1006-60TWIReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power119.3 kWReference
Air cleanerdual paper elementsReference
Compression17.2:1Reference
Rated RPM2200Reference
Torque663.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil change300 hReference
Max power107.4 kWReference
Power at rated engine speed105.3 kWReference
Max power93.5 kWReference
Transmission
16-speed four-speed power shiftReference
32-speed creeperReference
Typefour-speed power shiftReference
Gears16 forward and 12 reverseReference
Clutchelectro-hydraulic wet discReference
Four power shift gears in four ranges.Reference
TypecreeperReference
Gears32 forward and 24 reverseReference
PTO & Hydraulics
PTO (claimed)105.1 kWReference
PTO (tested)107.4 kWReference
Typepressure flow compensatingReference
Pump flow121.1 lpmReference
SCV flow106.0 lpmReference
Rear TypeIIIReference
Controlelectronic lower link draft sensingReference
Rear lift (at 24"/610mm)6935 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1877Reference
Engine RPM1000@2200Reference
Dimensions
Wheelbase284 cmReference
Weight14440 to 16285 poundsReference
Front tire480/70R30Reference
Rear tire20.8R42Reference
Ag front480/70R30Reference
Ag rear20.8R42Reference
Length522 cmReference
Width230 cmReference
Height (cab)294 cmReference
7386 kgReference
Shipping6549 kgReference
Max front axle7098 kgReference
Max rear axle16198 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDJune 2002 - 2002, Link: OCED Tractor Test 2100 fileReference
PTO performanceReference
Fuel use33.7 l/hourReference
Fuel use34.4 l/hourReference
Drawbar performanceReference
Max pull7556 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
