Tractor · 2000Unverified

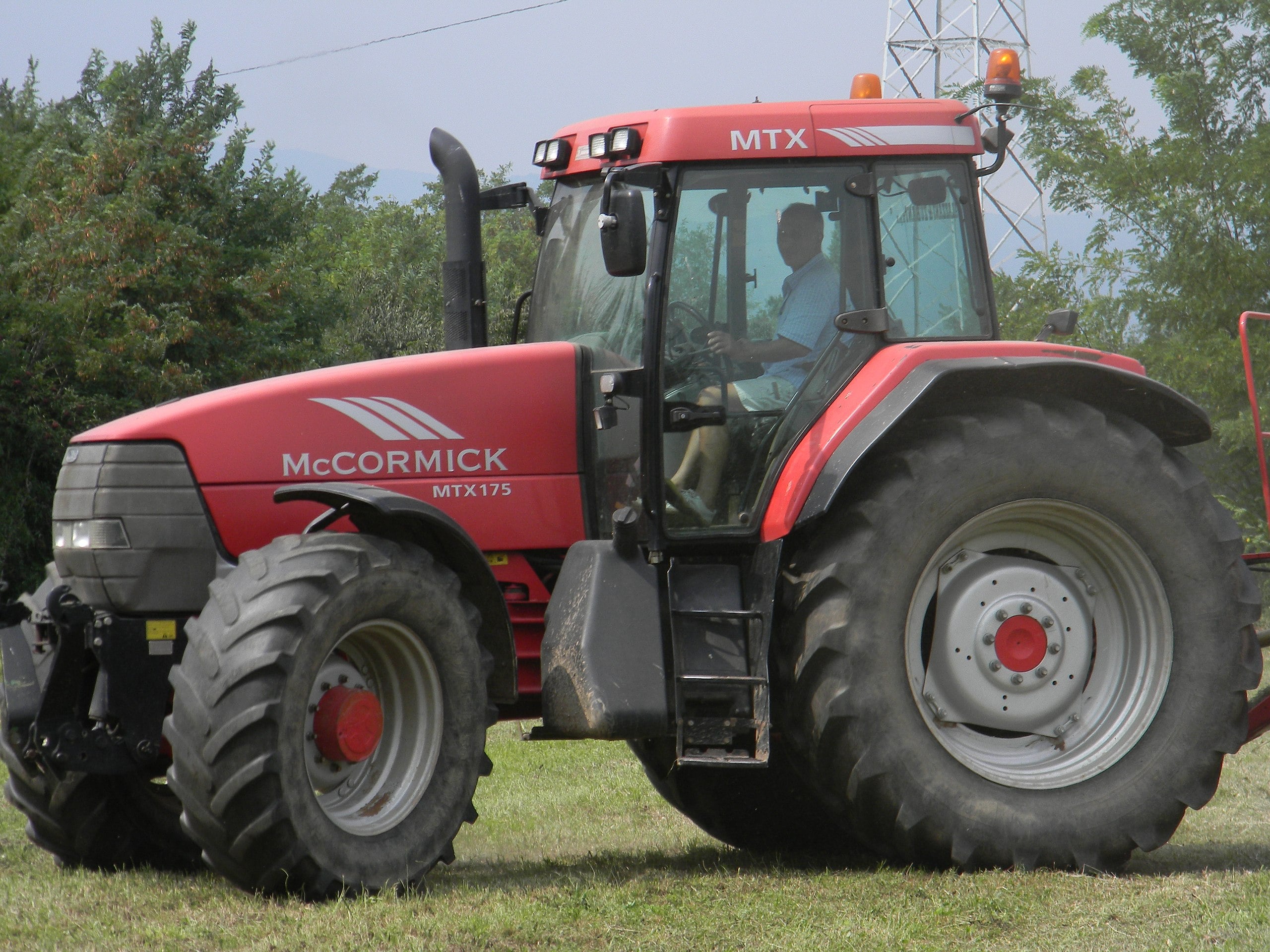

McCormick Intl MTX175

Name: McCormick Intl MTX175
Brand: McCormick Intl

McCormick Intl MTX175 — MTX Series · 176 hp. Reference specifications; pending source verification.

The McCormick Intl MTX175 is a tractor with a rated power output of approximately 176 hp, placing it at the more powerful end of its class. It was manufactured from 2000 to 2003. This model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine paired with four-wheel drive and a powershift transmission. Its operating weight ranges from 14880 to 16560 pounds, making it suitable for operations covering 600-1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

176 hp

Weight

14880 to 16560 pounds

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

176 hp

Transmissions

16-speed four-speed power shift

Production years

2000-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Row-Crop tractorReference

Built in Doncaster, EnglandReference

Four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Perkins 6.0L 6-cyl dieselReference

Fuel tank347.1 LReference

Engine131.2 kWReference

Perkins 1006-60TWIReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Power131.2 kWReference

Rated RPM2200Reference

Torque695.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil change300 hReference

Transmission

16-speed four-speed power shiftReference

32-speed creeperReference

Typefour-speed power shiftReference

Gears16 forward and 12 reverseReference

Clutchelectro-hydraulic wet discReference

Four power shift gears in four ranges.Reference

TypecreeperReference

Gears32 forward and 24 reverseReference

PTO & Hydraulics

Typepressure flow compensatingReference

Pump flow121.1 lpmReference

SCV flow106.0 lpmReference

Rear TypeIIIReference

Controlelectronic lower link draft sensingReference

Rear lift (at 24"/610mm)6935 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1877Reference

Engine RPM1000@2200Reference

Dimensions

Wheelbase284 cmReference

Weight14880 to 16560 poundsReference

Front tire540/65R30Reference

Rear tire650/65R42Reference

Ag front540/65R30Reference

Ag rear650/65R42Reference

Length522 cmReference

Width230 cmReference

Height (cab)298 cmReference

7511 kgReference

Shipping6749 kgReference

Max front axle7098 kgReference

Max rear axle16198 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps95Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
