Tractor · 2004Unverified

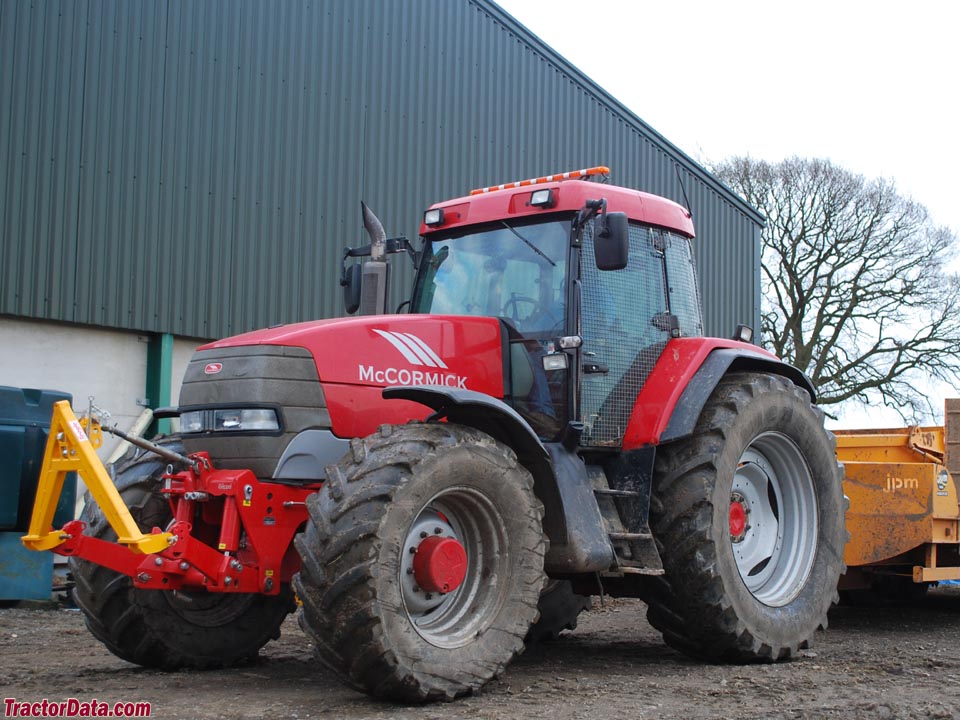

McCormick Intl MTX185
McCormick Intl MTX185 — MTX Series · 171 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
171 hp
Max power
143.4 kW
Weight
15880 to 16010 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick IntlReference
Row-Crop tractorReference
Built in Doncaster, EnglandReference
The McCormick MTX185 is similar to the McCormick XTX200.Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Iveco 6.7L 6-cyl dieselReference
Fuel tank347.1 LReference
Engine146.0 kWReference
Drawbar (tested)104.7 kWReference
IvecoReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
Power146.0 kWReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2200Reference
Torque800.2 NmReference
Torque RPM1400Reference
Starter volts12Reference
Max power143.4 kWReference
Power at rated engine speed127.5 kWReference
Max power104.7 kWReference
Transmission
16-speedReference
32-speed eight-speed power shiftReference
TransmissionpowershiftReference
Gears16 forward and 12 reverseReference
TransmissionXtraSpeedReference
Typeeight-speed power shiftReference
Gears32 forward and 24 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
PTO (tested)143.4 kWReference
Typepressure flow compensatingReference
Pump flow121.1 lpmReference
Rear TypeIIIReference
Controlelectronic lower link draft sensingReference
Rear lift8328 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Power at rated PTO speed136.3 kWReference
Dimensions
Wheelbase287 cmReference
Weight15880 to 16010 poundsReference
Front tire540/65R30Reference
Rear tire650/65R42Reference
Ag front540/65R30Reference
Ag rear650/65R42Reference
Length523 cmReference
Weight7262 kgReference
Shipping weight7203 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging amps120 (optional)Reference
Battery volts12Reference
Test results
Diesel 32-speed 4WDMay 17 - June 7, 2006Link: OCED Tractor Test 1881 fileReference
PTO performanceReference
Fuel use39.7 l/hourReference
Fuel use38.6 l/hourReference
Fuel use39.0 l/hourReference
Drawbar performanceReference
Fuel use36.0 l/hourReference
Gear 3-2 used for power test.Reference
Max pull7084 kgReference
Gear 2-3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
