Tractor · 2009Unverified

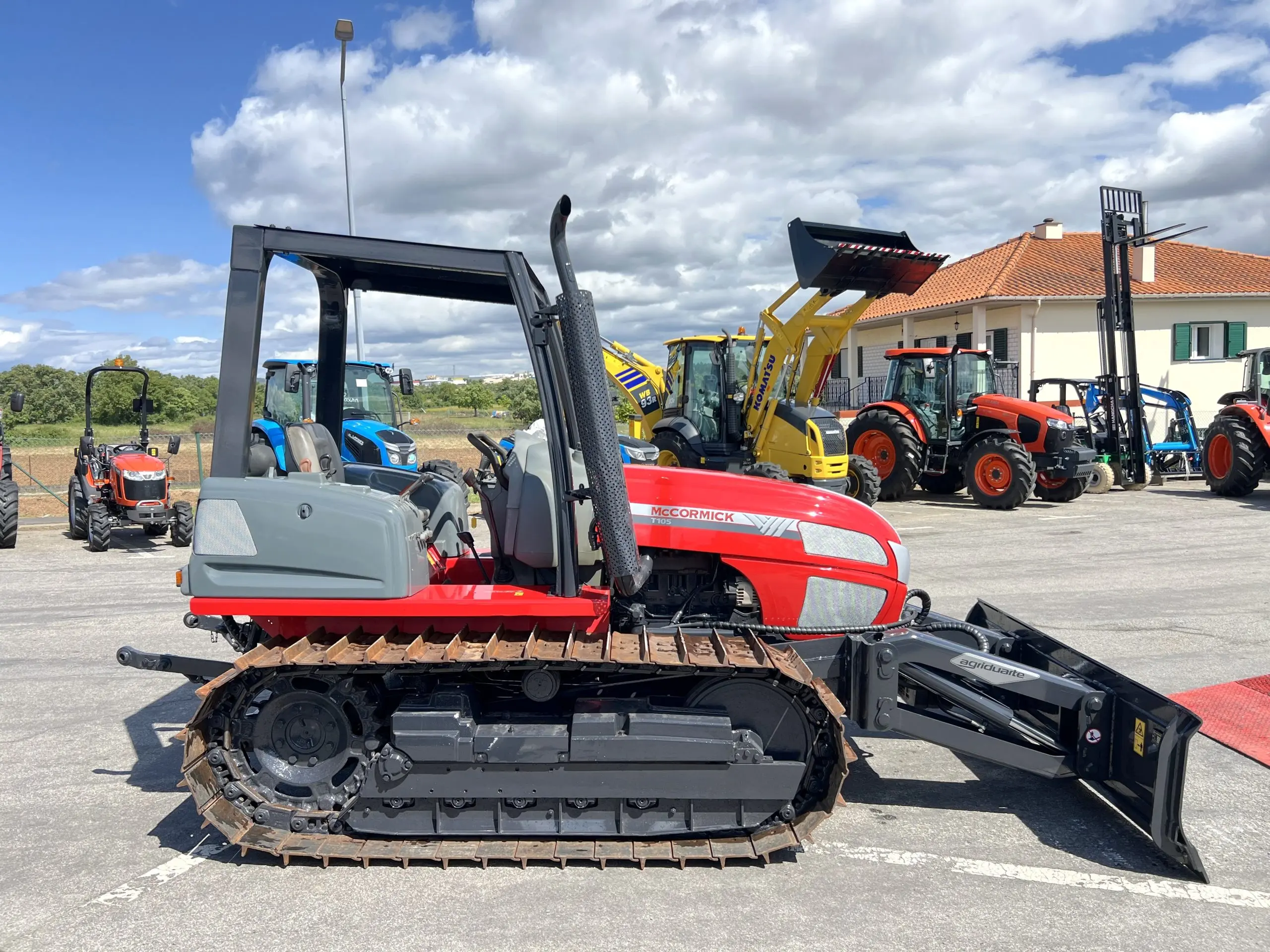

McCormick Intl T100

Name: McCormick Intl T100
Brand: McCormick Intl

McCormick Intl T100 — T Crawler Series · 86 hp. Reference specifications; pending source verification.

The McCormick Intl T100 is a tractor with a rated power output of 86 hp, a mid-range figure within its class. It was manufactured from 2009 to 2013. Key features of the T100 include a 4-cylinder diesel liquid-cooled engine and a tracked undercarriage paired with a hydrostatic transmission. The tractor has an operating weight of 5130 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

86 hp

Weight

5130 kg

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

86 hp

Recorded weight

5130 kg

Transmissions

16-speed

Production years

2009-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Agricultural Crawler tractorReference

DrivecrawlerReference

Steeringhydrostatic wet clutchesReference

Two-post ROPS.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank95.0 LReference

Engine70.8 kWReference

Perkins 1104D-44TReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIIReference

Power70.8 kWReference

Compression18.2:1Reference

Rated RPM2200Reference

Torque390.0 NmReference

Torque RPM1400Reference

Transmission

16-speedReference

Gears16 forward and 8 reverseReference

Clutchcerametallic dry discReference

PTO & Hydraulics

PTO (claimed)63.8 kWReference

Typeopen centerReference

Pressure180.0 barReference

Valves4 to 6Reference

Pump flow38.6 lpmReference

Total flow65.5 lpmReference

Steering flow26.9 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2649 kgReference

Rear lift3400 kgReference

Rear PTOindependentReference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase165 cmReference

Weight5130 kgReference

15.8-inch tracksReference

Length350 cmReference

Width169 cmReference

Height (hood)129 cmReference

Height (ROPS)230 cmReference

Ground clearance32 cmReference

Gauge130 cmReference

McCormick Intl T100 Tracks

Width40 cmReference

Width44 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
