Tractor · 2009Unverified

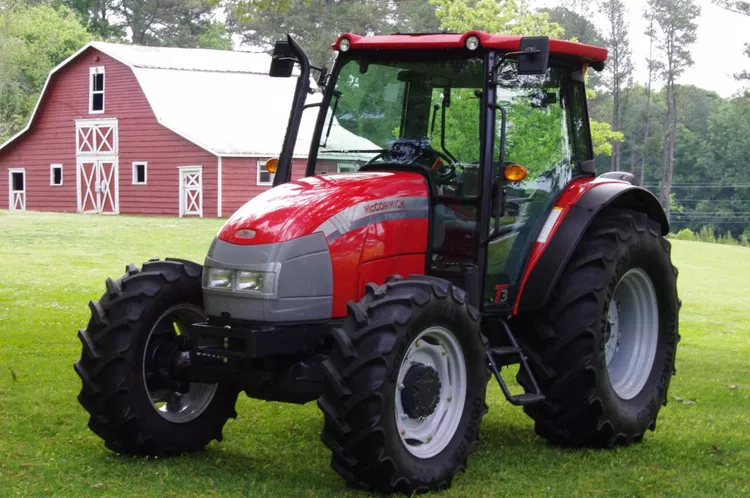

McCormick Intl T80 Max

Name: McCormick Intl T80 Max
Brand: McCormick Intl

McCormick Intl T80 Max — T Max Series · 74 hp. Reference specifications; pending source verification.

The McCormick Intl T80 Max is a tractor with a power output of 74 hp, positioning it in the middle of its class in terms of power. Manufactured from 2009 to 2013, the tractor features a 4-cylinder diesel liquid-cooled engine and four-wheel drive with a powershift transmission. The listed weight of the McCormick Intl T80 Max ranges from 8047 to 8378 pounds, and it is suitable for tasks of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

74 hp

Weight

8047 to 8378 pounds

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

74 hp

Recorded weight

3650 kg

Transmissions

24-speed

Production years

2009-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Utility tractorReference

Built in ItalyReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab available with air-conditioning.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank101.8 LReference

Engine55.2 kWReference

Perkins 1104D-44Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIIReference

Power55.2 kWReference

Rated RPM2200Reference

Torque261.0 NmReference

Torque RPM1400Reference

StarterelectircReference

Starter volts12Reference

Transmission

24-speedReference

12-speed power shuttleReference

36-speed three-speed power shiftReference

Gears24 forward and 12 reverseReference

Clutch330mm mechanical dry discReference

Typepower shuttleReference

Gears12 forward and reverseReference

Clutchwet discReference

Typethree-speed power shiftReference

Gears36 forward and 12 reverseReference

PTO & Hydraulics

Typeopen centerReference

Pump flow52.2 lpmReference

Steering flow29.9 lpmReference

Rear TypeIIReference

Rear lift4350 kgReference

Front HitchIIReference

Front lift1799 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase233 cmReference

Weight8047 to 8378 poundsReference

Front tire380/70R24Reference

Rear tire480/70R34Reference

Ag front380/70R24Reference

Ag rear480/70R34Reference

Length416 cmReference

Width210 cmReference

Height (cab)256 cmReference

ROPS Weight3650 kgReference

Cab Weight3800 kgReference

Ground clearance48 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
