Tractor · 2009Unverified

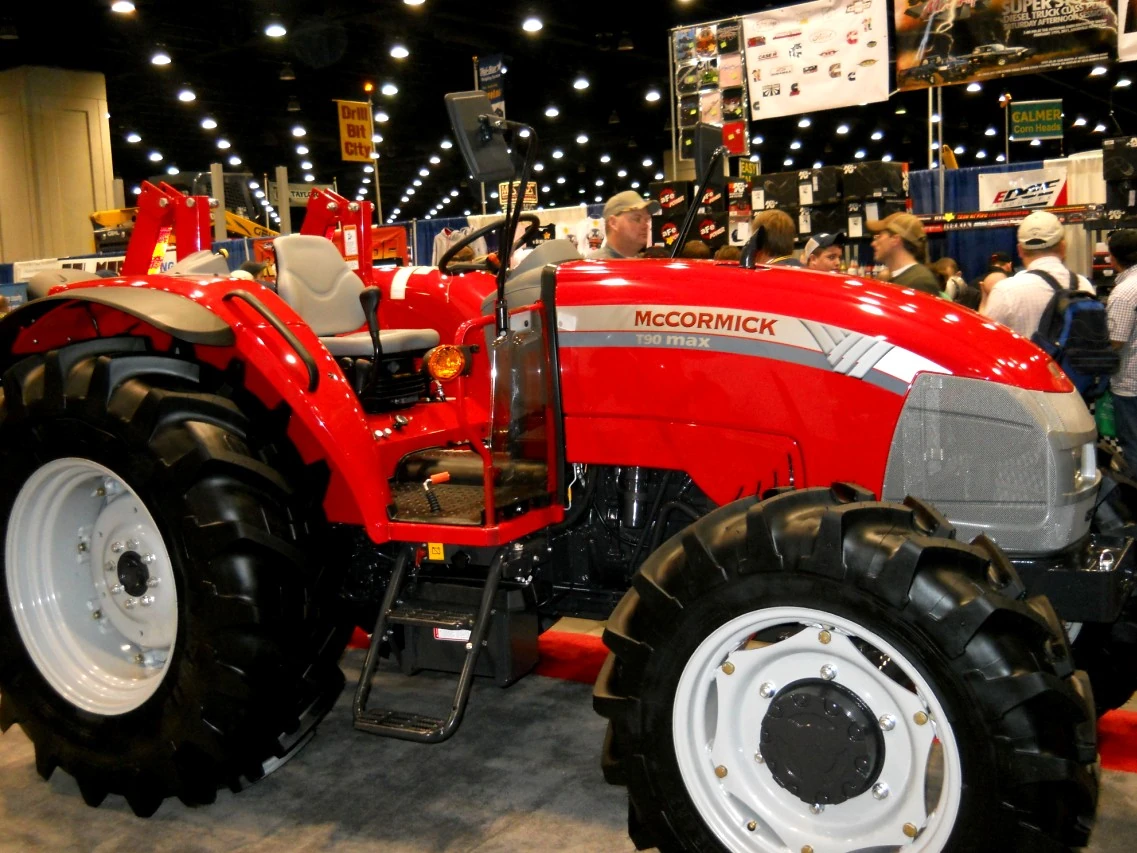

McCormick Intl T90 Max
McCormick Intl T90 Max — T Max Series · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
8047 to 8378 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab available with air-conditioning.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank101.8 LReference
Engine61.9 kWReference
Perkins 1104D-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power61.9 kWReference
Rated RPM2200Reference
Torque352.6 NmReference
Torque RPM1400Reference
StarterelectircReference
Starter volts12Reference
Transmission
24-speedReference
12-speed power shuttleReference
36-speed three-speed power shiftReference
Gears24 forward and 12 reverseReference
Clutch330mm mechanical dry discReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Typethree-speed power shiftReference
Gears36 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)52.6 kWReference
Typeopen centerReference
Pump flow52.2 lpmReference
Steering flow29.9 lpmReference
Rear TypeIIReference
Rear lift4350 kgReference
Front HitchIIReference
Front lift1799 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase233 cmReference
Weight8047 to 8378 poundsReference
Front tire380/70R24Reference
Rear tire480/70R34Reference
Ag front380/70R24Reference
Ag rear480/70R34Reference
Length416 cmReference
Width210 cmReference
Height (cab)256 cmReference
ROPS Weight3650 kgReference
Cab Weight3800 kgReference
Ground clearance48 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
