Tractor · 2007Unverified

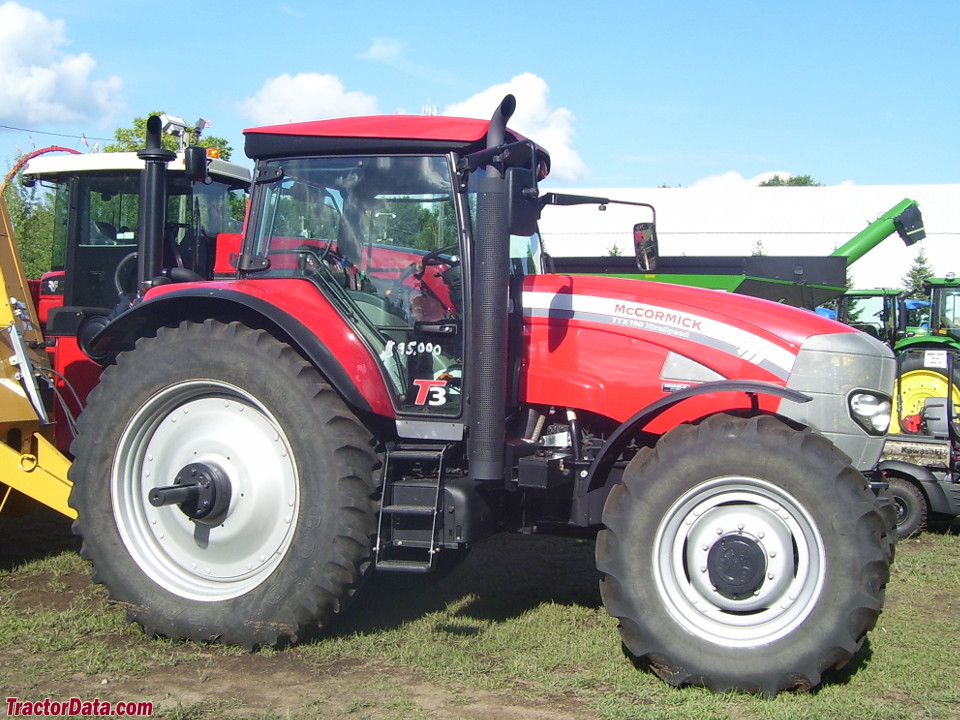

McCormick Intl TTX190
McCormick Intl TTX190 — TTX Series · 173 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
173 hp
Weight
7204 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Row-Crop tractorReference
Built in Fabbrico, ItalyReference
Four-wheel driveReference
Wet disc brakesReference
Cab standard with heat and air-conditioning. Optional hydraulic suspension.Reference
Engine
Iveco 6.7L 6-cyl dieselReference
Fuel tank348.2 LReference
Engine134.2 kWReference
IvecoReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
Power134.2 kWReference
Rated RPM2200Reference
Torque774.3 NmReference
Transmission
32-speed partial power shiftReference
48-speed partial power shiftReference
TransmissionXtraSpeedReference
Typepartial power shiftReference
Gears32 forward and 24 reverseReference
Four ranges with eight power shift gears in each range. Power shuttle.Reference
Gears48 forward and 40 reverseReference
Four ranges with eight power shift gears in each range plus creeper. Power shuttle.Reference
PTO & Hydraulics
PTO (claimed)129.0 kWReference
Typeclosed centerReference
Valves3 to 5Reference
Total flow128.7 lpmReference
Total flow162.8 lpmReference
Rear TypeIIIReference
Rear lift10950 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase287 cmReference
Weight7204 kgReference
Front tire540/65R30Reference
Rear tire650/65R42Reference
Ag front540/65R30Reference
Ag rear650/65R42Reference
Length530 cmReference
Width241 cmReference
Height (cab)299 cmReference
Ground clearance45 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
