Tractor · 2007Unverified

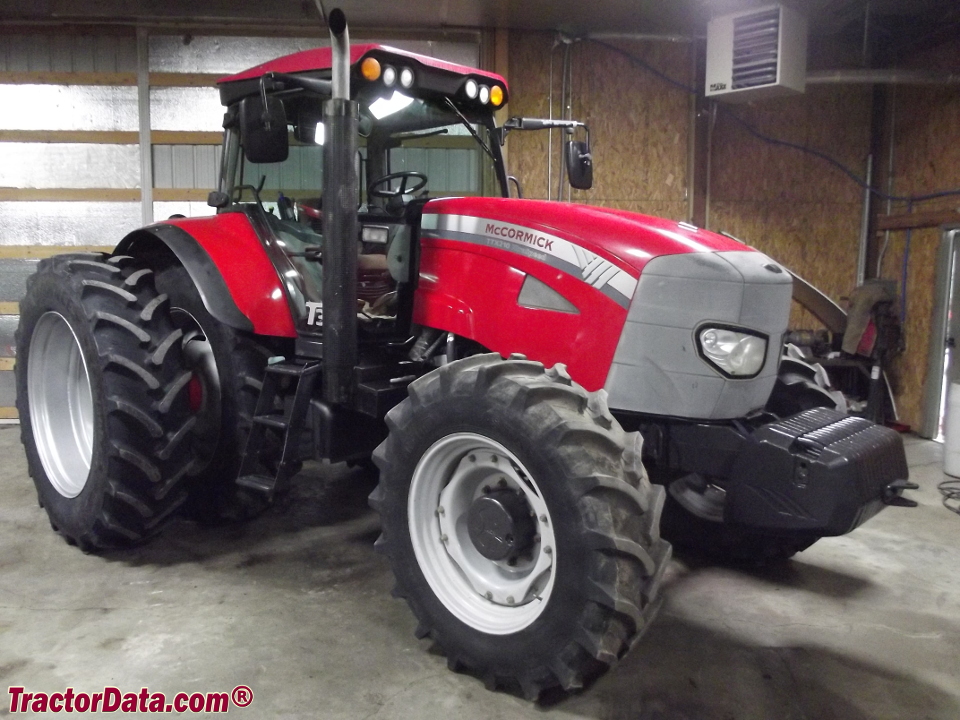

McCormick Intl TTX210

Name: McCormick Intl TTX210
Brand: McCormick Intl

McCormick Intl TTX210 — TTX Series · 187 hp. Reference specifications; pending source verification.

The McCormick Intl TTX210 is a tractor with a rated output of 187 hp, categorising it among the higher-powered machines in its class. It was manufactured from 2007 to 2013. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, driving through a four-wheel drive system with a powershift transmission, and has a listed weight of 7204 kg. It is suitable for operations requiring around 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

187 hp

Weight

7204 kg

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

187 hp

Recorded weight

7204 kg

Transmissions

32-speed partial power shift

Production years

2007-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Row-Crop tractorReference

Built in Fabbrico, ItalyReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with heat and air-conditioning. Optional hydraulic suspension.Reference

Engine

Iveco 6.7L 6-cyl dieselReference

Fuel tank348.2 LReference

Engine147.6 kWReference

IvecoReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

Power147.6 kWReference

Rated RPM2200Reference

Torque800.0 NmReference

Transmission

32-speed partial power shiftReference

48-speed partial power shiftReference

TransmissionXtraSpeedReference

Typepartial power shiftReference

Gears32 forward and 24 reverseReference

Four ranges with eight power shift gears in each range. Power shuttle.Reference

Gears48 forward and 40 reverseReference

Four ranges with eight power shift gears in each range plus creeper. Power shuttle.Reference

PTO & Hydraulics

PTO (claimed)139.4 kWReference

Typeclosed centerReference

Valves3 to 5Reference

Total flow128.7 lpmReference

Total flow162.8 lpmReference

Rear TypeIIIReference

Rear lift10950 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase287 cmReference

Weight7204 kgReference

Front tire540/65R30Reference

Rear tire650/65R42Reference

Ag front540/65R30Reference

Ag rear650/65R42Reference

Length530 cmReference

Width241 cmReference

Height (cab)299 cmReference

Ground clearance45 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
