Tractor · 2011Unverified

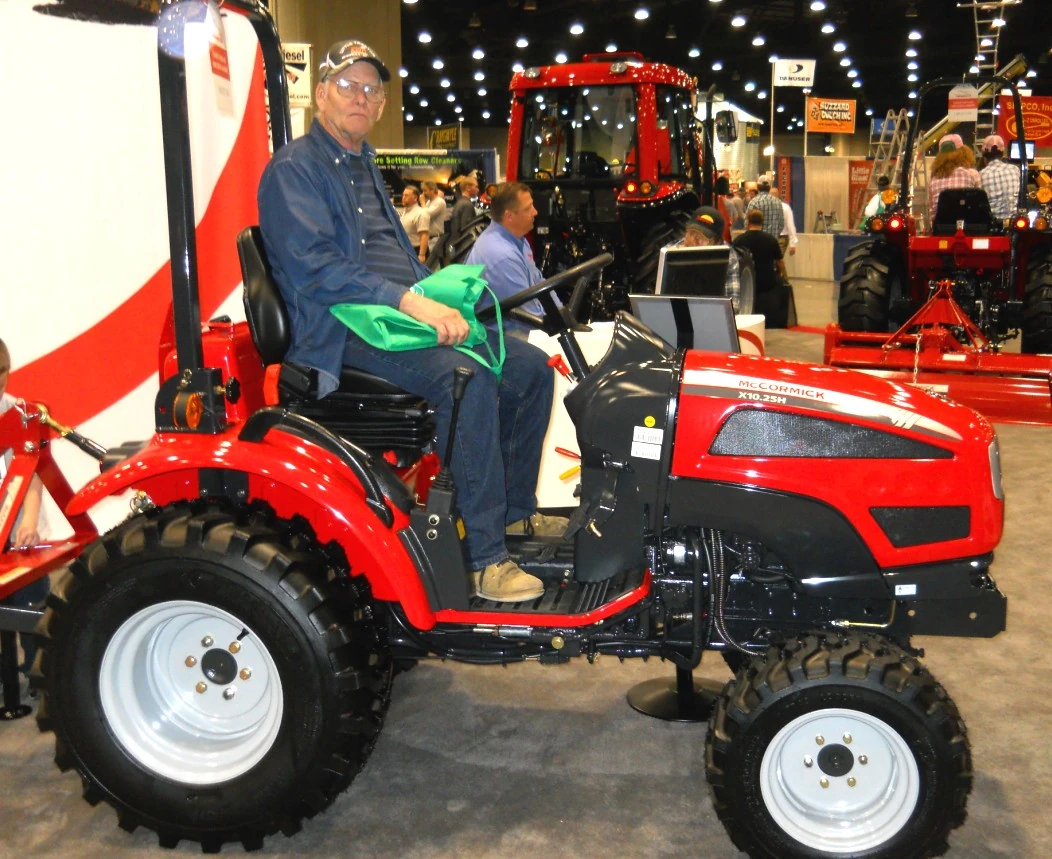

McCormick Intl X10.25H
McCormick Intl X10.25H — X10 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
969 kg
Hover a source tag to verify
Overview
DistributorMcCormick IntlReference
ManufacturerDaedongReference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Daedong 1.0L 3-cyl dieselReference
Fuel tank20.0 LReference
Engine (gross)16.4 kWReference
Daedong 3C100Reference
dieselReference
3-cylinderReference
liquid-cooled vertical inlineReference
Displacement1.0 LReference
Power (gross)16.4 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)12.3 kWReference
Typegear pumpReference
Valves1Reference
Pump flow29.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)228 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase147 cmReference
Weight969 kgReference
Front tire6-12Reference
Rear tire9.5-16Reference
Ag front6-12Reference
Ag rear9.5-16Reference
Lawn/turf front23x8.5-12Reference
Lawn/turf rear33x12.5-16.5Reference
Industrial front23x8.5-12Reference
Industrial rear12x16.5Reference
Length268 cmReference
Width112 cmReference
Height (ROPS)218 cmReference
Ground clearance30 cmReference
Front tread90 cmReference
Rear tread88 to 93 cmReference
McCormick Intl X10.25H attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
