Tractor · 2011Unverified
McCormick Intl X10.30H
McCormick Intl X10.30H — X10 Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1413 kg
Hover a source tag to verify
Overview
DistributorMcCormick IntlReference
ManufacturerDaedongReference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine

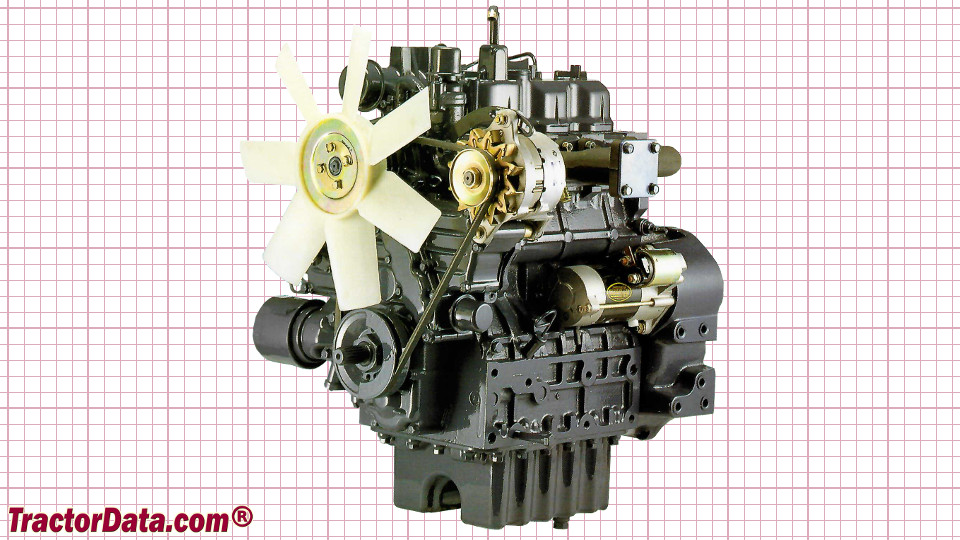

Daedong 1.4L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine (gross)20.9 kWReference
Daedong 3A139Reference
dieselReference
3-cylinderReference
liquid-cooled vertical inlineReference
Displacement1.4 LReference
Bore/Stroke80 x 92 mmReference
Power (gross)20.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)15.3 kWReference
Typegear pumpReference
Valves1 or 2Reference
Pump flow48.1 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)800 kgReference
Rear PTO Type540Reference
Rear PTO Type1000 (optional)Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase167 cmReference
Weight1413 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Ag front7-14Reference
Ag rear11.2-24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear15x19.5Reference
Length310 cmReference
Width138 cmReference
Height (ROPS)245 cmReference
Ground clearance35 cmReference
Front tread110 cmReference
Rear tread97 to 130 cmReference
McCormick Intl X10.30H attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
