Tractor · 2011Unverified

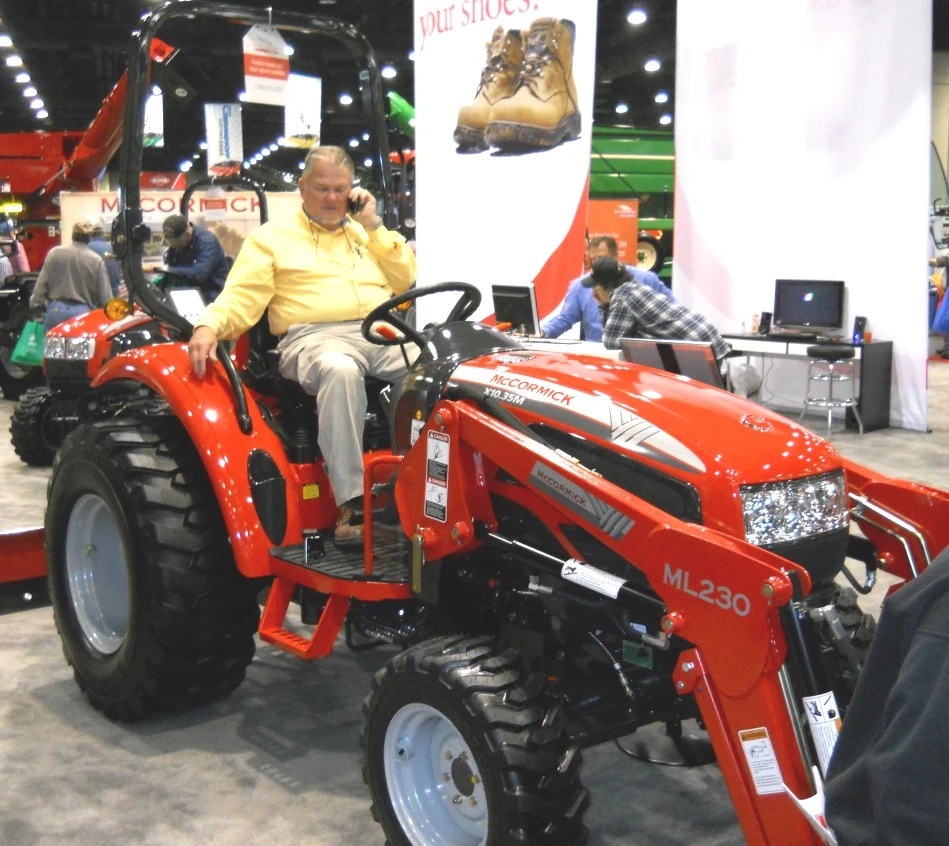

McCormick Intl X10.35M

Name: McCormick Intl X10.35M
Brand: McCormick Intl

McCormick Intl X10.35M — X10 Series · 34 hp. Reference specifications; pending source verification.

The McCormick Intl X10.35M is a compact tractor rated at 34 hp, one of the smaller options in its class. It was manufactured from 2011 to 2014 and features a 3-cylinder diesel liquid-cooled engine. The tractor is equipped with four-wheel drive and a hydrostatic transmission, and its listed weight is 1429 kg. It is suitable for tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

34 hp

Weight

1429 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

34 hp

Recorded weight

1429 kg

Transmissions

8-speed synchronized shuttle

Production years

2011-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorMcCormick IntlReference

ManufacturerDaedongReference

Compact Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Variants

X10.35HhydrostaticReference

X10.35Mgear driveReference

Engine

Daedong 1.6L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine (gross)25.4 kWReference

Daedong 3A165Reference

dieselReference

3-cylinderReference

liquid-cooled vertical inlineReference

Displacement1.6 LReference

Power (gross)25.4 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Clutchdual stage dryReference

PTO & Hydraulics

PTO (claimed)20.6 kWReference

Typegear pumpReference

Valves1Reference

Pump flow48.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at 24"/610mm)800 kgReference

Rear PTOliveReference

Rear PTO Type540Reference

Rear PTO Type1000 (optional)Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Dimensions

Wheelbase167 cmReference

Weight1429 kgReference

Front tire7-14Reference

Rear tire11.2-24Reference

Ag front7-14Reference

Ag rear11.2-24Reference

Lawn/turf front27x8.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front25x8.5-14Reference

Industrial rear15x19.5Reference

Length310 cmReference

Width138 cmReference

Height (ROPS)245 cmReference

Ground clearance35 cmReference

Front tread110 cmReference

Rear tread97 to 130 cmReference

McCormick Intl X10.35M attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
