Tractor · 2013Unverified
McCormick Intl X1.35
McCormick Intl X1.35 — X1 Series · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1838 kg
Hover a source tag to verify
Overview
DistributorMcCormick Intl (a part of Argo)Reference
ManufacturerKukjeReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Kukje 1.7L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine26.1 kWReference
KukjeReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke88 x 94 mmReference
EmissionsTier IVReference
Emission controldiesel oxidation catalyst with diesel particulate filter (DPF) (DOC)Reference
Power26.1 kWReference
Fuel systemmechanical indirect injectionReference
Air cleanerdual element dryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)21.6 kWReference
Typeopen centerReference
Valves2Reference
SCV flow33.7 lpmReference
Rear TypeIReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1099 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase180 cmReference
Weight1838 kgReference
Length330 cmReference
Height (ROPS)238 cmReference
McCormick Intl X1.35 attachments

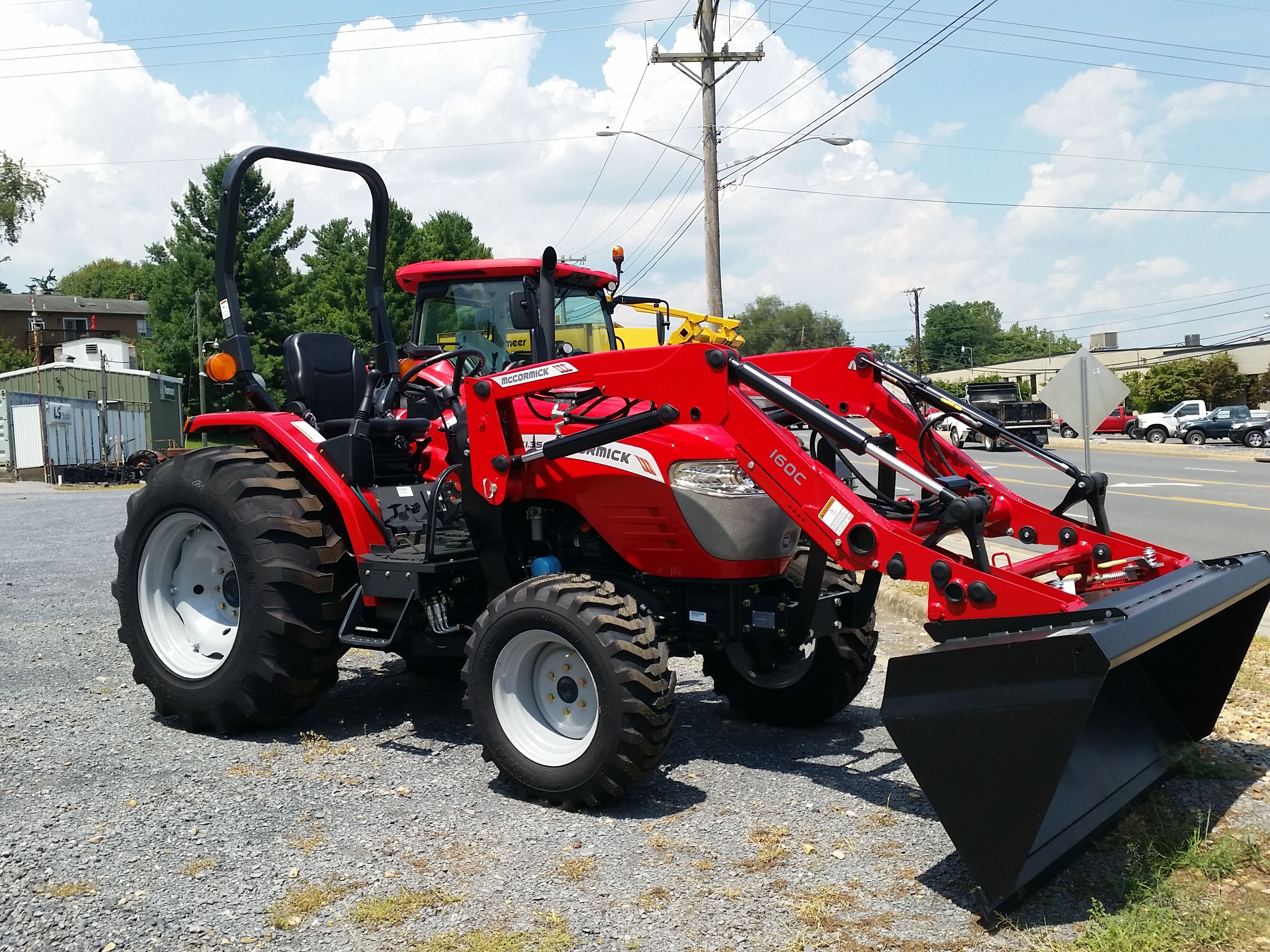

front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
