Tractor · 2019Unverified

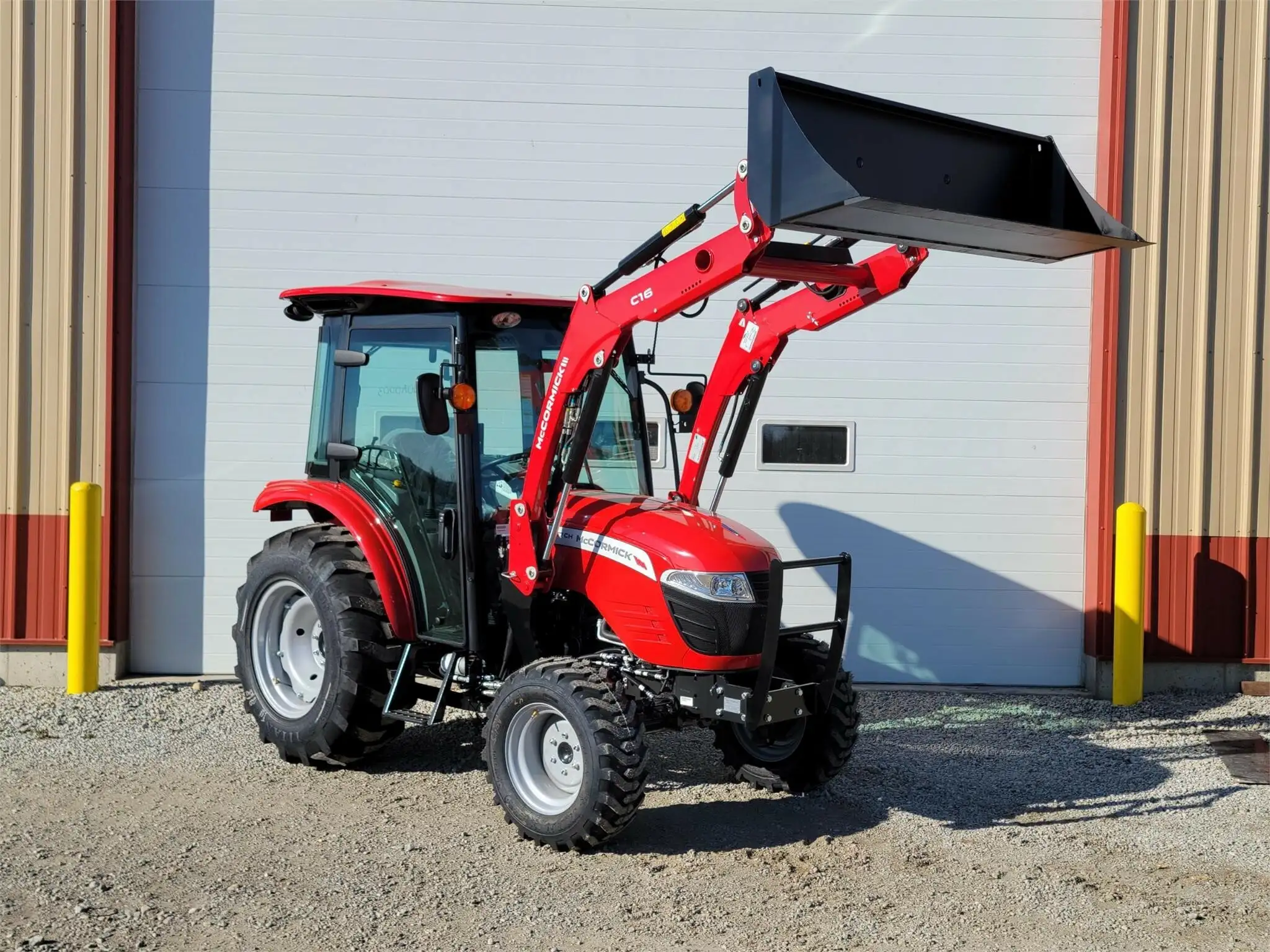

McCormick Intl X1.37
McCormick Intl X1.37 — X1 Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
4195 to 4211 pounds
Hover a source tag to verify
Overview
DistributorMcCormick Intl (a part of Argo)Reference
ManufacturerKukjeReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Kukje 2.1L 4-cyl dieselReference
Fuel tank45.4 LReference
Engine27.6 kWReference
KukjeReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.1 LReference
Bore/Stroke84 x 94 mmReference
EmissionsTier IVReference
Emission controldiesel oxidation catalyst with diesel particulate filter (DPF) (DOC)Reference
Power27.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
hydrostaticReference
Gear Weight1910 kgReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Four synchronized gears in three ranges with mechanical shuttle.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)24.6 kWReference
Hydro PTO (claimed)23.9 kWReference
Typeopen centerReference
Rear valves2Reference
Mid valves2Reference
SCV flow39.4 lpmReference
Total flow58.3 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1099 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E (1.375)Reference
Dimensions
Wheelbase180 cmReference
Weight4195 to 4211 poundsReference
Height (cab)245 cmReference
Hydro Weight1902 kgReference
McCormick Intl X1.37 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
