The McCormick Intl X1.45 is a tractor with a rated output of 42 hp, representing a compact option in its class. First introduced in 2013, the X1.45 is powered by a 4-cylinder diesel liquid-cooled engine, which drives through four-wheel drive with a hydrostatic transmission. The listed weight of the tractor ranges from 4115 to 4442 pounds. It is designed for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
4115 to 4442 pounds
Catalogue coverage
Variants represented
2
Richest spec table
56 rows
Recorded power
42 hp
Transmissions
12-speed synchronized shuttle
Production years
2013-2013
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorMcCormick Intl (a part of Argo)Reference
ManufacturerKukjeReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Variants
X1.45ROPS shuttleReference
X1.45CCab shuttleReference
X1.45HCCab hydrostaticReference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank35.2 LReference
Engine35.0 kWReference
KukjeReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
EmissionsTier IVReference
Emission controldiesel oxidation catalyst with diesel particulate filter (DPF) (DOC)Reference
Power35.0 kWReference
Air cleanerdual element dryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Typeopen centerReference
Valves2Reference
SCV flow42.0 lpmReference
Total flow63.6 lpmReference
Steering flow21.6 lpmReference
Rear TypeIReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1099 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase180 cmReference
Weight4115 to 4442 poundsReference
Length330 cmReference
Height (ROPS)238 cmReference
Height (cab)246 cmReference
ROPS Shuttle1866 kgReference
Cab Shuttle2014 kgReference
Cab Hydro1950 kgReference

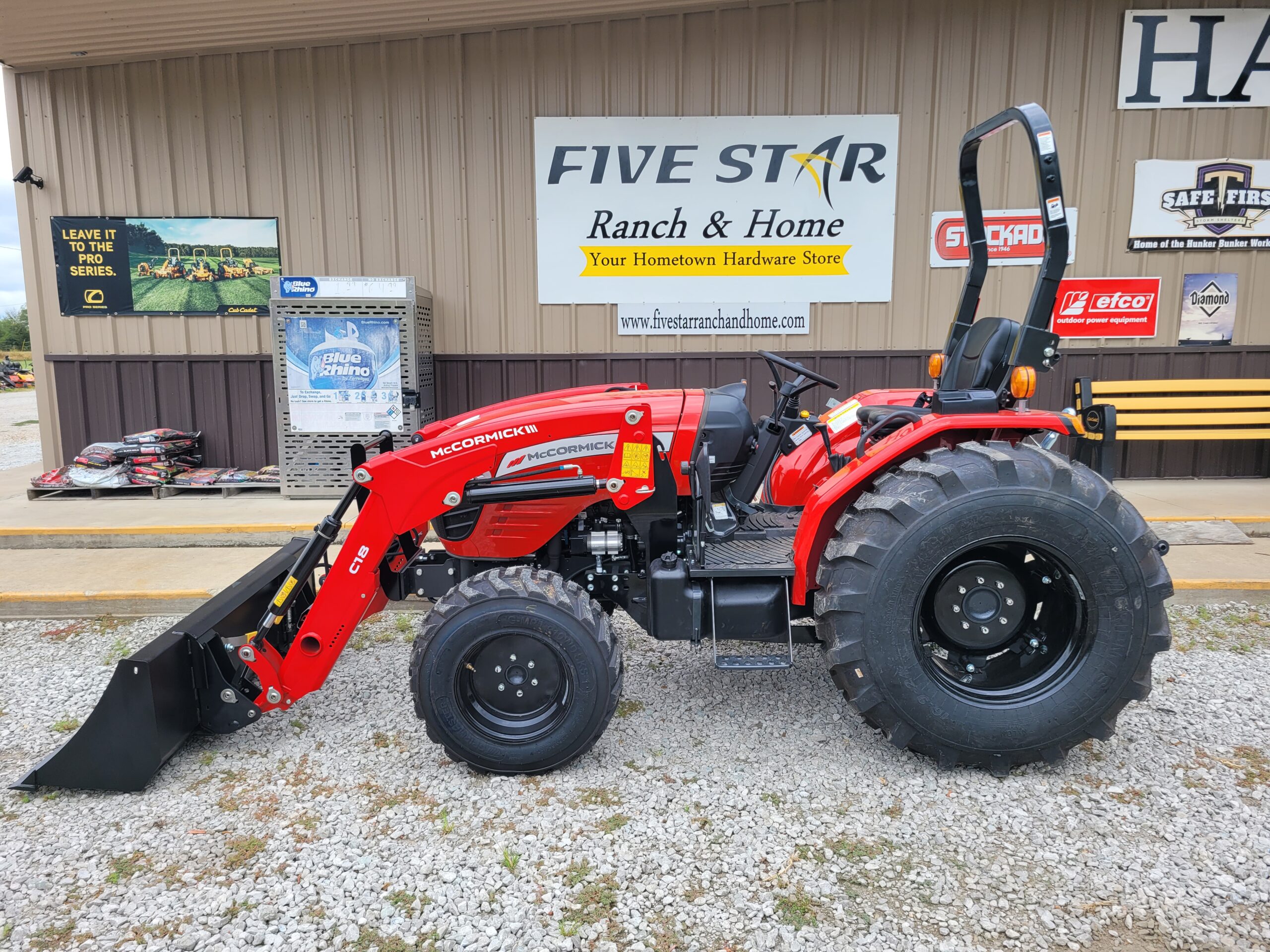

McCormick Intl X1.45 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
