Tractor · 2014Unverified

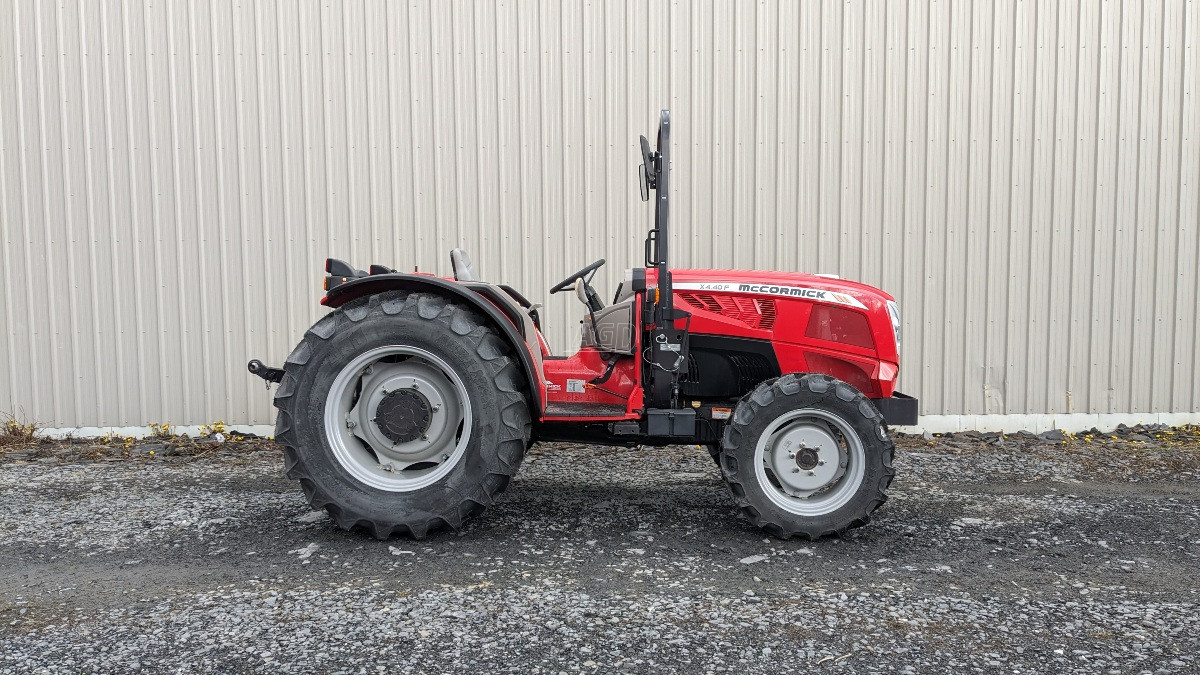

McCormick Intl X4.30

Name: McCormick Intl X4.30
Brand: McCormick Intl

McCormick Intl X4.30 — X4 Series · 57 hp. Reference specifications; pending source verification.

The McCormick Intl X4.30 is a tractor with a rated power output of approximately 57 horsepower, positioning it at the lower end of its class. Produced in 2014, the X4.30 is equipped with a 4-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a 12-speed gearbox. Its operating weight ranges from 6380 to 7130 pounds. The X4.30 is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

57 hp

Max power

68 hp

Weight

6380 to 7130 pounds

Catalogue coverage

Variants represented

Richest spec table

77 rows

Recorded power

57 hp

Recorded weight

2893 kg

Transmissions

12-speed partially synchronized

Production years

2014-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Utility tractorReference

Four-wheel driveReference

Final drivesoutboard planetaryReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Deutz 2.9L 4-cyl dieselReference

Fuel tank89.7 LReference

Engine50.7 kWReference

Deutz C4DT69Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke92 x 110 mmReference

EmissionsInterim Tier IVReference

Emission controlcooled exhaust gas recirculation with diesel oxidation catalyst (DOC) (EGR)Reference

Power50.7 kWReference

Maximum Power53.7 kWReference

Fuel systemcommon railReference

Rated RPM2200Reference

Torque271.2 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4-cylinderReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed90.7 kgReference

Bore and stroke3.62x4.33 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speed partially synchronizedReference

12-speed power shuttleReference

Typepartially synchronizedReference

Gears12 forward and reverseReference

Clutch280mm dry discReference

Four synchronized gears in three ranges with mechanical shuttleReference

Typepower shuttleReference

Clutchhydraulic wet discReference

Four synchronized gears in three ranges with power shuttleReference

forward and reverse options12 forward and reverse || 12 forward and reverseReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)42.5 kWReference

PTO (claimed)45.5 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow48.8 lpmReference

Steering flow28.0 lpmReference

Rear TypeIIReference

Rear lift2704 kgReference

Rear lift3399 kgReference

Rear Armstelescopic ends and stabilizersReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase210 cmReference

Weight6380 to 7130 poundsReference

Length419 cmReference

Height (ROPS)281 cmReference

Height (cab)246 cmReference

ROPS Weight2893 kgReference

Cab Weight3234 kgReference

Flange rear axleReference

McCormick Intl X4.30 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

McCormick Intl X421 loaderReference

McCormick Intl X426 loaderReference

General

Make & ModelMcCormick Intl (a part of Argo)Reference

Capacities

Capacity177 ciReference

Power

Max Power68 hpReference

PTO

PTO Power61 hpReference

Hydraulics

Pump Rated Output (total)12.9 gpmReference

Hydraulics Typeopen centerReference

Remote Valves2 or 3Reference

Dimensions & weight

Overall weightROPS-6,380 l Cab-7,130 lbsReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
