Tractor · 2014Unverified

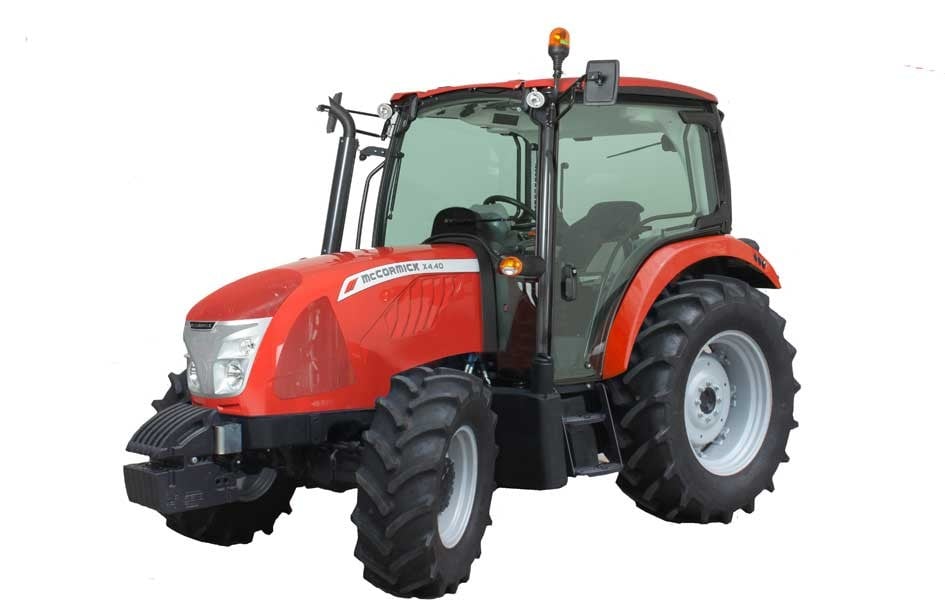

McCormick Intl X4.40
McCormick Intl X4.40 — X4 Series · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Weight
6380 to 7130 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Deutz 2.9L 4-cyl dieselReference
Fuel tank89.7 LReference
Engine55.9 kWReference
Deutz C4DT74Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke92 x 110 mmReference
EmissionsInterim Tier IVReference
Emission controlcooled exhaust gas recirculation with diesel oxidation catalyst (DOC) (EGR)Reference
Power55.9 kWReference
Maximum Power58.9 kWReference
Fuel systemcommon railReference
Rated RPM2200Reference
Torque299.7 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
12-speed power shuttleReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutch280mm dry discReference
Four synchronized gears in three ranges with mechanical shuttleReference
Typepower shuttleReference
Clutchhydraulic wet discReference
Four synchronized gears in three ranges with power shuttleReference
PTO & Hydraulics
PTO (claimed)47.0 kWReference
PTO (claimed)50.7 kWReference
Typeopen centerReference
Valves2 or 3Reference
Pump flow48.8 lpmReference
Steering flow28.0 lpmReference
Rear TypeIIReference
Rear lift2704 kgReference
Rear lift3399 kgReference
Rear Armstelescopic ends and stabilizersReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase210 cmReference
Weight6380 to 7130 poundsReference
Length419 cmReference
Height (ROPS)281 cmReference
Height (cab)246 cmReference
ROPS Weight2893 kgReference
Cab Weight3234 kgReference
Flange rear axleReference
McCormick Intl X4.40 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
McCormick Intl X421 loaderReference
McCormick Intl X426 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
