Tractor · 2014Unverified

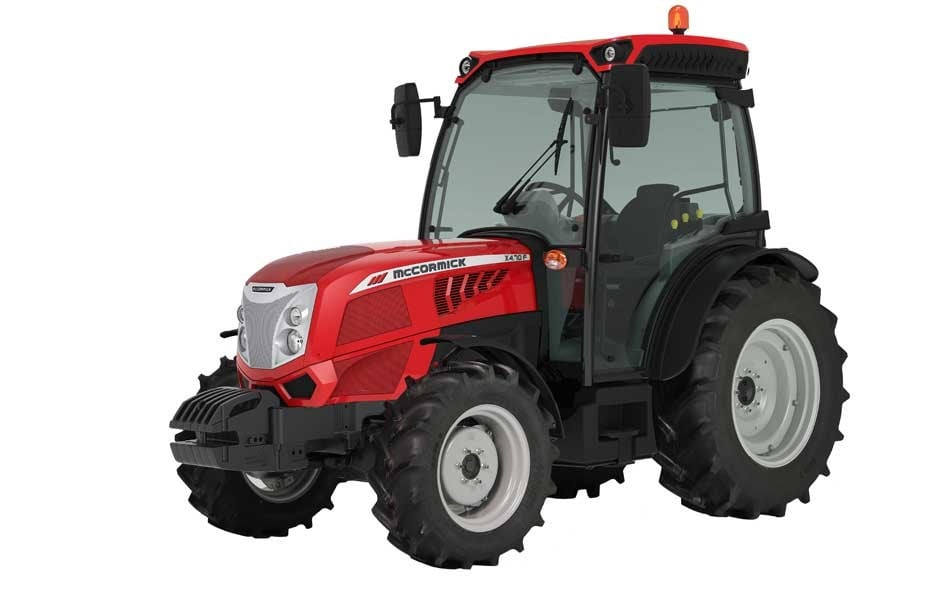

McCormick Intl X4.50
McCormick Intl X4.50 — X4 Series · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
3193 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Differential lockmechanical optionalReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Trailer brakespneumatic (optional)Reference
Cab standard. Air-conditioning optional.Reference
Engine
Deutz 3.6L 4-cyl dieselReference
Engine63.4 kWReference
Deutz C4DT62Reference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke97 x 119 mmReference
EmissionsTier 4Reference
Power63.4 kWReference
Maximum Power67.1 kWReference
Compression17.2:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
16-speed mechanical shuttleReference
12-speed power shuttleReference
24-speed wet discReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch305mm dry discReference
Gears16 forward and reverseReference
Typepower shuttleReference
Clutchwet discReference
Typewet discReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)52.9 kWReference
PTO (claimed)56.7 kWReference
Valves2 to 4Reference
Pump flow43.1 lpmReference
Pump flow56.8 lpmReference
Total flow74.9 lpmReference
Total flow88.9 lpmReference
Controlposition controlReference
Rear lift2694 kgReference
Rear lift3891 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase223 cmReference
Weight3193 kgReference
Length431 cmReference
Width175 cmReference
Height (cab)259 cmReference
Ground clearance36 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
