Tractor · 2013Unverified

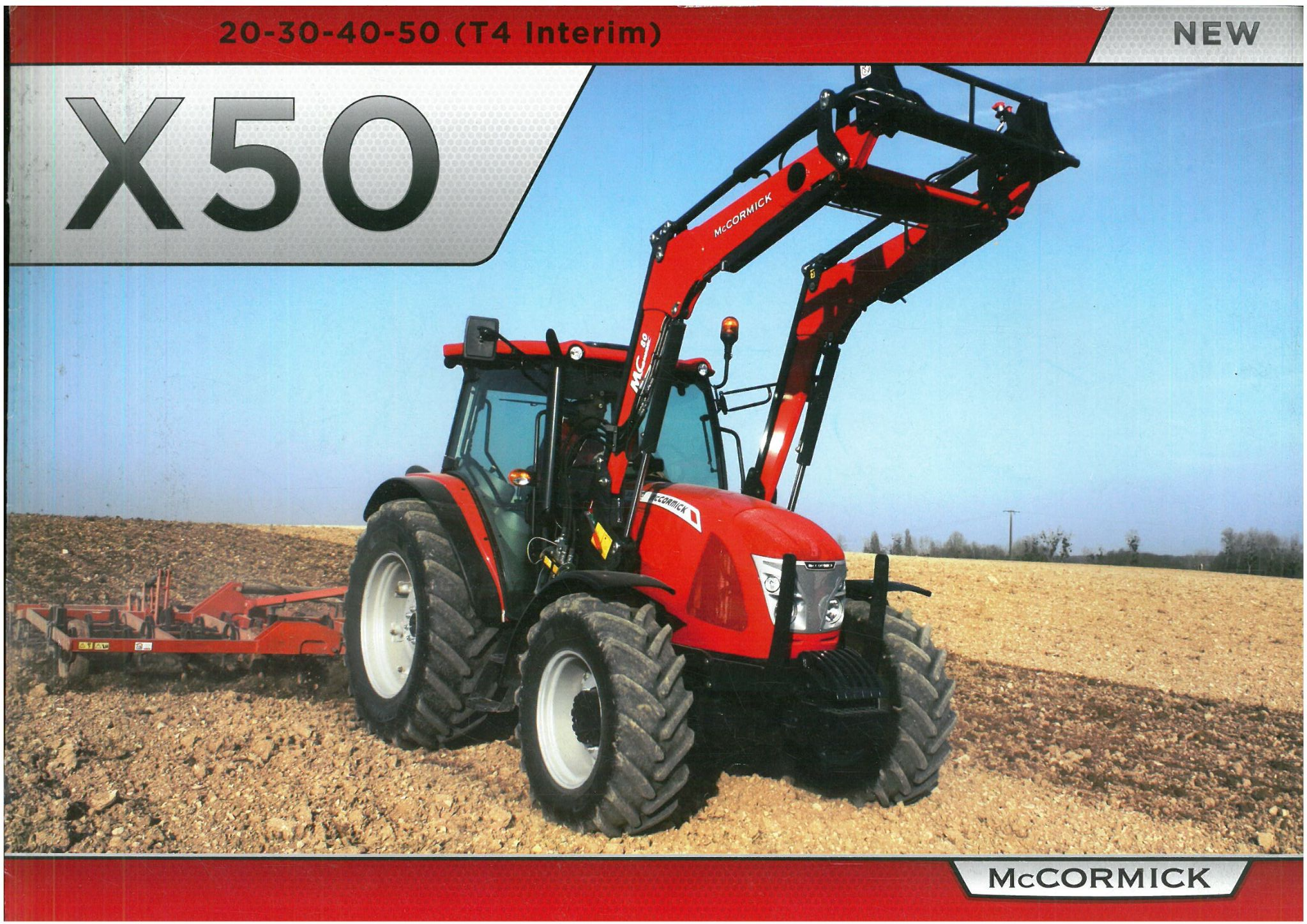

McCormick Intl X50.20m High Clear

Name: McCormick Intl X50.20m High Clear
Brand: McCormick Intl

McCormick Intl X50.20m High Clear — X50 Series · 72 hp. Reference specifications; pending source verification.

The McCormick Intl X50.20m High Clear is a tractor model with a rated power of 72 hp, a mid-range figure for its class. It was manufactured in 2013 and is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a 12-speed gearbox. The tractor has a listed operating weight of 3460 kg, and it is designed for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Weight

3460 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

72 hp

Recorded weight

3460 kg

Transmissions

12-speed mechanical shuttle

Production years

2013-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

High-Clearance tractorReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Cab standard with optional air-conditioning.Reference

Variants

X50.20mutilityReference

X50.20m HChigh-cropReference

Engine

Perkins 3.4L 4-cyl dieselReference

Fuel tank102.2 LReference

Engine63.4 kWReference

Perkins 854E-E34TAReference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 109 mmReference

EmissionsInterim Tier IVReference

Power63.4 kWReference

Compression17:1Reference

Rated RPM2200Reference

Torque352.6 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Clutch279.4 mm mechanical dry discReference

PTO & Hydraulics

PTO (claimed)53.3 kWReference

Pressure180.0 barReference

Valves2Reference

SCV flow52.2 lpmReference

Total flow82.1 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift4340 kgReference

Rear PTOindependentReference

Rear PTO Type540/750 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

2WD Wheelbase225 cmReference

4WD Wheelbase223 cmReference

Weight3460 kgReference

Front tire9.5R48Reference

Rear tire9.5R48Reference

Standard tires (ag)Front: 9.5R48. Rear: 9.5R48Reference

2WD Optional tires (ag)Front: 7.50-16. Rear: 13.6-38Reference

2WD Optional tires (ag)Front: 7.50-20. Rear: 9.5R48Reference

2WD Optional tires (ag)Front: 7.50-20. Rear: 380/80R38Reference

2WD Optional tires (ag)Front: 13.6-38. Rear: 13.6-38 (4WD)Reference

Length412 cmReference

Width167 cmReference

Height (ROPS)281 cmReference

Height (cab)273 cmReference

Ground clearance68 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
