Tractor · 2013Unverified

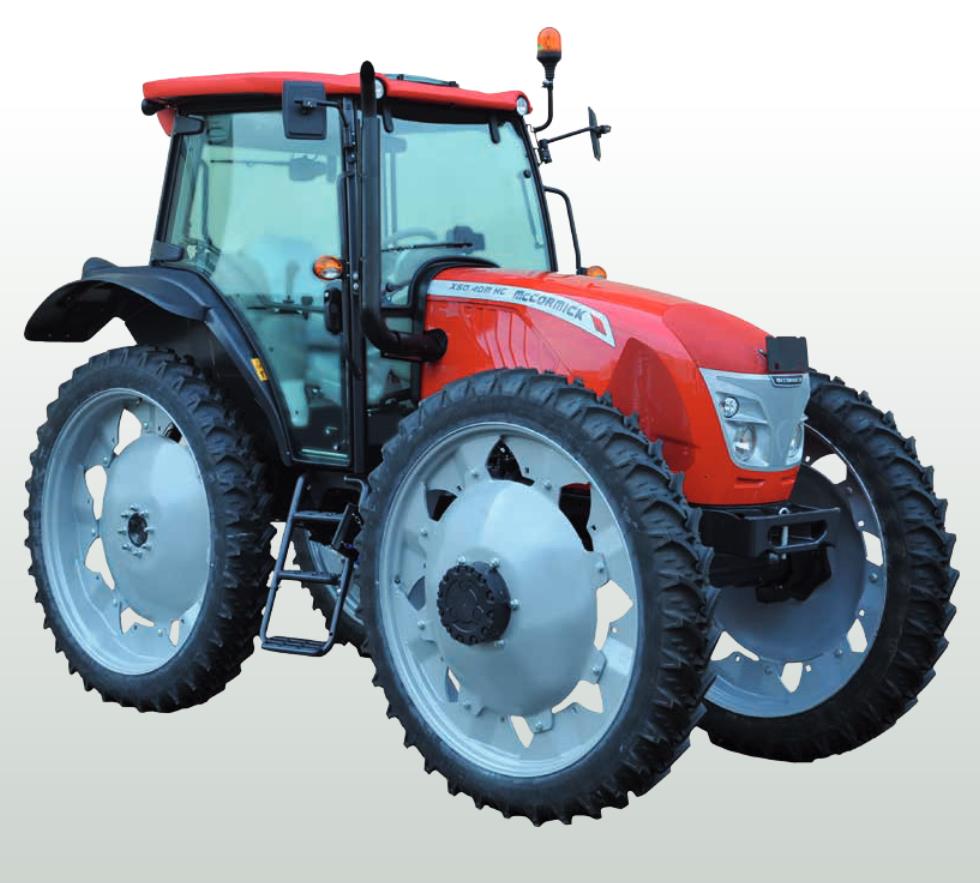

McCormick Intl X50.30m High Clear
McCormick Intl X50.30m High Clear — X50 Series · 82 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Weight
3460 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
High-Clearance tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with optional air-conditioning.Reference
Variants
X50.30mutilityReference
X50.20m HChigh-cropReference
Engine
Perkins 3.4L 4-cyl dieselReference
Fuel tank102.2 LReference
Engine70.8 kWReference
Perkins 854E-E34TAReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 109 mmReference
EmissionsInterim Tier IVReference
Power70.8 kWReference
Compression17:1Reference
Rated RPM2200Reference
Torque393.2 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch304.8 mm mechanical dry discReference
PTO & Hydraulics
PTO (claimed)60.8 kWReference
Pressure180.0 barReference
Valves2Reference
SCV flow52.2 lpmReference
Total flow82.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4340 kgReference
Rear PTOindependentReference
Rear PTO Type540/750 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase225 cmReference
4WD Wheelbase223 cmReference
Weight3460 kgReference
Front tire9.5R48Reference
Rear tire9.5R48Reference
Standard tires (ag)Front: 9.5R48. Rear: 9.5R48Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 13.6-38Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 9.5R48Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 380/80R38Reference
2WD Optional tires (ag)Front: 13.6-38. Rear: 13.6-38 (4WD)Reference
Length412 cmReference
Width167 cmReference
Height (ROPS)281 cmReference
Height (cab)273 cmReference
Ground clearance68 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
