Tractor · 2014Unverified

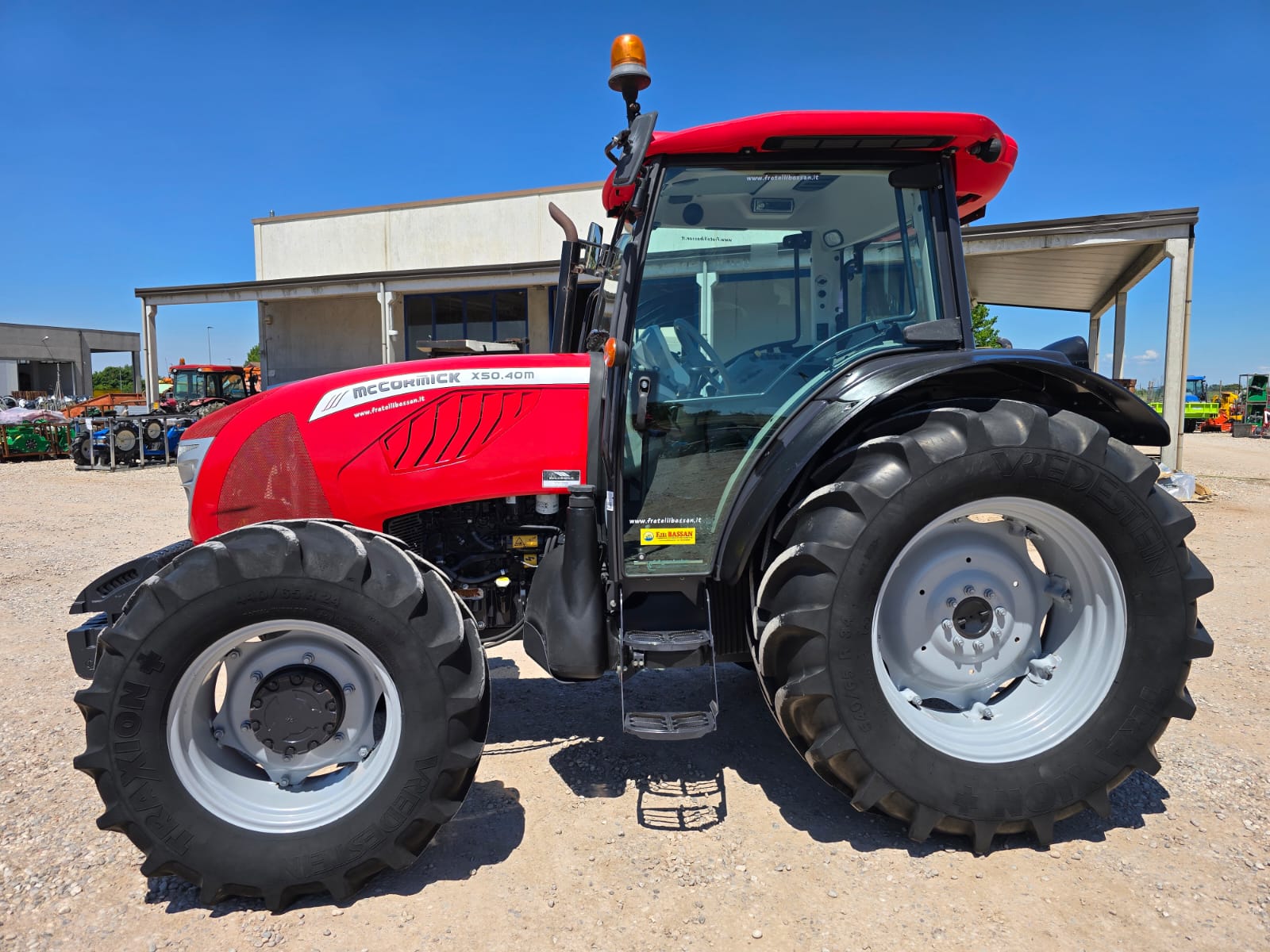

McCormick Intl X50.40m

Name: McCormick Intl X50.40m
Brand: McCormick Intl

McCormick Intl X50.40m — X50 Series · 88 hp. Reference specifications; pending source verification.

The McCormick Intl X50.40m is a tractor with an engine rating of approximately 88 horsepower, a typical power output for its class. It was manufactured in 2014. This tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, combined with a four-wheel drive system and hydrostatic transmission. Its operating weight is listed at 3442 kg, and it is designed for use on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

88 hp

Weight

3442 kg

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

88 hp

Recorded weight

3442 kg

Transmissions

12-speed mechanical shuttle

Production years

2014-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Utility tractorReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulicReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulic (optional)Reference

Variants

X50.40mutilityReference

X50.40m HChigh-cropReference

Engine

Perkins 3.4L 4-cyl dieselReference

Fuel tank102.2 LReference

Perkins 854E-E34TAReference

turbocharged aftercooled dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsInterim Tier 4Reference

Emission controlexhaust gas recirculation (EGR)Reference

Maximum Power76.1 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Compression17:1Reference

Rated RPM2200Reference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

24-speed mechanical shuttleReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

Gears24 forward and 12 reverseReference

PTO & Hydraulics

PTO (claimed)65.6 kWReference

Valves2Reference

Pump flow52.2 lpmReference

Total flow81.8 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2585 kgReference

Rear lift3692 kgReference

Rear PTOindependentReference

Rear PTO Type540/750 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

2WD Wheelbase233 cmReference

4WD Wheelbase231 cmReference

Weight3442 kgReference

Front tire12.4-24Reference

Rear tire18.4-30Reference

Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference

Length413 cmReference

Width206 cmReference

Height (ROPS)254 cmReference

Height (cab)248 cmReference

Ground clearance40 cmReference

Front tread175 to 215 cmReference

Rear tread160 to 200 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
