Tractor · 2015Unverified

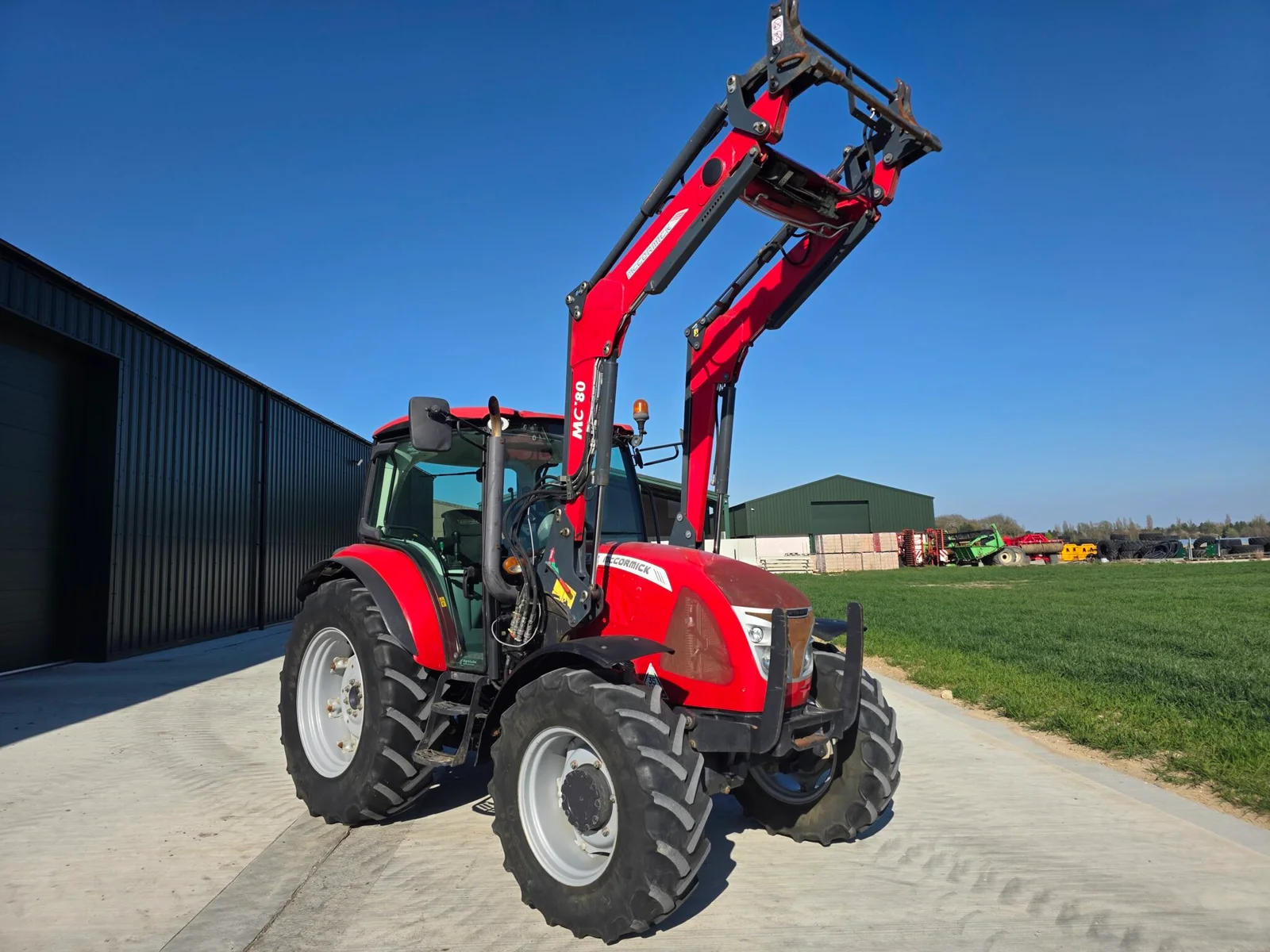

McCormick Intl X5.40

Name: McCormick Intl X5.40
Brand: McCormick Intl

McCormick Intl X5.40 — X5 Series · 89 hp. Reference specifications; pending source verification.

The McCormick Intl X5.40 tractor has a rated power output of 89 hp, positioning it in the middle of its class in terms of power. This model was manufactured in 2015. It features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a powershift transmission and four-wheel drive system. The tractor's listed weight falls within the range of 7930 to 8598 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

89 hp

Weight

7930 to 8598 pounds

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

89 hp

Recorded weight

3597 kg

Transmissions

12-speed

Production years

2015-2015

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Utility tractorReference

Built in ItalyReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab available with air-conditioning.Reference

Engine

Perkins 3.4L 4-cyl dieselReference

ROPS Fuel tank103.0 LReference

Cab Fuel tank121.1 LReference

Engine78.3 kWReference

Perkins 854E-E34TAReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsInterim Tier IVReference

Emission controlexhaust gas recirculation (EGR)Reference

Power78.3 kWReference

Power84.3 kWReference

Fuel systemcommon railReference

Compression17:1Reference

Rated RPM2200Reference

Torque450.2 NmReference

Torque RPM1400Reference

StarterelectircReference

Starter volts12Reference

Transmission

12-speedReference

36-speed three-speed power shiftReference

TransmissionSpeed FourReference

Gears12 forward and reverseReference

Clutch330mm mechanical dry discReference

TransmissionXtrashiftReference

Typethree-speed power shiftReference

Gears36 forward and 12 reverseReference

Clutchwet discReference

PTO & Hydraulics

PTO (claimed)66.0 kWReference

PTO (claimed)72.7 kWReference

Typeopen centerReference

Pressure179.3 barReference

Valves2 to 4Reference

Pump flow62.8 lpmReference

Steering flow29.9 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift4740 kgReference

Front HitchIIReference

Front lift2100 kgReference

Rear PTOindependentReference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Rear PTO Type540/750/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase231 cmReference

Weight7930 to 8598 poundsReference

Front tire380/70R24Reference

Rear tire480/70R34Reference

Ag front380/70R24Reference

Ag rear480/70R34Reference

Length414 cmReference

Width212 cmReference

Height (ROPS)256 cmReference

Height (cab)267 cmReference

ROPS Weight3597 kgReference

Cab Weight3900 kgReference

Flange rear axleReference

Front tread142 to 196 cmReference

Rear tread166 to 200 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
