Tractor · 2011Unverified

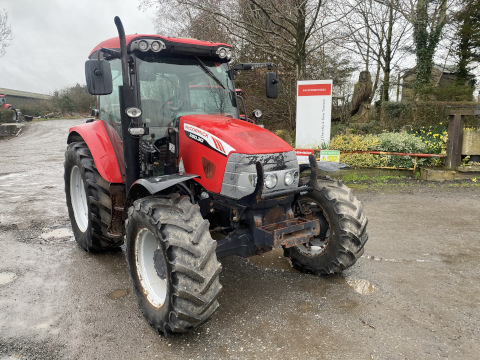

McCormick Intl X60.30
McCormick Intl X60.30 — X60 Series · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
4199 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Trailer brakespneumatic (optional)Reference
Cab standard. Optional air-conditioning.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine76.1 kWReference
Perkins 1104D-44TAReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier 3Reference
Power76.1 kWReference
Torque416.0 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
36-speedReference
48-speedReference
TransmissionXtrashiftReference
Gears36 forward and 12 reverseReference
Clutchwet discsReference
Gears48 forward and 16 reverseReference
PTO & Hydraulics
PTO (claimed)68.5 kWReference
Valves3 to 5Reference
Pump flow60.0 lpmReference
Steering flow29.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4998 kgReference
Front HitchoptionalReference
Front lift2500 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/750Reference
Rear PTO Type540/1000Reference
Rear PTO Type540/750/1000Reference
Front PTOindependent (optional)Reference
Front PTO Type1000Reference
Dimensions
Wheelbase245 cmReference
Weight4199 kgReference
Front tire440/65R24Reference
Rear tire540/65R34Reference
Standard tires (ag)Front: 440/65R24. Rear: 540/65R34Reference
Length439 cmReference
Width234 cmReference
Height (cab)274 cmReference
Ground clearance41 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
