Tractor · 2011Unverified

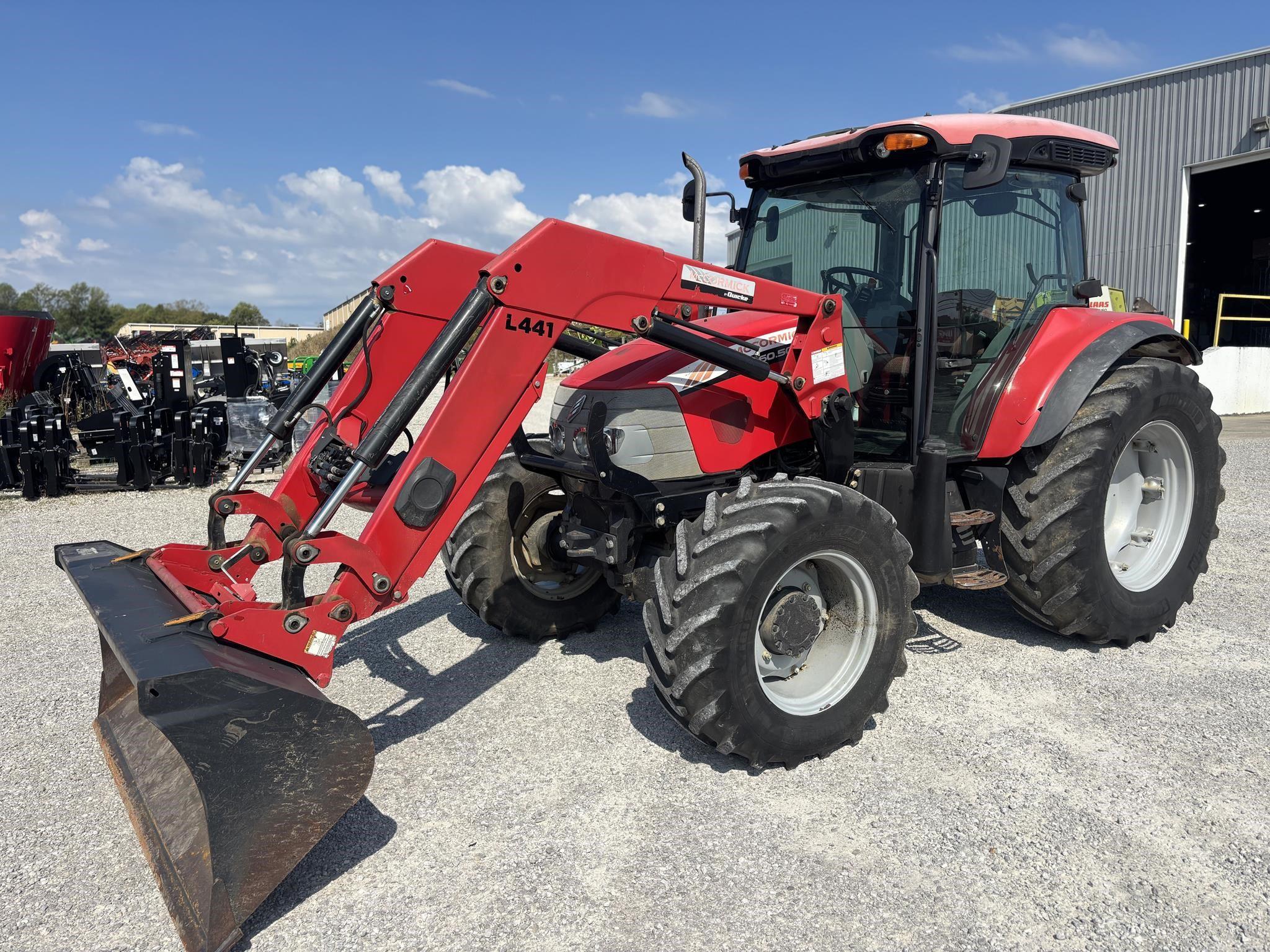

McCormick Intl X60.40

Name: McCormick Intl X60.40
Brand: McCormick Intl

McCormick Intl X60.40 — X60 Series · 99 hp. Reference specifications; pending source verification.

The McCormick Intl X60.40 is a tractor with a rated output of 99 hp, a power rating typical of its class. It was manufactured from 2011 to 2014. The X60.40 features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. Its listed weight is 4199 kg, and it is suited for tasks covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

99 hp

Weight

4199 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

99 hp

Recorded weight

4199 kg

Transmissions

36-speed

Production years

2011-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Trailer brakeshydraulic (optional)Reference

Trailer brakespneumatic (optional)Reference

Cab standard. Optional air-conditioning.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank180.2 LReference

Engine82.0 kWReference

Perkins 1104D-44TAReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier 3Reference

Power82.0 kWReference

Torque410.1 NmReference

StarterelectricReference

Starter volts12Reference

Transmission

36-speedReference

48-speedReference

TransmissionXtrashiftReference

Gears36 forward and 12 reverseReference

Clutchwet discsReference

Gears48 forward and 16 reverseReference

PTO & Hydraulics

PTO (claimed)73.8 kWReference

Valves3 to 5Reference

Pump flow60.0 lpmReference

Steering flow29.9 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift4998 kgReference

Front HitchoptionalReference

Front lift2500 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Rear PTO Type540/750/1000Reference

Front PTOindependent (optional)Reference

Front PTO Type1000Reference

Dimensions

Wheelbase245 cmReference

Weight4199 kgReference

Front tire440/65R24Reference

Rear tire540/65R34Reference

Standard tires (ag)Front: 440/65R24. Rear: 540/65R34Reference

Length439 cmReference

Width234 cmReference

Height (cab)274 cmReference

Ground clearance41 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
