Tractor · 2014Unverified

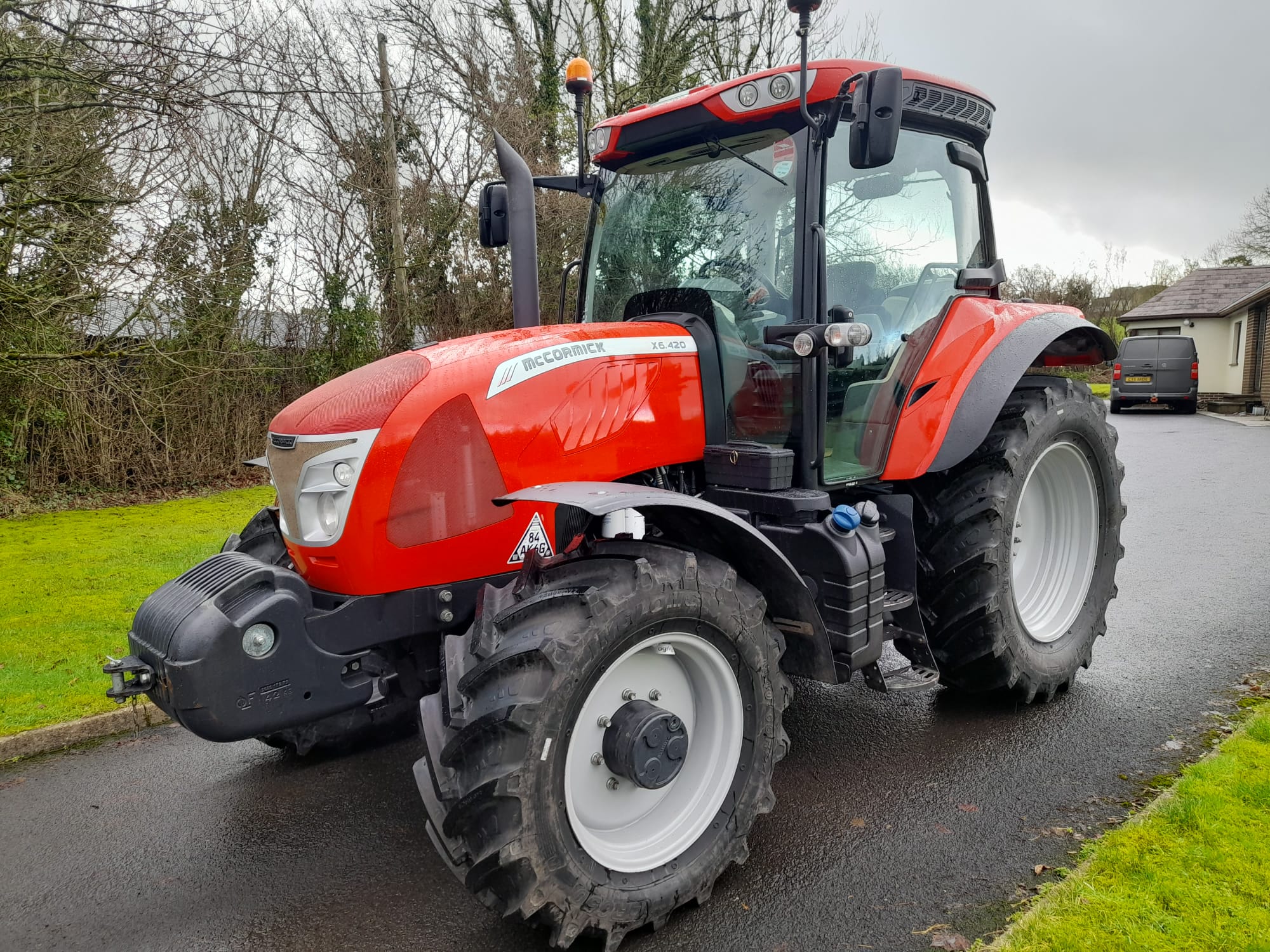

McCormick Intl X6.420

Name: McCormick Intl X6.420
Brand: McCormick Intl

McCormick Intl X6.420 — X6 Series · 114 hp. Reference specifications; pending source verification.

The McCormick Intl X6.420 is a tractor rated at 114 hp, positioned in the middle of its class in terms of power output. It was manufactured in 2014 with a 4-cylinder turbocharged diesel liquid-cooled engine, and features a four-wheel drive system with a continuously variable transmission. The tractor has a listed weight of 4700 kg, and is suited for use on areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

114 hp

Weight

4700 kg

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

114 hp

Recorded weight

4700 kg

Transmissions

36-speed three-speed power shift

Production years

2014-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning. Climate control and air-suspended seat available (standard on LS). Mechanical cab suspension available on LS.Reference

Engine

BetaPower 4.5L 4-cyl dieselReference

Fuel tank180.2 LReference

Exhaust fluid (DEF)25.0 LReference

Engine85.0 kWReference

BetaPowerReference

turbocharged air-to-air cooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsInterim Tier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Power85.0 kWReference

Maximum Power90.2 kWReference

Fuel systemelectronic high pressure common railReference

Rated RPM2200Reference

Torque495.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

36-speed three-speed power shiftReference

48-speed creeperReference

continuously variable transmission (CVT)Reference

TransmissionXtrashiftReference

Typethree-speed power shiftReference

Gears36 forward and 12 reverseReference

Clutchwet discReference

Four gears in three ranges with three-speed power shift and power shuttle.Reference

TypecreeperReference

Gears48 forward and 16 reverseReference

TransmissionVT-DriveReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

STD Typeopen centerReference

LS Typeclosed centerReference

Pressure200.0 barReference

Valves3 to 5Reference

STD Pump flow65.9 lpmReference

LS Pump flow110.1 lpmReference

Steering flow37.9 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift5400 kgReference

Front HitchIIReference

Front lift2500 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000/1000EReference

Front PTOindependentReference

Clutchelectro-hydraulicReference

Front PTO Type1000Reference

Dimensions

Wheelbase254 cmReference

Weight4700 kgReference

Front tire480/65R24Reference

Rear tire540/65R38Reference

Ag front480/65R24Reference

Ag rear540/65R38Reference

Length439 cmReference

Width205 cmReference

Height (cab)280 cmReference

Ground clearance41 cmReference

Front axleHydraulic suspensionReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
