Tractor · 2014Unverified

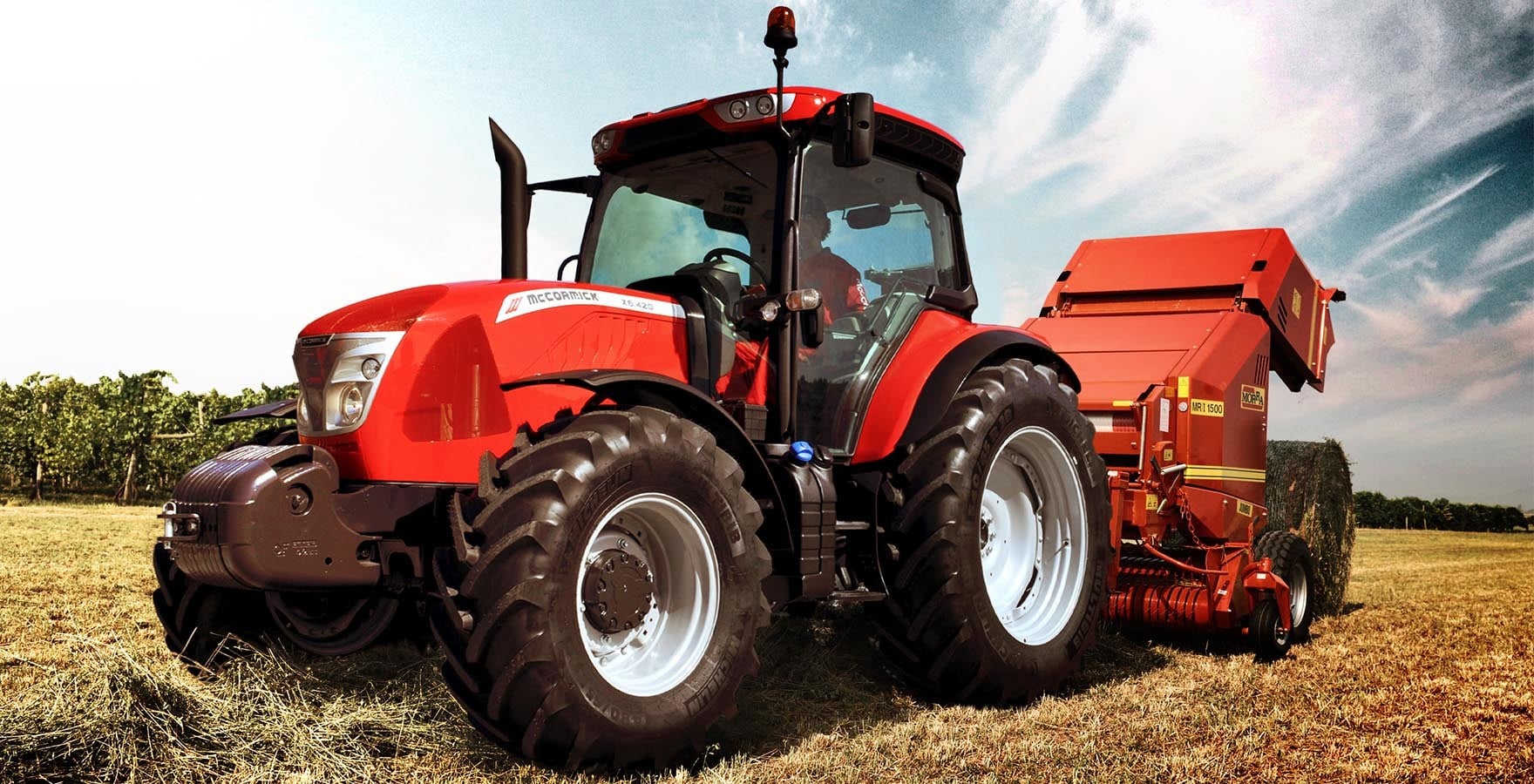

McCormick Intl X6.430
McCormick Intl X6.430 — X6 Series · 121 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
121 hp
Weight
4700 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning. Climate control and air-suspended seat available (standard on LS). Mechanical cab suspension available on LS.Reference
Engine
BetaPower 4.5L 4-cyl dieselReference
Fuel tank180.2 LReference
Exhaust fluid (DEF)25.0 LReference
Engine90.2 kWReference
BetaPowerReference
turbocharged air-to-air cooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power90.2 kWReference
Maximum Power99.2 kWReference
Fuel systemelectronic high pressure common railReference
Rated RPM2200Reference
Torque545.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
36-speed three-speed power shiftReference
48-speed creeperReference
continuously variable transmission (CVT)Reference
TransmissionXtrashiftReference
Typethree-speed power shiftReference
Gears36 forward and 12 reverseReference
Clutchwet discReference
Four gears in three ranges with three-speed power shift and power shuttle.Reference
TypecreeperReference
Gears48 forward and 16 reverseReference
TransmissionVT-DriveReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
STD Typeopen centerReference
LS Typeclosed centerReference
Pressure200.0 barReference
Valves3 to 5Reference
STD Pump flow65.9 lpmReference
LS Pump flow110.1 lpmReference
Steering flow37.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift5400 kgReference
Front HitchIIReference
Front lift2500 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000/1000EReference
Front PTOindependentReference
Clutchelectro-hydraulicReference
Front PTO Type1000Reference
Dimensions
Wheelbase254 cmReference
Weight4700 kgReference
Front tire480/65R24Reference
Rear tire540/65R38Reference
Ag front480/65R24Reference
Ag rear540/65R38Reference
Length439 cmReference
Width205 cmReference
Height (cab)280 cmReference
Ground clearance41 cmReference
Front axleHydraulic suspensionReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
