Tractor · 2014Unverified

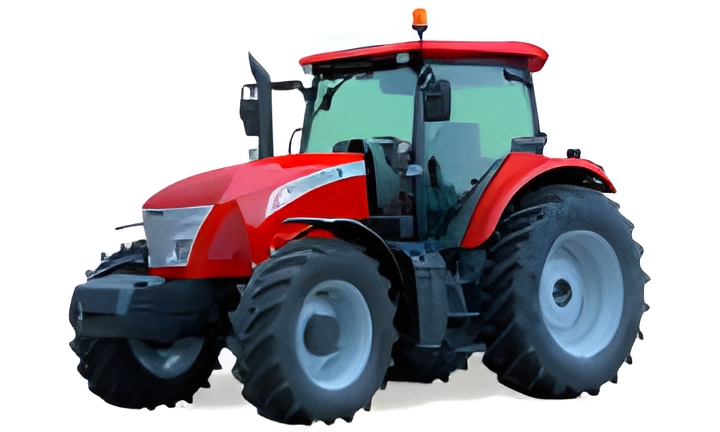

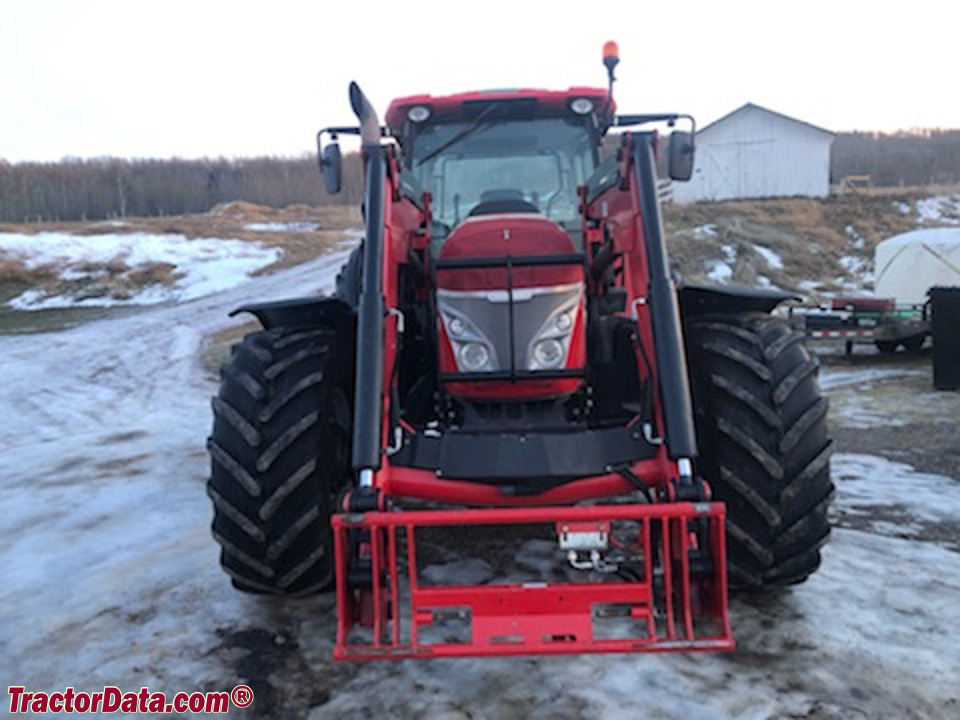

McCormick Intl X6.470

Name: McCormick Intl X6.470
Brand: McCormick Intl

McCormick Intl X6.470 — X6 Series · 150 hp. Reference specifications; pending source verification.

The McCormick Intl X6.470 is a tractor model with a rating of 150 hp, positioning it among the higher-powered machines in its class. Manufactured in 2014, the X6.470 features a 4-cylinder diesel liquid-cooled engine and a four-wheel drive system with an 18-speed gearbox. The tractor's listed weight is 5987 kg. It is designed for use on land areas of approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

150 hp

Weight

5987 kg

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

150 hp

Recorded weight

5987 kg

Transmissions

18-speed

Production years

2014-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning. Optional pneumatic seat suspension.Reference

Engine

BetaPower 4.5L 4-cyl dieselReference

Fuel tank269.9 LReference

Exhaust fluid (DEF)37.9 LReference

Engine (gross)111.9 kWReference

Engine (max)121.5 kWReference

BetaPowerReference

dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsInterim Tier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)111.9 kWReference

Maximum Power (gross)121.5 kWReference

Rated RPM2200Reference

Torque676.1 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

18-speedReference

54-speedReference

Gears18 forward and reverseReference

Clutchdry discReference

TransmissionT-TronicReference

Gears54 forward and 18 reverseReference

PTO & Hydraulics

Valves3 to 5Reference

Pump flow87.1 lpmReference

Rear TypeIII/IIReference

Controlposition and draft controlReference

Rear lift8382 kgReference

Front HitchIIReference

Front lift3492 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase271 cmReference

Weight5987 kgReference

Front tire480/65R28Reference

Rear tire650/65R38Reference

Ag front480/65R28Reference

Ag rear650/65R38Reference

Length525 cmReference

Width220 cmReference

Height (cab)279 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
