Tractor · 2012Unverified

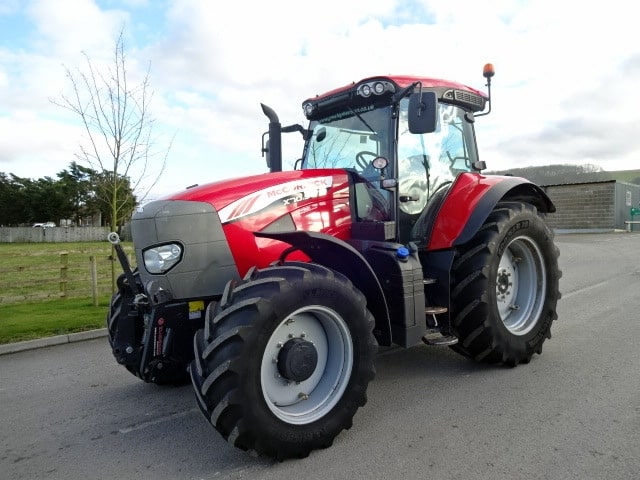

McCormick Intl X70.50

Name: McCormick Intl X70.50
Brand: McCormick Intl

McCormick Intl X70.50 — X70 Series · 165 hp. Reference specifications; pending source verification.

The McCormick Intl X70.50 is a tractor model with a power output of 165 hp, positioning it among the higher-powered machines in its class. Manufactured in 2012, this model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. The X70.50 has a listed weight of 6500 kg and is designed to handle tasks on areas of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

165 hp

Weight

6500 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

165 hp

Recorded weight

6500 kg

Transmissions

32-speed eight-speed power shift

Production years

2012-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Row-Crop tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Differential locklimited-slip frontReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Cab standard with air-conditioning. Optional electro-hydraulic cab suspension.Reference

Engine

BetaPower 6.7L 6-cyl dieselReference

Fuel tank300.0 LReference

Exhaust fluid (DEF)37.9 LReference

Engine123.0 kWReference

BetaPowerReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsInterim Tier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Power123.0 kWReference

Maximum Power140.2 kWReference

Fuel systemhigh pressure common railReference

Rated RPM2200Reference

Torque682.1 NmReference

StarterelectricReference

Starter volts12Reference

Transmission

32-speed eight-speed power shiftReference

48-speedReference

TransmissionXtraspeedReference

Typeeight-speed power shiftReference

Gears32 forward and 24 reverseReference

TransmissionXtraspeed CreeperReference

Gears48 forward and 40 reverseReference

PTO & Hydraulics

Valves3 to 4Reference

Pump flow110.1 lpmReference

Rear lift7198 kgReference

Front HitchoptionalReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Front PTOindependent (optional)Reference

Dimensions

Wheelbase275 cmReference

Weight6500 kgReference

Front tire420/85R28Reference

Rear tire520/85R38Reference

Standard tires (ag)Front: 420/85R28. Rear: 520/85R38Reference

Length520 cmReference

Width240 cmReference

Height (cab)290 cmReference

Ground clearance50 cmReference

Front axle4WDReference

Front axle4WD hydraulic suspensionReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
