Tractor · 2012Unverified

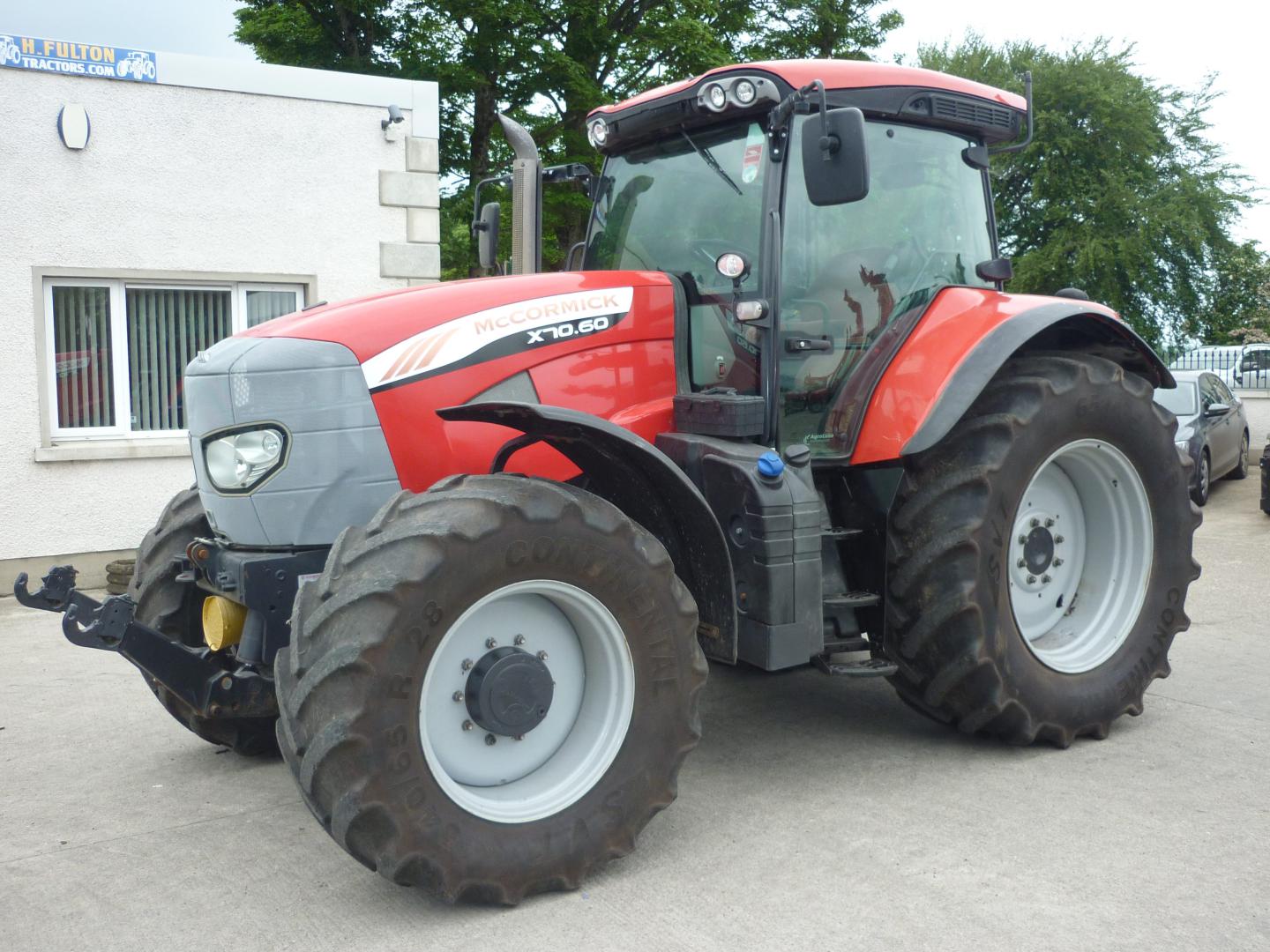

McCormick Intl X70.60
McCormick Intl X70.60 — X70 Series · 175 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
175 hp
Weight
6500 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Differential locklimited-slip frontReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning. Optional electro-hydraulic cab suspension.Reference
Engine
BetaPower 6.7L 6-cyl dieselReference
Fuel tank300.0 LReference
Exhaust fluid (DEF)37.9 LReference
Engine130.5 kWReference
BetaPowerReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power130.5 kWReference
Maximum Power151.4 kWReference
Fuel systemhigh pressure common railReference
Rated RPM2200Reference
Torque726.1 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
32-speed eight-speed power shiftReference
48-speedReference
TransmissionXtraspeedReference
Typeeight-speed power shiftReference
Gears32 forward and 24 reverseReference
TransmissionXtraspeed CreeperReference
Gears48 forward and 40 reverseReference
PTO & Hydraulics
Valves3 to 4Reference
Pump flow110.1 lpmReference
Rear lift7198 kgReference
Front HitchoptionalReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Front PTOindependent (optional)Reference
Dimensions
Wheelbase275 cmReference
Weight6500 kgReference
Front tire420/85R28Reference
Rear tire520/85R38Reference
Standard tires (ag)Front: 420/85R28. Rear: 520/85R38Reference
Length520 cmReference
Width240 cmReference
Height (cab)290 cmReference
Ground clearance50 cmReference
Front axle4WDReference
Front axle4WD hydraulic suspensionReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
