Tractor · 2012Unverified

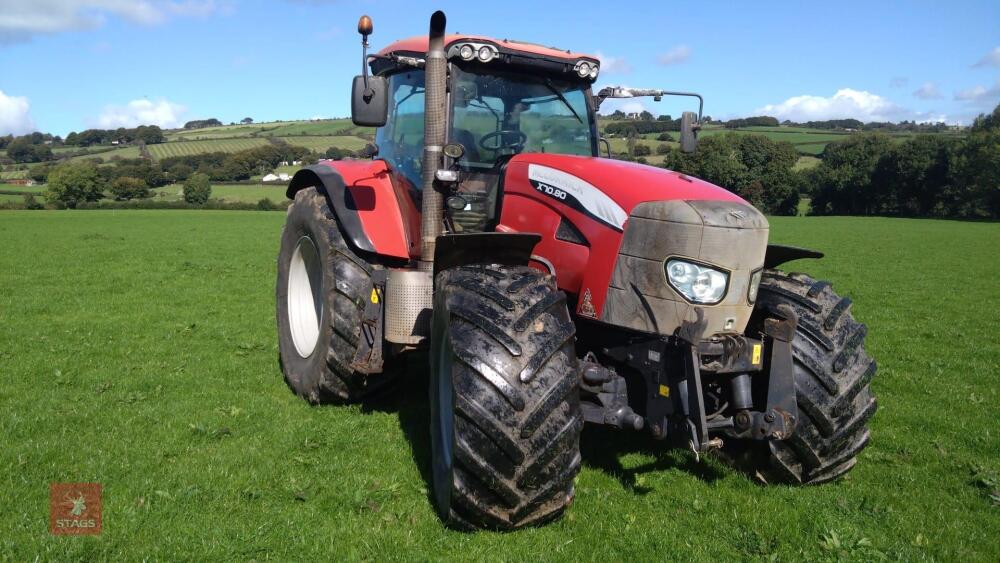

McCormick Intl X70.80
McCormick Intl X70.80 — X70 Series · 214 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
214 hp
Weight
7702 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Differential locklimited-slip frontReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning. Optional electro-hydraulic cab suspension.Reference
Engine
BetaPower 6.7L 6-cyl dieselReference
Fuel tank350.1 LReference
Exhaust fluid (DEF)37.9 LReference
Engine159.6 kWReference
BetaPowerReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power159.6 kWReference
Maximum Power173.0 kWReference
Fuel systemhigh pressure common railReference
Rated RPM2200Reference
Torque912.2 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
32-speed eight-speed power shiftReference
48-speedReference
TransmissionXtraspeedReference
Typeeight-speed power shiftReference
Gears32 forward and 24 reverseReference
TransmissionXtraspeed CreeperReference
Gears48 forward and 40 reverseReference
PTO & Hydraulics
Valves3 to 4Reference
Pump flow129.8 lpmReference
Pump flow163.1 lpmReference
Rear TypeIIIReference
Rear lift10949 kgReference
Front HitchoptionalReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Front PTOindependent (optional)Reference
Dimensions
Wheelbase287 cmReference
Weight7702 kgReference
Front tire540/65R30Reference
Rear tire650/65R42Reference
Standard tires (ag)Front: 540/65R30. Rear: 650/65R42Reference
Length530 cmReference
Width241 cmReference
Height (cab)299 cmReference
Ground clearance46 cmReference
Front axle4WDReference
Front axle4WD hydraulic suspensionReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
