Tractor · 2013Unverified

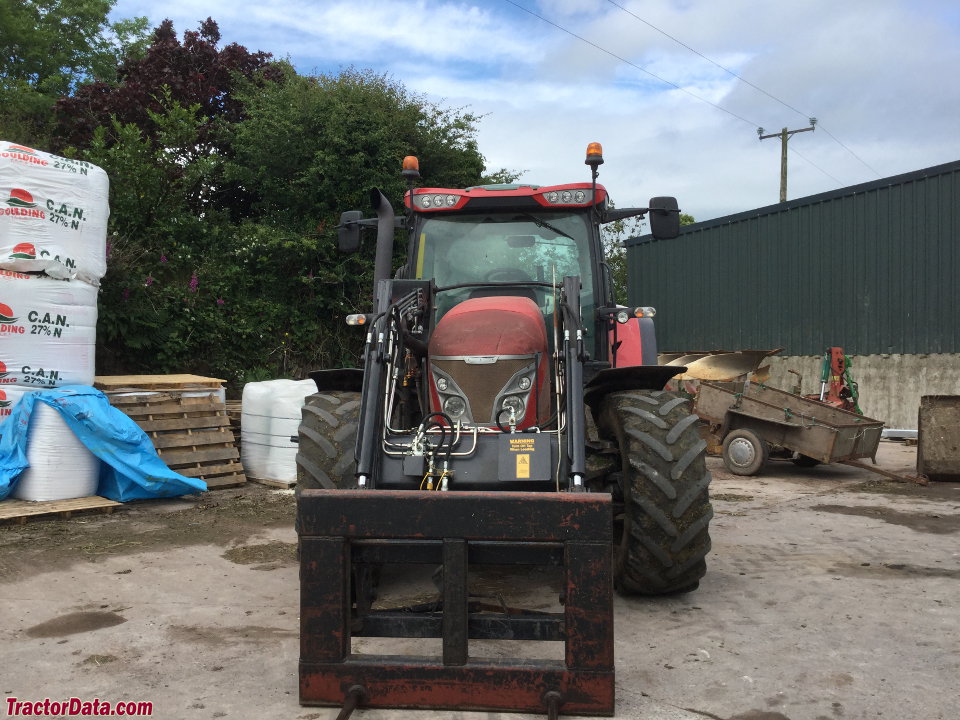

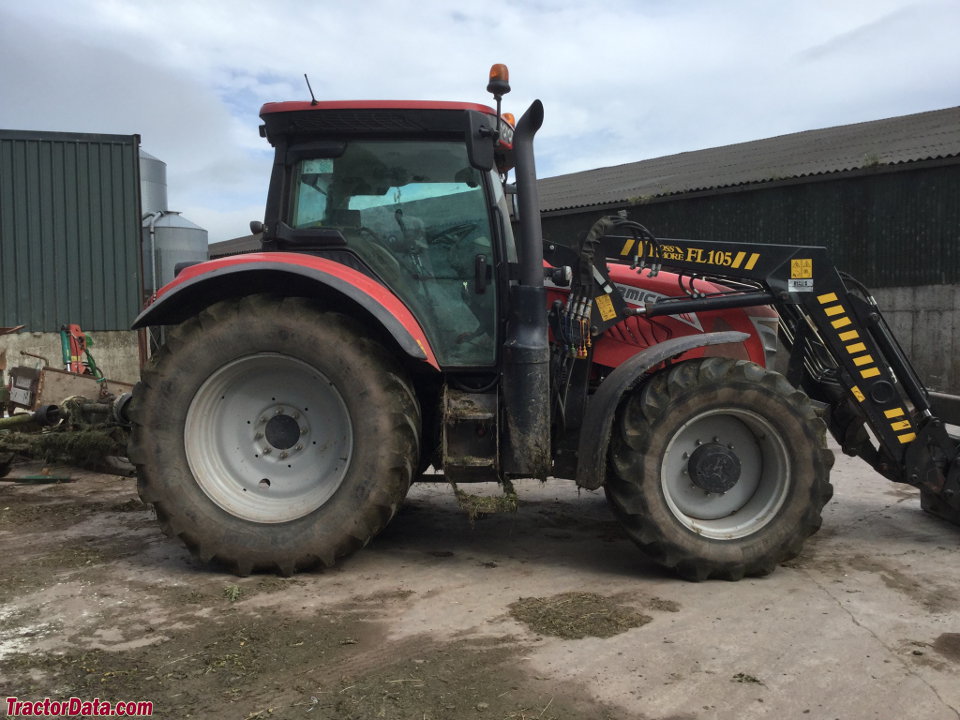

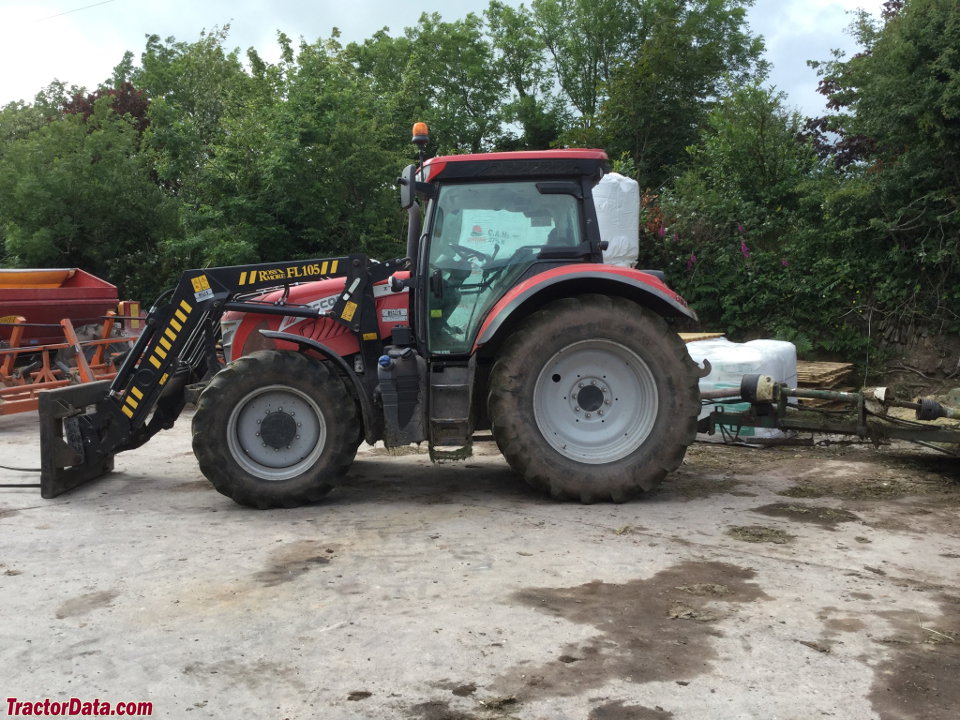

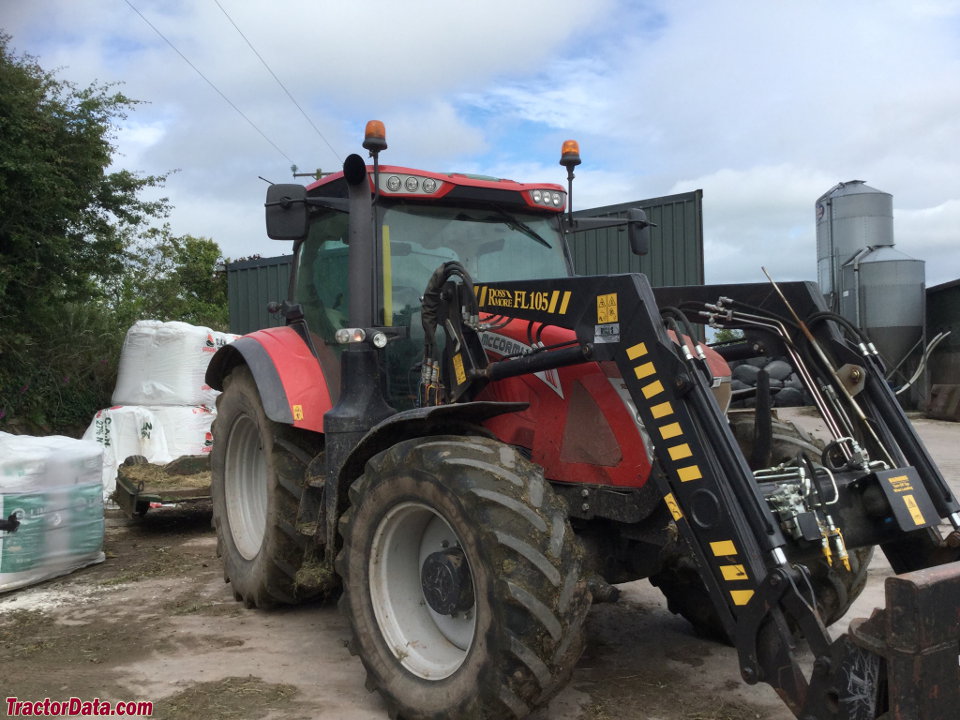

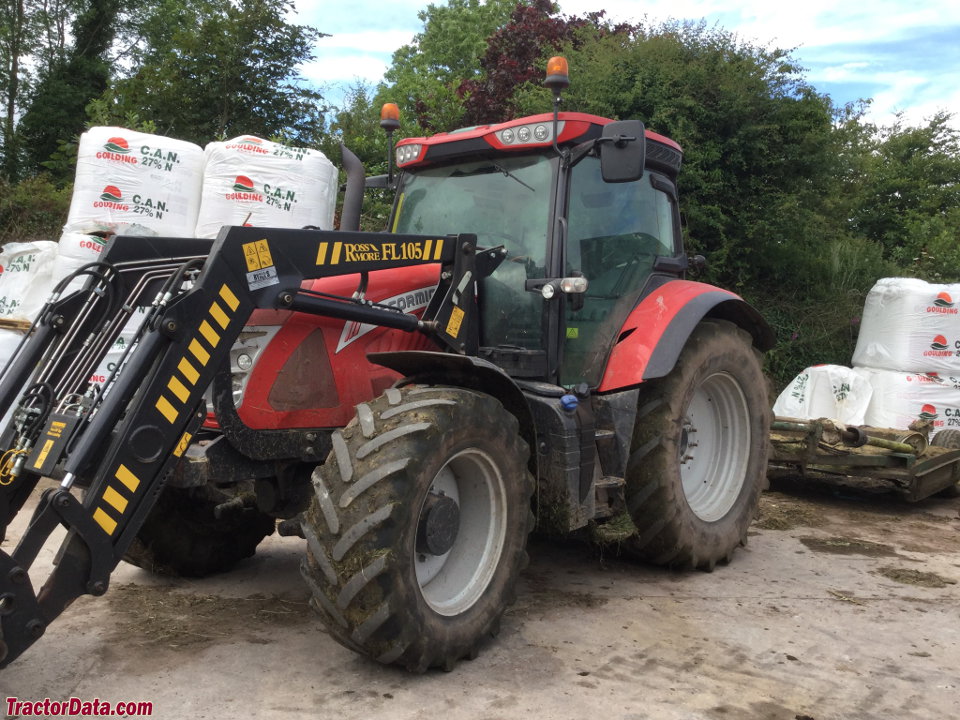

McCormick Intl X7.440
McCormick Intl X7.440 — X7.4 Series · 131 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
131 hp
Weight
5751 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Trailer brakespneumatic (optional)Reference
Cab standard with air-conditioning. Optional electro-hydraulic cab suspension.Reference
Engine
BetaPower 4.5L 4-cyl dieselReference
Fuel tank280.1 LReference
Exhaust fluid (DEF)37.9 LReference
Engine97.7 kWReference
BetaPowerReference
turbocharged air-to-air intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power97.7 kWReference
Maximum Power106.6 kWReference
Fuel systemelectronic high-pressure common railReference
Compression17.1:1Reference
Rated RPM2200Reference
Torque590.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed four-speed power shiftReference
40-speedReference
TransmissionPro DriveReference
Typefour-speed power shiftReference
Gears24 forward and reverseReference
Clutchwet discsReference
TransmissionPro Drive CreeperReference
Gears40 forward and reverseReference
PTO & Hydraulics
Typeclosed centerReference
Valves3 to 6Reference
Pump flow123.0 lpmReference
Steering flow43.9 lpmReference
Rear TypeIII/IIINReference
Controllower link draft sensingReference
Rear lift9298 kgReference
Front HitchoptionalReference
Front lift3499 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discsReference
Rear PTO Type540/540E/1000/1000E (1.375)Reference
Front PTOindependent (optional)Reference
Dimensions
Wheelbase260 cmReference
Weight5751 kgReference
Front tire540/65R28Reference
Rear tire650/65R38Reference
Standard tires (ag)Front: 540/65R28. Rear: 650/65R38Reference
Length303 cmReference
Width243 cmReference
Height (cab)292 cmReference
Ground clearance48 cmReference
Front axle4WDReference
Front axle4WD hydraulic suspensionReference
Flange rear axleReference
Bar rear axle (optional)Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
