Tractor · 2013Unverified

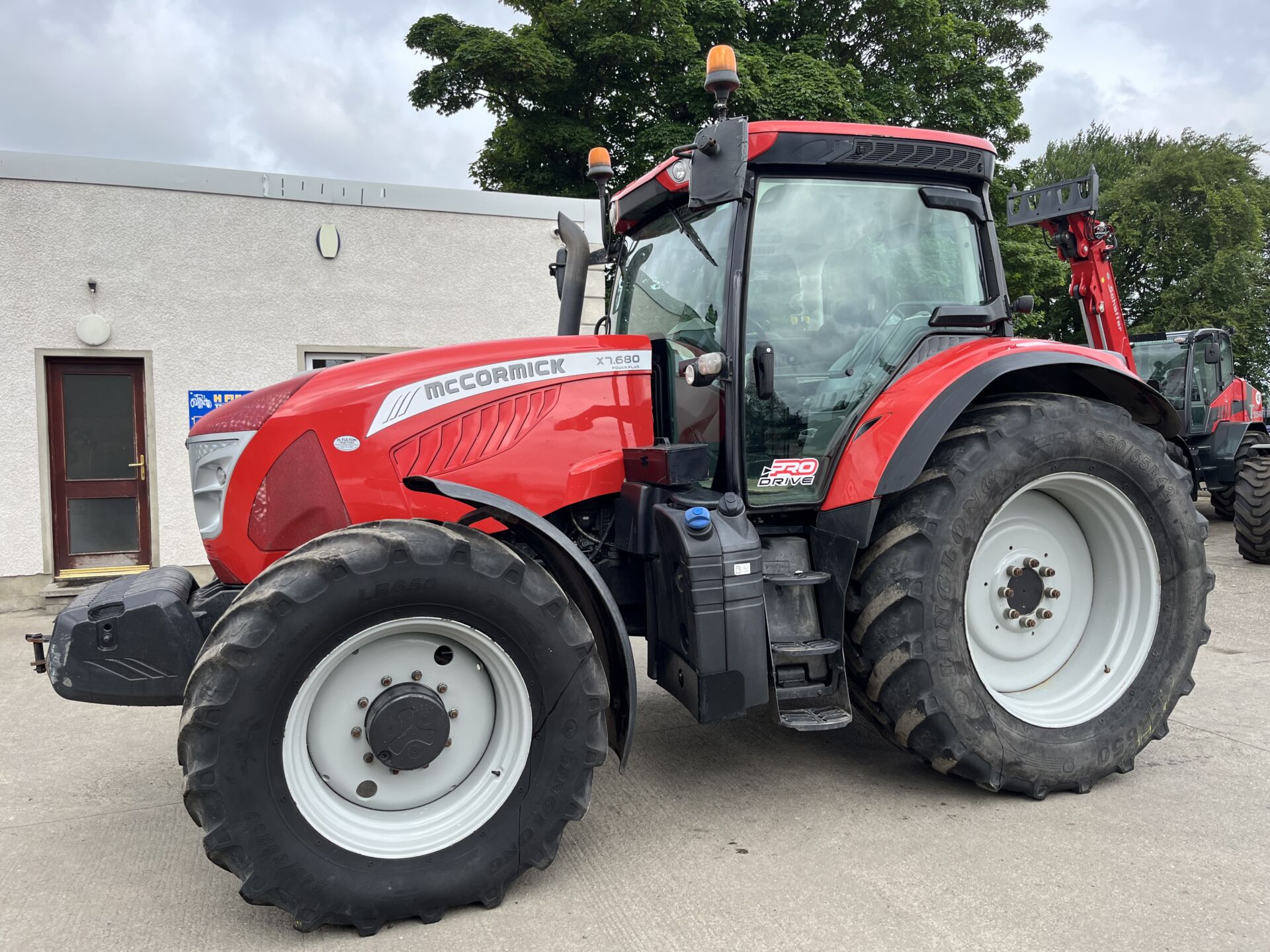

McCormick Intl X7.680

Name: McCormick Intl X7.680
Brand: McCormick Intl

McCormick Intl X7.680 — X7.6 Series · 175 hp. Reference specifications; pending source verification.

The McCormick Intl X7.680 is a tractor with a rating of 175 hp, positioning it in the higher-powered category within its class. Manufactured in 2013, this model is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, and it features four-wheel drive with a hydrostatic transmission. The listed weight of the McCormick Intl X7.680 is 7348 kg. It is designed for use in areas of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

175 hp

Weight

7348 kg

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

175 hp

Recorded weight

7348 kg

Transmissions

24-speed four-speed power shift

Production years

2013-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Row-Crop tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Trailer brakeshydraulic (optional)Reference

Trailer brakespneumatic (optional)Reference

Cab standard with air-conditioning. Optional electro-hydraulic cab suspension.Reference

Engine

BetaPower 6.7L 6-cyl dieselReference

Fuel tank319.8 LReference

Exhaust fluid (DEF)37.9 LReference

Engine130.5 kWReference

BetaPowerReference

turbocharged air-to-air intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsInterim Tier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Power130.5 kWReference

Maximum Power140.2 kWReference

Maximum Power158.1 kWReference

Fuel systemelectronic high-pressure common railReference

Compression17.1:1Reference

Rated RPM2200Reference

Torque810.1 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed four-speed power shiftReference

40-speedReference

TransmissionPro DriveReference

Typefour-speed power shiftReference

Gears24 forward and reverseReference

Clutchwet discsReference

TransmissionPro Drive CreeperReference

Gears40 forward and reverseReference

PTO & Hydraulics

Typeclosed centerReference

Valves3 to 6Reference

Pump flow123.0 lpmReference

Steering flow43.9 lpmReference

Rear TypeIIIReference

Controllower link draft sensingReference

Rear lift9298 kgReference

Front HitchoptionalReference

Front lift3499 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discsReference

Rear PTO Type540/540E/1000/1000E (1.375)Reference

Front PTOindependent (optional)Reference

Dimensions

Wheelbase281 cmReference

Weight7348 kgReference

Front tire540/65R30Reference

Rear tire650/65R42Reference

Standard tires (ag)Front: 540/65R30. Rear: 650/65R42Reference

Length535 cmReference

Width243 cmReference

Height (cab)305 cmReference

Ground clearance55 cmReference

Front axle4WDReference

Front axle4WD hydraulic suspensionReference

Flange rear axleReference

Bar rear axle (optional)Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
