Tractor · 2006Unverified

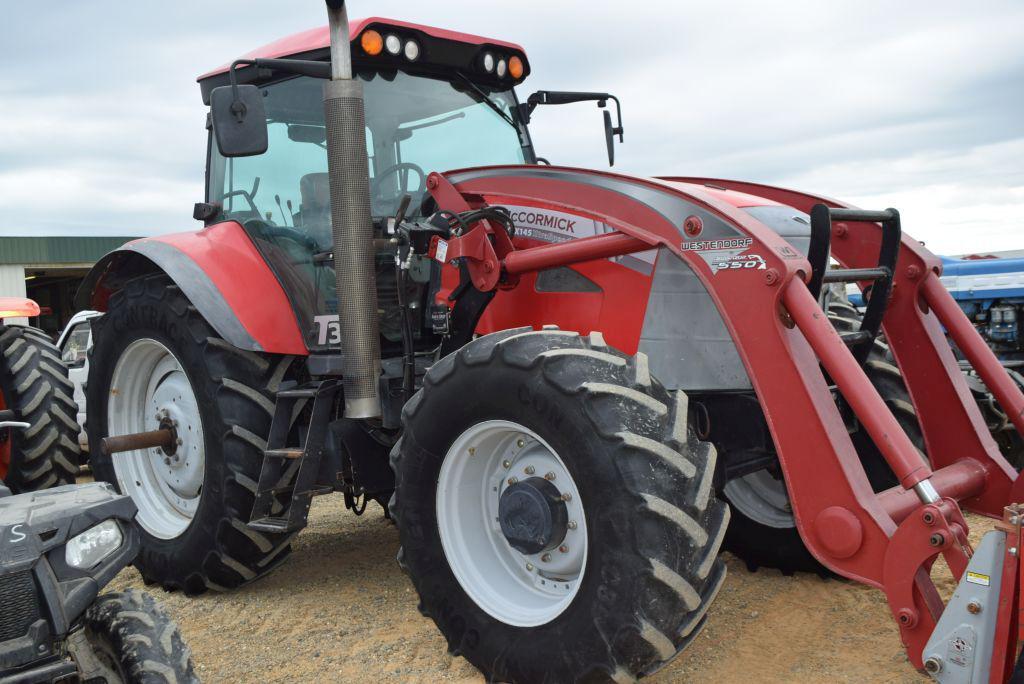

McCormick Intl XTX145

Name: McCormick Intl XTX145
Brand: McCormick Intl

McCormick Intl XTX145 — XTX Series · 156 hp. Reference specifications; pending source verification.

The McCormick Intl XTX145 is a tractor with a rated power output of 156 hp, positioning it within the higher-powered range of its class. This model was produced from 2006 to 2007 and features a 6-cylinder turbocharged diesel liquid-cooled engine. The tractor has a four-wheel drive system with a powershift transmission and a listed operating weight of 6500 kg. It is designed for use in areas ranging approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

156 hp

Weight

6500 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

156 hp

Recorded weight

6500 kg

Transmissions

32-speed 8-speed power shift

Production years

2006-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Row-Crop tractorReference

Built in Doncaster, EnglandReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with heat and air-conditioning. Optional hydraulic suspension.Reference

Engine

Iveco 6.7L 6-cyl dieselReference

Fuel tank299.0 LReference

Engine108.1 kWReference

Engine (boost)116.3 kWReference

IvecoReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IIIReference

Power108.1 kWReference

Boost Power116.3 kWReference

Rated RPM2200Reference

Torque631.9 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

32-speed 8-speed power shiftReference

48-speed partial power shiftReference

TransmissionXtraSpeedReference

Type8-speed power shiftReference

Gears32 forward and 24 reverseReference

Clutchwet discReference

Four ranges with eight power shift gears in each range. Power shuttle. XtraSpeed-E option provides push-button range shifting.Reference

TransmissionXtraSpeed CreeperReference

Typepartial power shiftReference

Gears48 forward and 40 reverseReference

Four ranges with eight power shift gears in each range plus creeper. Power shuttle.Reference

PTO & Hydraulics

PTO (claimed)99.9 kWReference

Typeclosed centerReference

Valves3 or 4Reference

Pump flow110.1 lpmReference

Rear TypeIIIReference

Rear lift8000 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

Wheelbase274 cmReference

Weight6500 kgReference

Rear tire600/65R38Reference

Ag rear600/65R38Reference

Length520 cmReference

Width248 cmReference

Height (cab)289 cmReference

Ground clearance50 cmReference

XTX145 Serial Number Location

Serial number plate in the lower-right side of the cab, below the dashboard.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
