Tractor · 2006Unverified

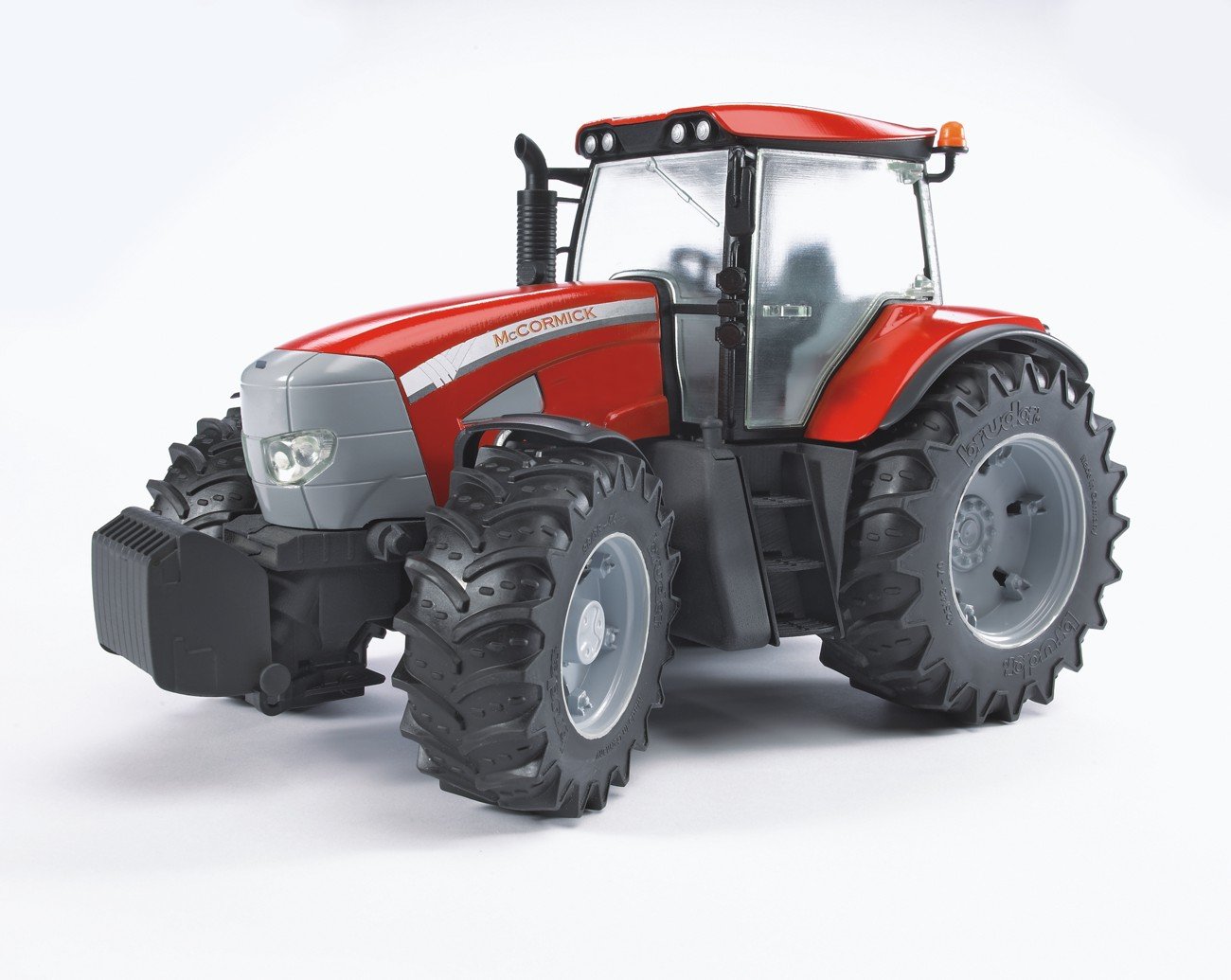

McCormick Intl XTX165
McCormick Intl XTX165 — XTX Series · 171 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
171 hp
Weight
6500 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Row-Crop tractorReference
Built in Doncaster, EnglandReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with heat and air-conditioning. Optional hydraulic suspension.Reference
Engine
Iveco 6.7L 6-cyl dieselReference
Fuel tank299.0 LReference
Engine120.8 kWReference
Engine (boost)127.5 kWReference
IvecoReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Power120.8 kWReference
Boost Power127.5 kWReference
Rated RPM2200Reference
Torque729.5 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
32-speed 8-speed power shiftReference
48-speed partial power shiftReference
TransmissionXtraSpeedReference
Type8-speed power shiftReference
Gears32 forward and 24 reverseReference
Clutchwet discReference
Four ranges with eight power shift gears in each range. Power shuttle. XtraSpeed-E option provides push-button range shifting.Reference
TransmissionXtraSpeed CreeperReference
Typepartial power shiftReference
Gears48 forward and 40 reverseReference
Four ranges with eight power shift gears in each range plus creeper. Power shuttle.Reference
PTO & Hydraulics
PTO (claimed)109.6 kWReference
Typeclosed centerReference
Valves3 or 4Reference
Pump flow110.1 lpmReference
Rear TypeIIIReference
Rear lift8000 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase274 cmReference
Weight6500 kgReference
Rear tire600/65R38Reference
Ag rear600/65R38Reference
Length520 cmReference
Width248 cmReference
Height (cab)289 cmReference
Ground clearance50 cmReference
XTX165 Serial Numbers
Location:Serial number plate in the lower-right side of the cab, below the dashboard.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
