Tractor · 2005Unverified

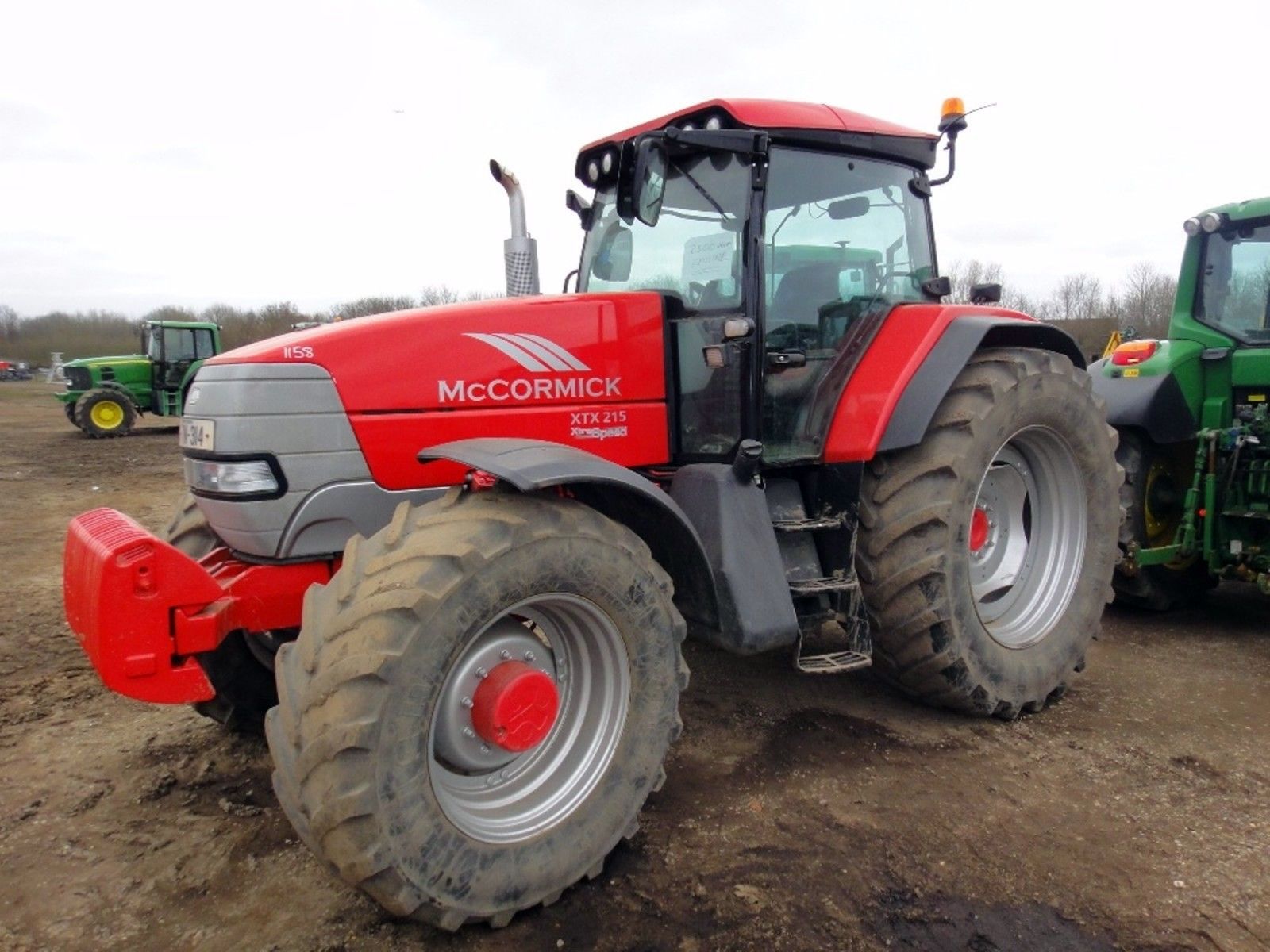

McCormick Intl XTX215
McCormick Intl XTX215 — XTX Series · 202 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
202 hp
Max power
153.3 kW
Weight
7262 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Row-Crop tractorReference
Built in Doncaster, EnglandReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Iveco 6.7L 6-cyl dieselReference
Cummins 5.9L 6-cyl dieselReference
Fuel tank347.1 LReference
Engine143.9 kWReference
Engine (boost)150.6 kWReference
Drawbar (tested)115.8 kWReference
IvecoReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
Power143.9 kWReference
Boost Power150.6 kWReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Cummins QSBReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Torque800.0 NmReference
Torque RPM1200Reference
Max power153.3 kWReference
Power at rated engine speed141.3 kWReference
Max power115.8 kWReference
Transmission
32-speed 8-speed power shiftReference
48-speedReference
TransmissionXtraSpeedReference
Type8-speed power shiftReference
Gears32 forward and 24 reverseReference
Four ranges with eight power shift gears in each range. Power shuttle. XtraSpeed-E option provides push-button range shifting.Reference
TransmissionXtraSpeed CreeperReference
Gears48 forward and 40 reverseReference
PTO & Hydraulics
PTO (tested)153.3 kWReference
TypePFCReference
Total flow129.1 lpmReference
Total flow163.1 lpmReference
Rear TypeIIIReference
Rear lift10951 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540E/1000Reference
Power at rated PTO speed152.0 kWReference
Dimensions
Wheelbase287 cmReference
Weight7262 kgReference
Front tire540/65R30Reference
Rear tire650/65R42Reference
Ag front540/65R30Reference
Ag rear650/65R42Reference
Length530 cmReference
Height302 cmReference
Operating weight7262 kgReference
Ballasted weight9183 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery volts12Reference
Test results
Iveco diesel 32-speed 4WDJune 8 - 15, 2006Link: OCED Tractor Test 1882 fileReference
PTO performanceReference
Fuel use42.8 l/hourReference
Fuel use41.6 l/hourReference
Drawbar performanceReference
Fuel use38.6 l/hourReference
Gear 3-2 used for power test.Reference
Max pull60 kgReference
Gear 1-8 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
