Tractor · 2003Unverified

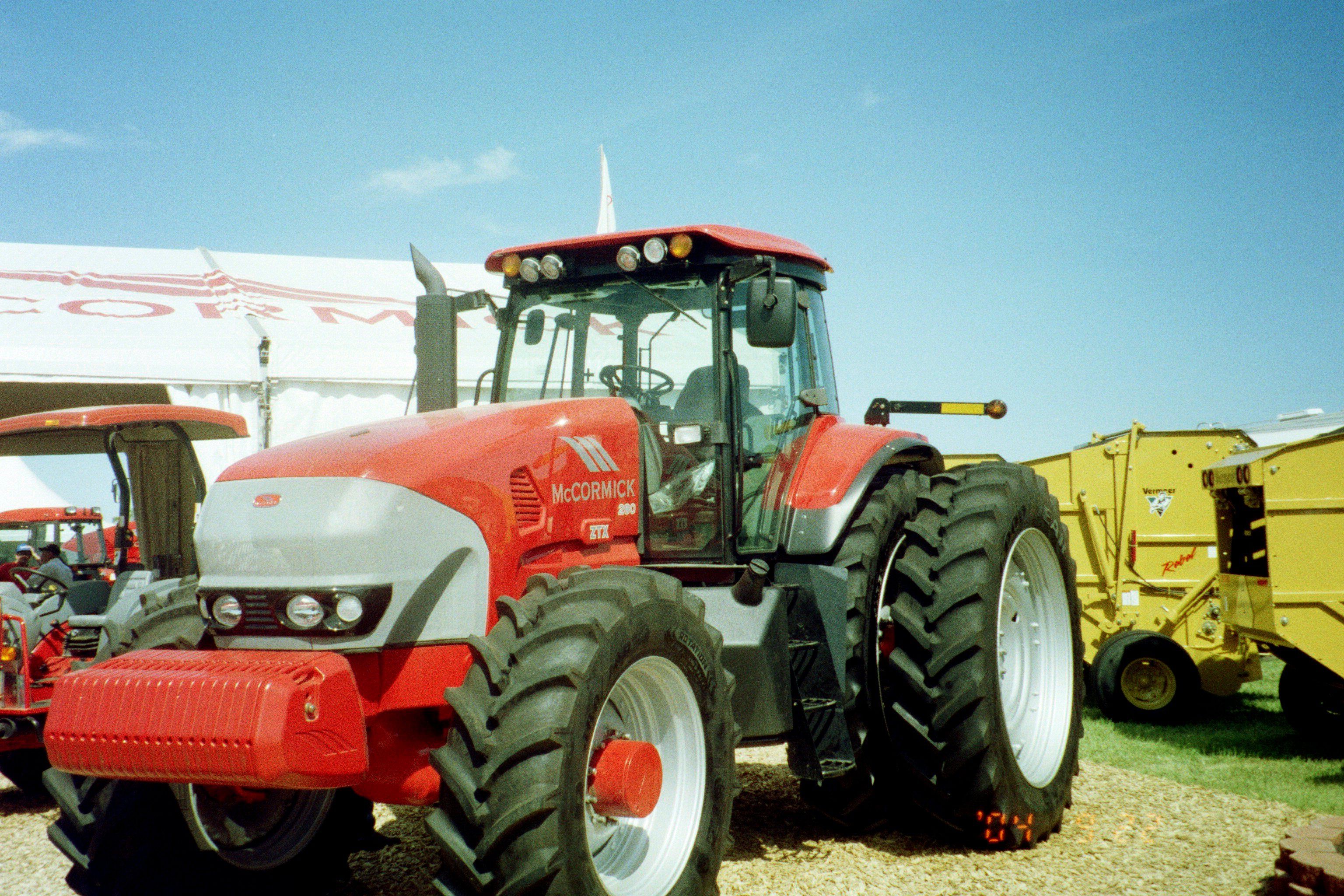

McCormick Intl ZTX280
McCormick Intl ZTX280 — ZTX Series · 280 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
280 hp
Weight
10501 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Row-Crop tractorReference
Built in Doncaster, EnglandReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 8.3L 6-cyl dieselReference
Fuel tank570.0 LReference
Engine208.8 kWReference
Cummins QSCReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power208.8 kWReference
Rated RPM2200Reference
Torque1179.7 NmReference
Torque RPM1200Reference
Starter typeelectricReference
Transmission
18-speed full power shiftReference
36-speed creeperReference
TransmissionFunkReference
Typefull power shiftReference
Gears18 forward and 8 reverseReference
TypecreeperReference
Gears36 forward and 16 reverseReference
PTO & Hydraulics
Typeclosed center load-sensingReference
Pump flow110.1 lpmReference
Pump flow149.9 lpmReference
Rear TypeIIIReference
Rear lift11002 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540E@1400Reference
Engine RPM1000@2090Reference
Dimensions
Wheelbase305 cmReference
Weight10501 kgReference
Front tire600/70R28Reference
Rear tire710/70R42Reference
Standard tires (ag)Front: 600/70R28. Rear: 710/70R42Reference
Length533 cmReference
Height (cab)310 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Speeds
With 710/70R42 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
