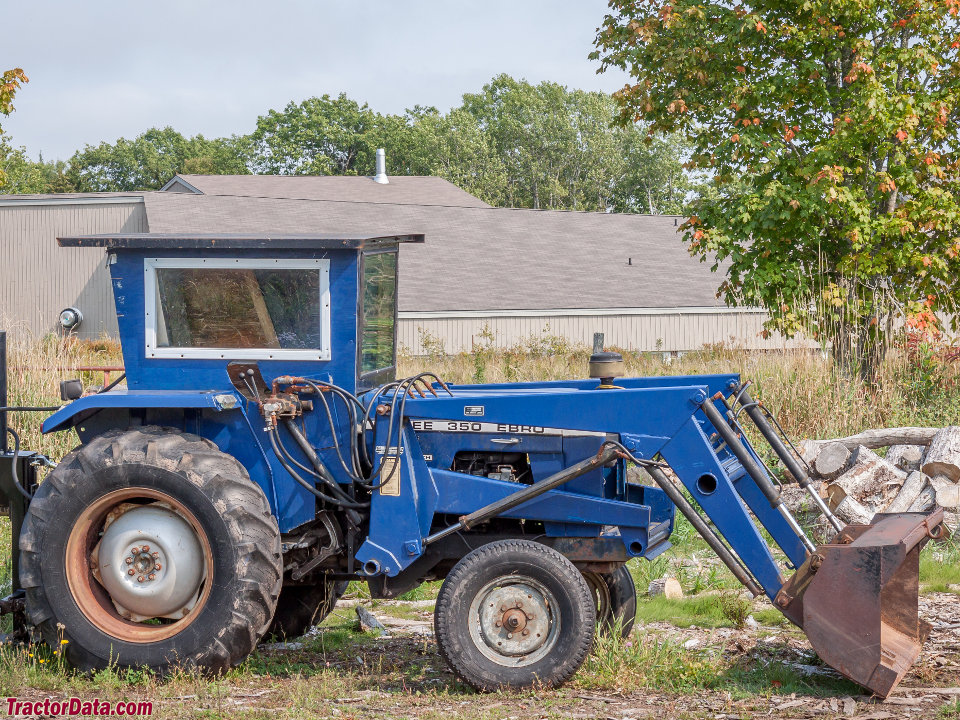

The McKee 350 is a tractor with a rated power of 45 hp, which places it at the lighter end of its class. Under the hood is a 3-cylinder diesel liquid-cooled engine, paired with two-wheel drive with a 8-speed gearbox. It has a listed operating weight of 1829 kg, and it suits operations of up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
1829 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
45 hp
Recorded weight
1829 kg
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMcKeeReference
Utility tractorReference
Built in SpainReference
Two-wheel driveReference
Open operator station.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine35.0 kWReference
Perkins AD3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power35.0 kWReference
Rated RPM2250Reference
Torque166.8 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity11.0 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Oil capacity26.5 LReference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
Rear TypeIIReference
Rear PTO540 (1.375)Reference
Rear PTO Type540:2250Reference
Dimensions
Weight1829 kgReference
Front tire6.00x16Reference
Rear tire13x28Reference
Ag front6.00x16Reference
Ag rear13x28Reference
Ag front5.50-16Reference
Ag rear11-28Reference
Ag rear11-36Reference
Ag rear12-36Reference
Length326 cmReference
Width182 cmReference
Height (steering wheel)151 cmReference
Ground clearance40 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
