Tractor · 1987Unverified

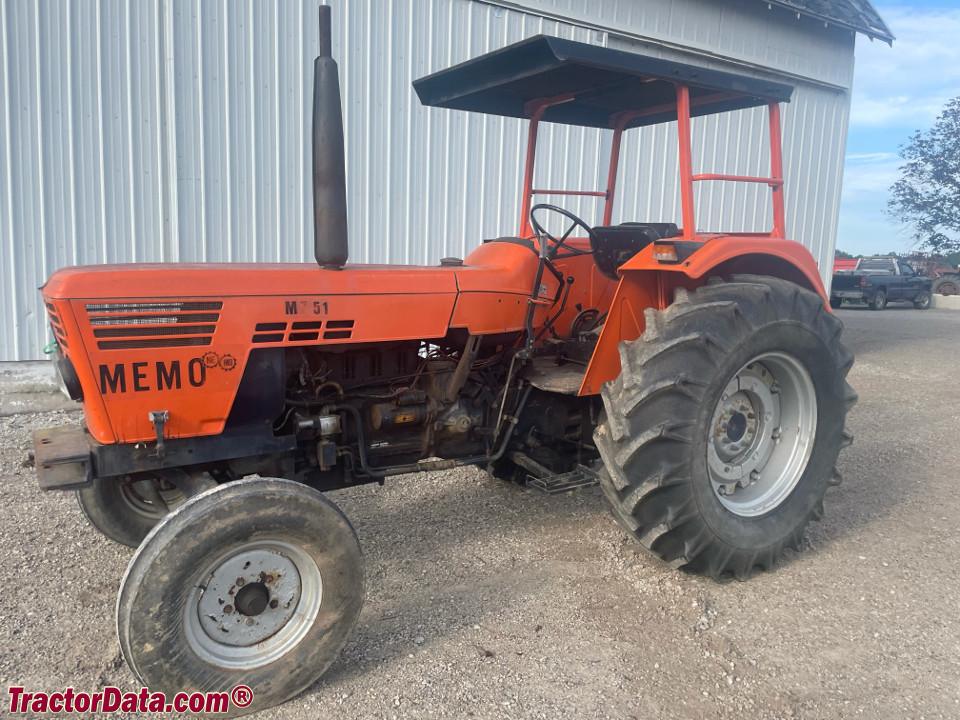

Memo M751
Memo M751 — M75 Series · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Hover a source tag to verify
Overview
ManufacturerMemoReference
Utility tractorReference
Built in YugoslaviaReference
Drive4x2 2WDReference
Drive4x4 4WDReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical drum brakesReference
Trailer brakespneumaticReference
Four-post ROPS.Reference
Variants
M7512WDReference
M751A4WDReference
Engine
Torpedo-Deutz 3.8L 4-cyl dieselReference
Engine54.4 kWReference
Torpedo-Deutz F4L912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power54.4 kWReference
Rated RPM2300Reference
Torque219.9 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
TransmissionTW56.10Reference
TypegearReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure172.4 barReference
Pump flow43.5 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3402 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2025Reference
Engine RPM1000@2166Reference
Dimensions
Wheelbase241 cmReference
Front tire7.5x16Reference
2WD Rear tire18.4x30Reference
2WD Standard tires (ag)Front: 7.5x16. Rear: 18.4x30Reference
4WD Standard tires (ag)Front: 11.2x24. Rear: 18.4x30Reference
Length400 cmReference
Width207 cmReference
Height (steering wheel)182 cmReference
Ballasted weight4998 kgReference
Clearance (front axle)56 cmReference
Clearance (rear axle)62 cmReference
Front tread142 to 202 cmReference
Rear tread151/161/172/182/201 cmReference
Electrical
Charging systemalternatorReference
Charging amps28Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
