Tractor · 1975Unverified

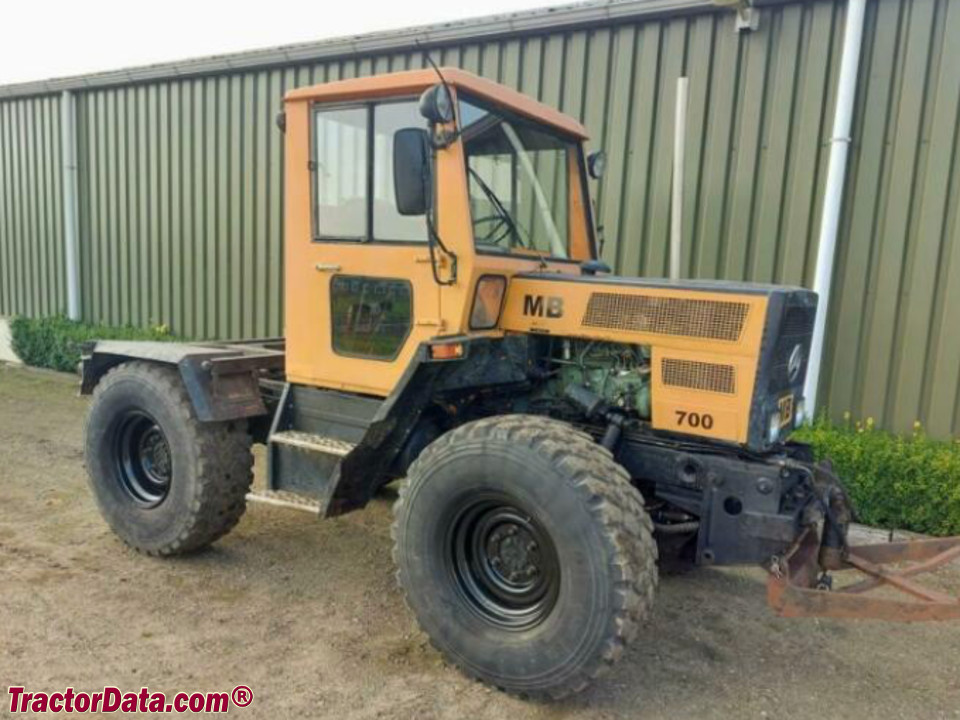

Mercedes-Benz Trac 700
Mercedes-Benz Trac 700 · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Weight
3595 kg
Hover a source tag to verify
Overview
ManufacturerMercedes-BenzReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Disc brakesReference
Cab standard.Reference
Engine
Mercedes-Benz 3.8L 4-cyl dieselReference
Mercedes-Benz 4.0L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine50.7 kWReference
Mercedes-Benz OM 314Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke97 x 128 mmReference
Power48.5 kWReference
Rated RPM2400Reference
Torque216.0 NmReference
Torque RPM1600Reference
Mercedes-Benz OM 364Reference
Displacement4.0 LReference
Bore/Stroke98 x 133 mmReference
Power50.7 kWReference
Torque235.0 NmReference
Torque RPM1800Reference
Transmission
8-speedReference
12-speedReference
Gears8 forward and 6 reverseReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Pump flow40.1 lpmReference
Rear lift3000 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase240 cmReference
Weight3595 kgReference
Front tire12.4-28Reference
Rear tire12.4-28Reference
Ag front12.4-28Reference
Ag rear12.4-28Reference
Length409 cmReference
Height278 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
