Tractor · 1975Unverified

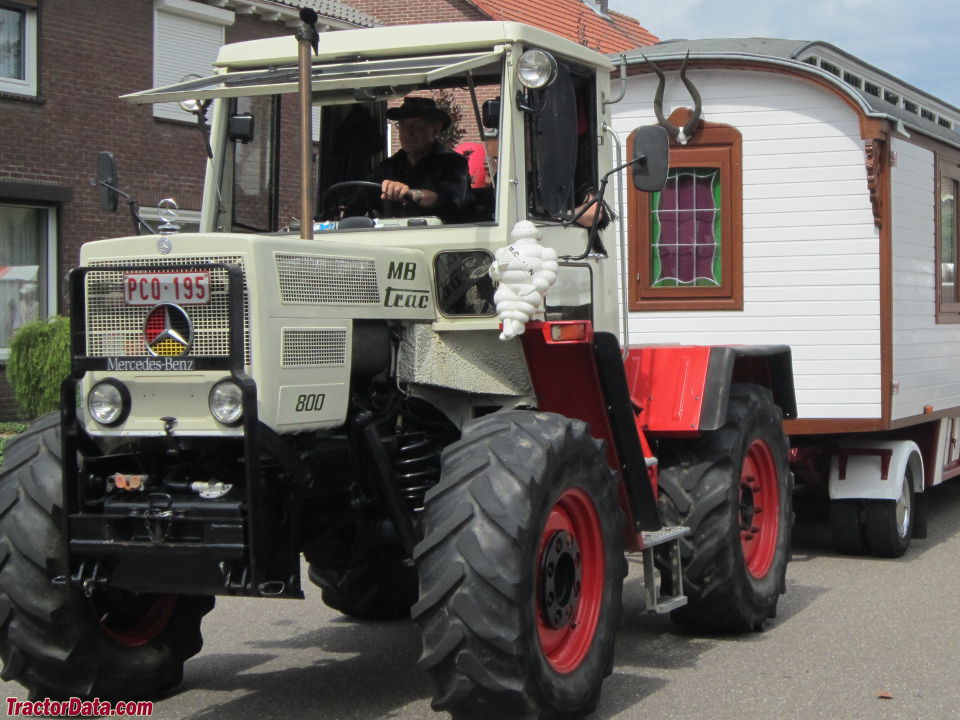

Mercedes-Benz Trac 800
Mercedes-Benz Trac 800 — Model year 1975-19871980-19871987-1991 · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
3950 kg
Hover a source tag to verify
Overview
ManufacturerMercedes-BenzReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Cab standard.Reference
Engine
Mercedes 3.8L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine53.7 kWReference
Mercedes OM314Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke97 x 128 mmReference
Power53.7 kWReference
Rated RPM2550Reference
Torque221.0 NmReference
Torque RPM1600Reference
Transmission
14-speedReference
16-speedReference
Gears14 forward and 8 reverseReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Pump flow40.1 lpmReference
Rear lift3000 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase240 cmReference
Weight3950 kgReference
Front tire14.9-24Reference
Rear tire14.9-24Reference
Ag front14.9-24Reference
Ag rear14.9-24Reference
Length415 cmReference
Height280 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
