Tractor · 1914Unverified

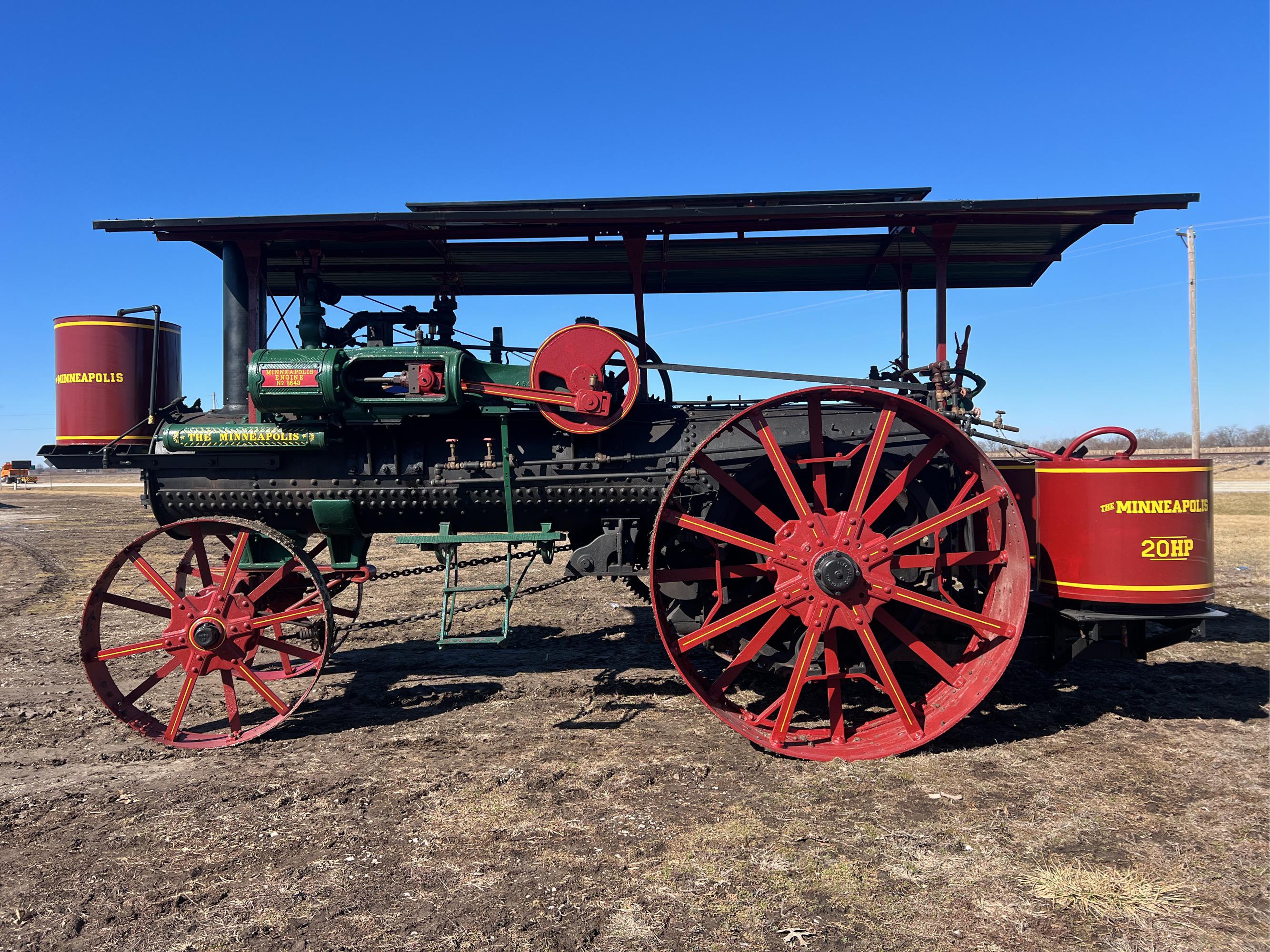

Minneapolis 20-40

Name: Minneapolis 20-40
Brand: Minneapolis

Minneapolis 20-40 — Standard-tread tractor · 20 hp. Reference specifications; pending source verification.

The Minneapolis 20-40 is a tractor rated at 20 hp — making it one of the more compact options in its class. It was manufactured from 1914 to 1919. It is powered by a 4-cylinder liquid-cooled engine, driving through two-wheel drive with a 2-speed gearbox. Listed weight is 5443 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

5443 kg

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

20 hp

Recorded weight

5443 kg

Transmissions

2-speed gear

Production years

1914-1919

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMinneapolis (a part of Minneapolis Threshing Machine Company)Reference

Standard-tread tractorReference

Built in Hopkins, Minnesota, USAReference

Two-wheel driveReference

Manual steeringReference

Engine

Minneapolis Threshing Machine 11.9L 4-cyl keroseneReference

Fuel tank113.6 LReference

Drawbar (claimed)14.9 kWReference

Belt (claimed)29.8 kWReference

Plows4-6 (14-inch)Reference

Minneapolis Threshing MachineReference

keroseneReference

4-cylinderReference

liquid-cooledReference

Displacement11.9 LReference

Bore/Stroke146 x 178 mmReference

Rated RPM650Reference

Starter typehand crankReference

Transmission

2-speed gearReference

TypegearReference

Gears2 forward and 1 reverseReference

Dimensions

Weight5443 kgReference

Rear tire66x20Reference

Ag rear66x20 (steel)Reference

Length424 cmReference

Width243 cmReference

Height280 cmReference

Rear axle87 mmReference

Capacities

Diameter50 cmReference

Width25 cmReference

RPM700Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
